ALU-POWER ALU-POWER

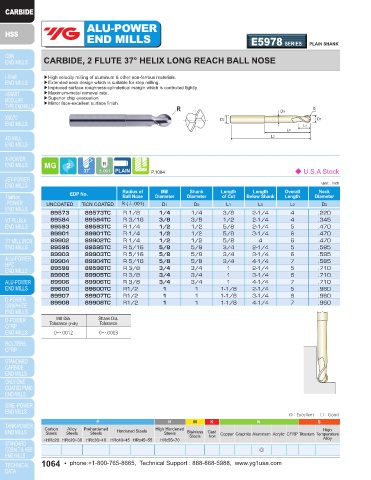

END MILLS E5978 SERIES PLAIN SHANK END MILLS E5975 SERIES PLAIN SHANK

CARBIDE, 2 FLUTE 37° HELIX LONG REACH BALL NOSE CARBIDE, 3 FLUTE 40° HELIX LONG LENGTH BALL NOSE with NECK

▶High velocity milling of aluminum & other non-ferrous materials. ▶Excellent cutting qualities on stainless steel, aluminum, copper.
▶Extended neck design which is suitable for step milling. ▶Increased tool life and higher cutting accuracy.
▶Improved surface roughness-cylinderical margin which is controlled tightly ▶Mirror face-excellent surface finish.
▶Maximum-metal removal rate.
▶Superior chip evacuation.
▶Mirror face-excellent surface finish.
R R R D3 R
↙ D3 ↙
D2 D1 D2 D1
L1 L1
L3
L3
L2
L2

P.1084 ◆ U.S.A Stock P.1085 ◆ U.S.A Stock
Unit : Inch Unit : Inch
Neck
Length
Mill
Length
Mill
Neck
Shank
Shank
EDP No. Radius of Diameter Diameter Length Below Shank Overall Diameter EDP No. Radius of Diameter Diameter Length Below Shank Overall Diameter
of Cut
Ball Nose
Length
Ball Nose
of Cut
Length
UNCOATED TiCN COATED R (±.001) D1 D2 L1 L3 L2 D3 UNCOATED TiCN COATED R (±.0005) D1 D2 L1 L3 L2 D3
89573 89573TC R 1/8 1/4 1/4 3/8 2-1/4 4 .220 38602 38602TC R 3/64 3/32 1/4 1/8 3/16 2-3/8 .090
89584 89584TC R 3/16 3/8 3/8 1/2 2-1/4 4 .345 38601 38601TC R 1/16 1/8 1/4 3/16 1/4 2-3/8 .117
89593 89593TC R 1/4 1/2 1/2 5/8 2-1/4 5 .470 38566 38566TC R 3/32 3/16 1/4 1/4 3/8 2-1/2 .172
89901 89901TC R 1/4 1/2 1/2 5/8 3-1/4 6 .470 38573 38573TC R 1/8 1/4 1/4 3/8 1/2 3 .235
89902 89902TC R 1/4 1/2 1/2 5/8 4 6 .470 38579 38579TC R 5/32 5/16 5/16 1/2 1 3 .289
89595 89595TC R 5/16 5/8 5/8 3/4 2-1/4 5 .585 38584 38584TC R 3/16 3/8 3/8 5/8 1-1/4 3-1/8 .351
89903 89903TC R 5/16 5/8 5/8 3/4 3-1/4 6 .585 38593 38593TC R 1/4 1/2 1/2 3/4 1-3/8 3-1/2 .476
89904 89904TC R 5/16 5/8 5/8 3/4 4-1/4 7 .585 38595 38595TC R 5/16 5/8 5/8 1 1-1/2 4 .601
89598 89598TC R 3/8 3/4 3/4 1 2-1/4 5 .710
89905 89905TC R 3/8 3/4 3/4 1 3-1/4 6 .710 Mill Dia. Shank Dia.
89906 89906TC R 3/8 3/4 3/4 1 4-1/4 7 .710 Tolerance (inch) Tolerance
89600 89600TC R1/2 1 1 1-1/8 2-1/4 5 .960 0~-.0012 0~-.0003
89907 89907TC R1/2 1 1 1-1/8 3-1/4 6 .960
89908 89908TC R1/2 1 1 1-1/8 4-1/4 7 .960
Mill Dia. Shank Dia.
Tolerance (inch) Tolerance
0~-.0012 0~-.0003

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎
