ALU-POWER E5E44 SERIES PLAIN SHANK ALU-POWER

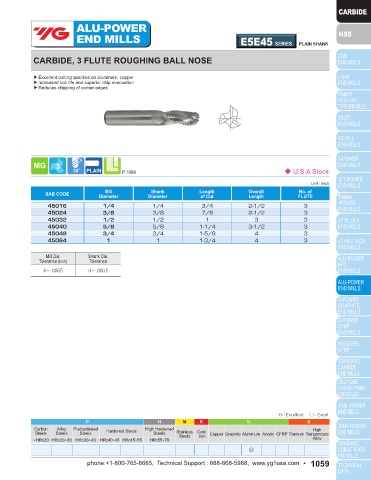

END MILLS E5E98 SERIES PLAIN SHANK END MILLS E5E45 SERIES PLAIN SHANK

CARBIDE, 3 FLUTE ROUGHING / ROUGHING with NECK CARBIDE, 3 FLUTE ROUGHING BALL NOSE

▶ Excellent cutting qualities on aluminum, copper ▶ Excellent cutting qualities on aluminum, copper
▶ Increased tool life and superior chip evacuation ▶ Increased tool life and superior chip evacuation
▶ Reduces chipping of corner edges ▶ Reduces chipping of corner edges

* WITH NECK

P.1088 ◆ U.S.A Stock P.1088 ◆ U.S.A Stock
■ ROUGHING Unit : Inch Unit : Inch
Mill
Shank
No. of
Shank
Mill
EDP No. Diameter Diameter Length Overall SAB CODE Diameter Diameter Length Overall FLUTE
of Cut
Length
of Cut
Length
44016 1/4 1/4 3/4 2-1/2 45016 1/4 1/4 3/4 2-1/2 3
44024 3/8 3/8 7/8 2-1/2 45024 3/8 3/8 7/8 2-1/2 3
44032 1/2 1/2 1 3 45032 1/2 1/2 1 3 3
44040 5/8 5/8 1-1/4 3-1/2 45040 5/8 5/8 1-1/4 3-1/2 3
44048 3/4 3/4 1-5/8 4 45048 3/4 3/4 1-5/8 4 3
44064 1 1 1-3/4 4 45064 1 1 1-3/4 4 3
■ ROUGHING WITH NECK
Mill Dia. Shank Dia.
Mill Shank Length Length Overall Neck Tolerance (inch) Tolerance
EDP No. Diameter Diameter of Cut Below Shank Length Diameter
0~-.0005 0~-.0003
98016 1/4 1/4 3/4 1 2-1/2 .210
98024 3/8 3/8 7/8 1-1/4 3 .335
98032 1/2 1/2 1 1-3/8 3-1/4 .440
98040 5/8 5/8 1-1/4 1-3/4 3-3/4 .565
98048 3/4 3/4 1-5/8 2-1/4 4-1/2 .690
98064 1 1 1-3/4 2-1/2 5 .940
Mill Dia. Shank Dia.
Tolerance (inch) Tolerance
0~-.0005 0~-.0003

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
Iron
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎
