ALU-POWER ALU-POWER

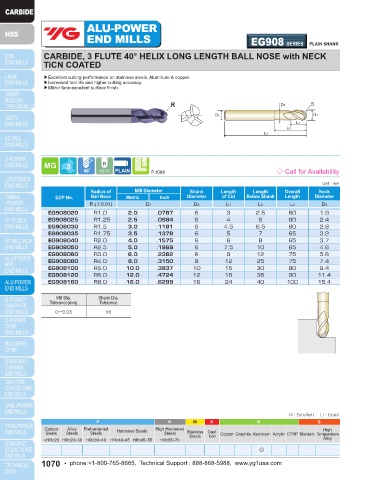

END MILLS EG908 SERIES PLAIN SHANK END MILLS EK191 SERIES FLAT SHANK

CARBIDE, 3 FLUTE 40° HELIX LONG LENGTH BALL NOSE with NECK T15, 3 FLUTE 42° HELIX REGULAR LENGTH ROUGHING for ALUMINUM
TiCN COATED

▶Excellent cutting performance on stainless steels, Aluminum & copper. ▶High performance metal removal in aluminum alloys.
▶Increased tool life and higher cutting accuracy. ▶Corner radius against chipping
▶Mirror face-excellent surface finish.

R D3 R R
↙ ↙
D2 D1
L1
L3
L2

P.1088 ◇ Call for Availability P.1090 ◆ U.S.A Stock
Unit : mm ■ SQUARE Unit : Inch
Radius of Mill Diameter Shank Length Length Overall Neck EDP No. Mill Shank Length Overall
EDP No. Ball Nose Metric Inch Diameter of Cut Below Shank Length Diameter UNCOATED TiCN COATED Diameter Diameter of Cut Length
R (±0.01) D1 D2 L1 L3 L2 D3 66515 66515 PC 1/2 1/2 1-1/4 3-1/4
EG908020 R1.0 2.0 .0787 6 3 2.5 60 1.9 66519 66519 PC 5/8 5/8 1-5/8 3-3/4
EG908025 R1.25 2.5 .0984 6 4 6 60 2.4 66524 66524 PC 3/4 3/4 1-5/8 3-7/8
EG908030 R1.5 3.0 .1181 6 4.5 6.5 60 2.8 66540 66540 PC 1 1 2 4-1/2
EG908035 R1.75 3.5 .1378 6 5 7 65 3.2 66541 66541 PC 1-1/4 1-1/4 2 4-1/2
EG908040 R2.0 4.0 .1575 6 6 8 65 3.7 66542 66542 PC 1-1/2 1-1/4 2 4-1/2
EG908050 R2.5 5.0 .1969 6 7.5 10 65 4.6 ✽ 66543 ✽ 66543 PC 2 2 2 5-3/4
EG908060 R3.0 6.0 .2362 6 9 12 75 5.6 ✽Combination Shank
EG908080 R4.0 8.0 .3150 8 12 25 75 7.4
EG908100 R5.0 10.0 .3937 10 15 30 80 9.4
EG908120 R6.0 12.0 .4724 12 18 36 90 11.4 ◆ U.S.A Stock
EG908160 R8.0 16.0 .6299 16 24 40 100 15.4 P.1090
■ with CORNER RADIUS Unit : Inch
Mill Dia. Shank Dia. EDP No. Corner Radius Mill Shank Length Overall
Tolerance(mm) Tolerance UNCOATED TiCN COATED R Diameter Diameter of Cut Length

0~-0.03 h6 66903 66903 PC R .060 3/4 3/4 1-5/8 3-7/8
66904 66904 PC R .090 3/4 3/4 1-5/8 3-7/8
66905 66905 PC R .120 3/4 3/4 1-5/8 3-7/8
66906 66906 PC R .060 1 1 2 4-1/2
66907 66907 PC R .090 1 1 2 4-1/2
66908 66908 PC R .120 1 1 2 4-1/2
66909 66909 PC R .060 1-1/4 1-1/4 2 4-1/2
66910 66910 PC R .090 1-1/4 1-1/4 2 4-1/2
66911 66911 PC R .120 1-1/4 1-1/4 2 4-1/2
■ The TiN coated, or TiAlN coated is available on your request.

Mill Dia.
Tolerance (inch)
up to 1 0~+.0030
over 1 0~+.0060
◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎
