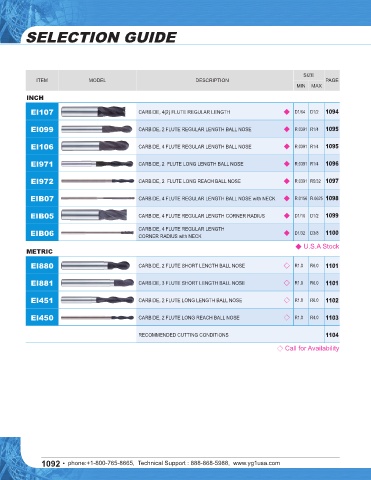

SELECTION GUIDE SOLID CARBIDE D-POWER GRAPHITE END MILLS

◎ : Excellent ◯ : Good
P H M K N S
Carbon Alloy Prehardened High
SIZE Steels Steels Steels Hardened Steels Hardened Stainless Cast High
ITEM MODEL DESCRIPTION PAGE Steels Steels Iron Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Alloy
MIN MAX ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70
INCH

EI107 CARBIDE, 4(2) FLUTE REGULAR LENGTH ◆ D1/64 D1/2 1094 ◎ ○

EI099 CARBIDE, 2 FLUTE REGULAR LENGTH BALL NOSE ◆ R.0391 R1/4 1095 ◎ ○

EI106 CARBIDE, 4 FLUTE REGULAR LENGTH BALL NOSE ◆ R.0391 R1/4 1095 ◎ ○

EI971 CARBIDE, 2 FLUTE LONG LENGTH BALL NOSE ◆ R.0391 R1/4 1096 ◎ ○

EI972 CARBIDE, 2 FLUTE LONG REACH BALL NOSE ◆ R.0391 R5/32 1097 ◎ ○

EIB07 CARBIDE, 4 FLUTE REGULAR LENGTH BALL NOSE with NECK ◆ R.0156 R.0625 1098 ◎ ○

EIB05 CARBIDE, 4 FLUTE REGULAR LENGTH CORNER RADIUS ◆ D1/16 D1/2 1099 ◎ ○

EIB06 CARBIDE, 4 FLUTE REGULAR LENGTH ◆ D1/32 D3/8 1100 ◎ ○
CORNER RADIUS with NECK
◆ U.S.A Stock
METRIC

EI880 CARBIDE, 2 FLUTE SHORT LENGTH BALL NOSE ◇ R1.0 R6.0 1101 ◎ ○

EI881 CARBIDE, 3 FLUTE SHORT LENGTH BALL NOSE ◇ R1.0 R6.0 1101 ◎ ○

EI451 CARBIDE, 2 FLUTE LONG LENGTH BALL NOSE ◇ R1.0 R6.0 1102 ◎ ○

EI450 CARBIDE, 2 FLUTE LONG REACH BALL NOSE ◇ R1.0 R4.0 1103 ◎ ○

RECOMMENDED CUTTING CONDITIONS 1104
◇ Call for Availability
