D-POWER GRAPHITE D-POWER GRAPHITE

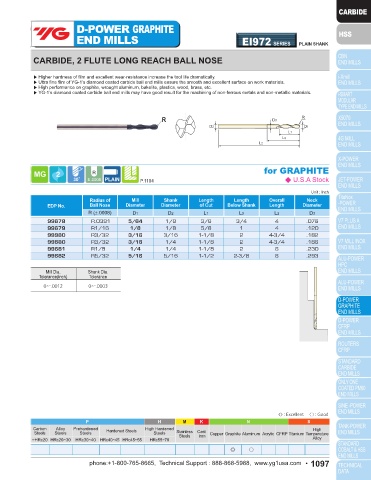

END MILLS EI971 SERIES PLAIN SHANK END MILLS EI972 SERIES PLAIN SHANK
CARBIDE, 2 FLUTE LONG LENGTH BALL NOSE CARBIDE, 2 FLUTE LONG REACH BALL NOSE
▶ Higher hardness of film and excellent wear-resistance increase the tool life dramatically. ▶ Higher hardness of film and excellent wear-resistance increase the tool life dramatically.
▶ Ultra fine film of YG-1’s diamond coated carbide ball end mills ensure the smooth and excellent surface on work materials. ▶ Ultra fine film of YG-1’s diamond coated carbide ball end mills ensure the smooth and excellent surface on work materials.
▶ High performance on graphite, wrought aluminum, bakelite, plastics, wood, brass, etc. ▶ High performance on graphite, wrought aluminum, bakelite, plastics, wood, brass, etc.
▶ YG-1’s diamond coated carbide ball end mills may have good result for the machining of non-ferrous metals and non-metallic materials. ▶ YG-1’s diamond coated carbide ball end mills may have good result for the machining of non-ferrous metals and non-metallic materials.
R D3 R R R
↙ ↙ D3
D2 D1 D2 D1
L1 L1
L3 L3
L2 L2
for GRAPHITE for GRAPHITE
P.1104 ◆ U.S.A Stock P.1104 ◆ U.S.A Stock
Unit : Inch Unit : Inch
Radius of Mill Shank Length Length Overall Neck Radius of Mill Shank Length Length Overall Neck
EDP No. Ball Nose Diameter Diameter of Cut Below Shank Length Diameter EDP No. Ball Nose Diameter Diameter of Cut Below Shank Length Diameter
R (±.0008) D1 D2 L1 L3 L2 D3 R (±.0008) D1 D2 L1 L3 L2 D3
99671 R.0391 5/64 1/8 3/8 3/4 3-1/4 .076 99678 R.0391 5/64 1/8 3/8 3/4 4 .076
99672 R 1/16 1/8 1/8 5/8 1 3-1/4 .120 99679 R1/16 1/8 1/8 5/8 1 4 .120
99973 R 3/32 3/16 3/16 1-1/8 2 4 .182 99980 R3/32 3/16 3/16 1-1/8 2 4-3/4 .182
99673 R 3/32 3/16 1/4 1-1/8 2 4 .185 99680 R3/32 3/16 1/4 1-1/8 2 4-3/4 .186
99674 R 1/8 1/4 1/4 1-1/8 2 4 .230 99681 R1/8 1/4 1/4 1-1/8 2 6 .230
99675 R 5/32 5/16 5/16 1-1/2 2-3/8 4-1/2 .293 99682 R5/32 5/16 5/16 1-1/2 2-3/8 6 .293
99676 R 3/16 3/8 3/8 2 2-3/4 4-3/4 .355
99677 R1/4 1/2 1/2 2-1/8 3 5-1/8 .480 Mill Dia. Shank Dia.
Tolerance(inch) Tolerance
Mill Dia. Shank Dia. 0~-.0012 0~-.0003
Tolerance(inch) Tolerance
0~-.0012 0~-.0003
◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ○ ◎ ○
