D-POWER GRAPHITE D-POWER GRAPHITE

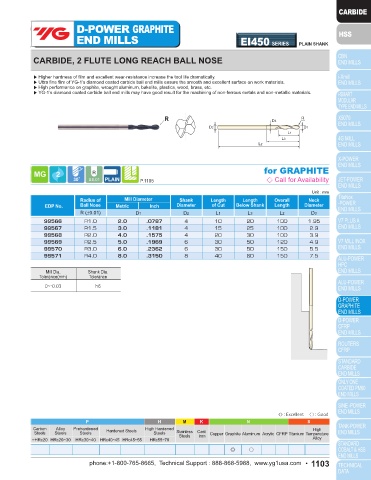

END MILLS EI451 SERIES PLAIN SHANK END MILLS EI450 SERIES PLAIN SHANK
CARBIDE, 2 FLUTE LONG LENGTH BALL NOSE CARBIDE, 2 FLUTE LONG REACH BALL NOSE
▶ Higher hardness of film and excellent wear-resistance increase the tool life dramatically. ▶ Higher hardness of film and excellent wear-resistance increase the tool life dramatically.
▶ Ultra fine film of YG-1’s diamond coated carbide ball end mills ensure the smooth and excellent surface on work materials. ▶ Ultra fine film of YG-1’s diamond coated carbide ball end mills ensure the smooth and excellent surface on work materials.
▶ High performance on graphite, wrought aluminum, bakelite, plastics, wood, brass, etc. ▶ High performance on graphite, wrought aluminum, bakelite, plastics, wood, brass, etc.
▶ YG-1’s diamond coated carbide ball end mills may have good result for the machining of non-ferrous metals and non-metallic materials. ▶ YG-1’s diamond coated carbide ball end mills may have good result for the machining of non-ferrous metals and non-metallic materials.
R R
↙ ↙ R D3
D2 D1
L1
L3
L2
for GRAPHITE for GRAPHITE
P.1105 ◇ Call for Availability P.1105 ◇ Call for Availability
Unit : mm Unit : mm
Radius of Mill Diameter Shank Length Length Overall Neck Radius of Mill Diameter Shank Length Length Overall Neck
EDP No. Ball Nose Metric Inch Diameter of Cut Below Shank Length Diameter EDP No. Ball Nose Metric Inch Diameter of Cut Below Shank Length Diameter
R (±0.01) D1 D2 L1 L3 L2 D3 R (±0.01) D1 D2 L1 L3 L2 D3
99558 R1.0 2.0 .0787 4 10 20 80 1.95 99566 R1.0 2.0 .0787 4 10 20 100 1.95
99559 R1.5 3.0 .1181 4 15 25 80 2.9 99567 R1.5 3.0 .1181 4 15 25 100 2.9
99560 R2.0 4.0 .1575 4 20 30 80 3.9 99568 R2.0 4.0 .1575 4 20 30 100 3.9
99561 R2.5 5.0 .1969 6 30 50 100 4.9 99569 R2.5 5.0 .1969 6 30 50 120 4.9
99562 R3.0 6.0 .2362 6 30 50 100 5.5 99570 R3.0 6.0 .2362 6 30 50 150 5.5
99563 R4.0 8.0 .3150 8 40 60 110 7.5 99571 R4.0 8.0 .3150 8 40 60 150 7.5
99564 R5.0 10.0 .3937 10 50 70 120 9.5
99565 R6.0 12.0 .4724 12 55 75 130 11.5 Mill Dia. Shank Dia.
Tolerance(mm) Tolerance
Mill Dia. Shank Dia. 0~-0.03 h6
Tolerance(mm) Tolerance
0~-0.03 h6
◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ○ ◎ ○
