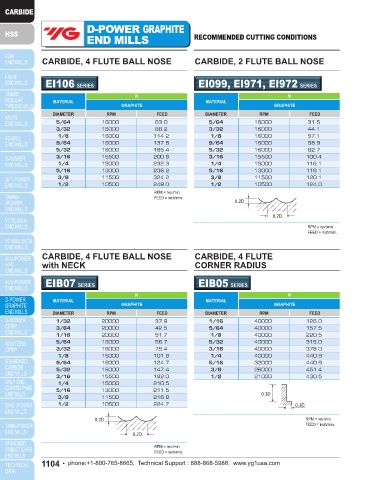

D-POWER GRAPHITE D-POWER GRAPHITE

END MILLS RECOMMENDED CUTTING CONDITIONS END MILLS RECOMMENDED CUTTING CONDITIONS

CARBIDE, 4 FLUTE
CARBIDE, 4 FLUTE BALL NOSE CARBIDE, 2 FLUTE BALL NOSE CORNER RADIUS with NECK CARBIDE, 2 FLUTE BALL NOSE

EI106 SERIES EI099, EI971, EI972 SERIES EIB06 SERIES EI880, EI451, EI450 SERIES
N N N N
MATERIAL MATERIAL MATERIAL MATERIAL
GRAPHITE GRAPHITE GRAPHITE GRAPHITE
DIAMETER RPM FEED DIAMETER RPM FEED DIAMETER RPM FEED DIAMETER RPM FEED
5/64 16000 63.0 5/64 16000 31.5 1/32 40000 44.1 2.0 16000 31.5
3/32 16000 88.2 3/32 16000 44.1 3/64 40000 66.1 2.5 16000 44.1
1/8 16000 114.2 1/8 16000 57.1 1/16 40000 88.2 3.0 16000 57.1
9/64 16000 137.8 9/64 16000 58.9 5/64 40000 110.2 3.5 16000 68.9
5/32 16000 165.4 5/32 16000 82.7 1/8 40000 154.3 4.0 16000 82.7
3/16 15500 200.8 3/16 15500 100.4 5/32 40000 220.5 5.0 15500 100.4
1/4 15000 232.3 1/4 15000 116.1 3/16 40000 264.6 6.0 15000 116.1
5/16 13000 236.2 5/16 13000 118.1 1/4 40000 308.7 8.0 13000 118.1
3/8 11500 324.2 3/8 11500 120.1 5/16 32000 308.7 10.0 11500 120.1
1/2 10500 248.0 1/2 10500 124.0 3/89 26000 316.1 12.0 10500 124.0
RPM = rev./min. 1/2 21000 301.4
FEED = inch/min.
0.2D 0.2D
0.3D
0.2D 0.2D
0.3D
RPM = rev./min. RPM = rev./min.
FEED = inch/min. RPM = rev./min. FEED = inch/min.
FEED = inch/min.

CARBIDE, 4 FLUTE BALL NOSE CARBIDE, 4 FLUTE CARBIDE, 3 FLUTE BALL NOSE CARBIDE, 4 FLUTE
with NECK CORNER RADIUS

EIB07 SERIES EIB05 SERIES EI881 SERIES EI107 SERIES
N N N N
MATERIAL MATERIAL MATERIAL MATERIAL
GRAPHITE GRAPHITE GRAPHITE GRAPHITE
DIAMETER RPM FEED DIAMETER RPM FEED DIAMETER RPM FEED DIAMETER RPM FEED
1/32 20000 37.9 1/16 40000 126.0 2.0 16000 47.2 1/64 40000 31.5
3/64 20000 42.5 5/64 40000 157.5 2.5 16000 66.9 1/8 40000 63.0
1/16 20000 51.7 1/8 40000 220.5 3.0 16000 84.7 3/16 40000 126.0
5/64 16000 56.7 5/32 40000 315.0 3.5 16000 104.3 1/4 40000 189.0
3/32 16000 79.4 3/16 40000 378.0 4.0 16000 122.1 5/16 32000 196.9
1/8 16000 101.8 1/4 40000 440.9 5.0 15500 149.6 3/8 26000 204.7
9/64 16000 124.7 5/16 32000 440.9 6.0 15000 175.2 1/2 20000 189.0
5/32 16000 147.4 3/8 26000 451.4 8.0 13000 177.2
3/16 15500 182.0 1/2 21000 430.5 10.0 11500 181.1
1/4 15000 210.5 12.0 10500 187.0 0.3D
5/16 13000 211.5 0.3D 0.3D
3/8 11500 216.8 0.2D
1/2 10500 224.7 0.3D RPM = rev./min.
FEED = inch/min.
0.2D
0.2D RPM = rev./min.
FEED = inch/min. RPM = rev./min.
FEED = inch/min.
0.2D
RPM = rev./min.
FEED = inch/min.
