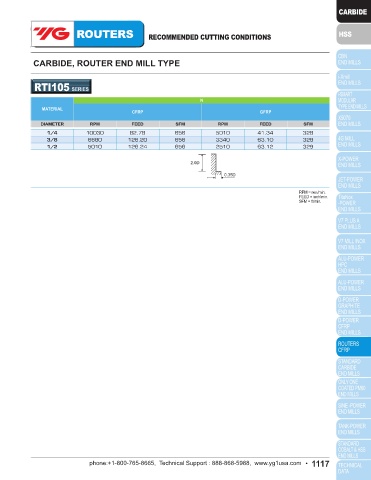

ROUTERS ROUTERS RECOMMENDED CUTTING CONDITIONS
RTI105 SERIES PLAIN SHANK
CARBIDE, ROUTER END MILL TYPE CARBIDE, ROUTER END MILL TYPE
▶ For composite materials - CFRP, GFRP.
▶ Reduce delamination and burrs.
▶ Diamond coating with excellent abrasion resistance RTI105 SERIES
N
MATERIAL
CFRP GFRP
DIAMETER RPM FEED SFM RPM FEED SFM
1/4 10030 82.78 656 5010 41.34 328
3/8 6680 126.20 656 3340 63.10 328
1/2 5010 126.24 656 2510 63.12 329
2.0D
0.35D
P.1117
Unit : Inch RPM = rev./min.
Mill Shank Length Overall FEED = inch/min.
EDP No. Diameter Diameter of Cut Length SFM = ft/min.
D1 D2 L1 L2
RTI105016 1/4 1/4 3/4 2-1/4
RTI105024 3/8 3/8 1-1/4 3-1/2
RTI105032 1/2 1/2 1-1/2 4
Mill Dia. Shank Dia.
Tolerance(inch) Tolerance
-.0008~-.003 h6
