Page 1133 - YG 2019

CARBIDE CARBIDE

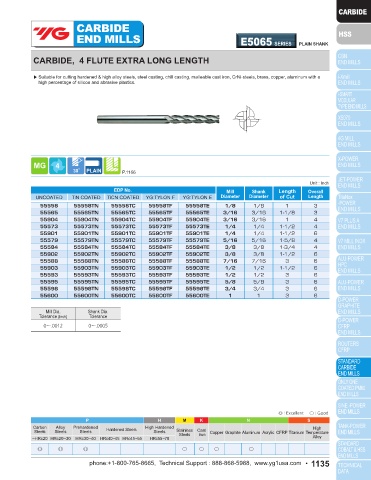

END MILLS UGMGF59 SERIES PLAIN SHANK END MILLS E5065 SERIES PLAIN SHANK

CARBIDE, 4 FLUTE EXTRA LONG LENGTH CARBIDE, 4 FLUTE EXTRA LONG LENGTH

▶ Suitable for cutting hardened & high alloy steels, steel casting, chill casting, malleable cast iron, CrNi-steels, brass, copper, aluminum with a ▶ Suitable for cutting hardened & high alloy steels, steel casting, chill casting, malleable cast iron, CrNi-steels, brass, copper, aluminum with a
high percentage of silicon and abrasive plastics. high percentage of silicon and abrasive plastics.

P.1163 P.1166
Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall
EDP No. Mill Shank Length Overall Diameter Diameter of Cut Length
Diameter Diameter of Cut Length UNCOATED TiN COATED TiCN COATED YG:TYLON F YG:TYLON E
Y-COATED 55558 55558TN 55558TC 55558TF 55558TE 1/8 1/8 1 3
UGMGF59008 1/8 1/8 1 3 55565 55565TN 55565TC 55565TF 55565TE 3/16 3/16 1-1/8 3
UGMGF59012 3/16 3/16 1-1/8 3 55904 55904TN 55904TC 55904TF 55904TE 3/16 3/16 1 4
UGMGF59016 1/4 1/4 1-1/2 4 55573 55573TN 55573TC 55573TF 55573TE 1/4 1/4 1-1/2 4
UGMGF59020 5/16 5/16 1-5/8 4 55901 55901TN 55901TC 55901TF 55901TE 1/4 1/4 1-1/2 6
UGMGF59024 3/8 3/8 1-3/4 4 55579 55579TN 55579TC 55579TF 55579TE 5/16 5/16 1-5/8 4
UGMGF59028 7/16 7/16 3 6 55584 55584TN 55584TC 55584TF 55584TE 3/8 3/8 1-3/4 4
UGMGF59032 1/2 1/2 3 6 55902 55902TN 55902TC 55902TF 55902TE 3/8 3/8 1-1/2 6
UGMGF59040 5/8 5/8 3 6 55588 55588TN 55588TC 55588TF 55588TE 7/16 7/16 3 6
UGMGF59048 3/4 3/4 3 6 55903 55903TN 55903TC 55903TF 55903TE 1/2 1/2 1-1/2 6
UGMGF59064 1 1 3 6 55593 55593TN 55593TC 55593TF 55593TE 1/2 1/2 3 6
UGMGF59901 1/4 1/4 1-1/2 6 55595 55595TN 55595TC 55595TF 55595TE 5/8 5/8 3 6
UGMGF59902 3/8 3/8 1-1/2 6 55598 55598TN 55598TC 55598TF 55598TE 3/4 3/4 3 6
UGMGF59903 1/2 1/2 1-1/2 6 55600 55600TN 55600TC 55600TF 55600TE 1 1 3 6
UGMGF59904 3/16 3/16 1 4
Mill Dia. Shank Dia.
Tolerance (inch) Tolerance
Mill Dia. Shank Dia.
Tolerance (inch) Tolerance 0~-.0012 0~-.0005
0~-.0012 0~-.0005

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ◎ ○ ○ ○ ○ ◎ ◎ ◎ ○ ○ ○ ○
