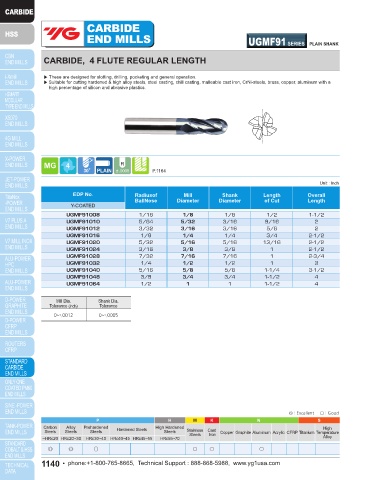

CARBIDE CARBIDE E5014 SERIES PLAIN SHANK
END MILLS UGMF91 SERIES PLAIN SHANK END MILLS E5060 SERIES PLAIN SHANK

CARBIDE, 4 FLUTE REGULAR LENGTH CARBIDE, 2&4 FLUTE LONG LENGTH BALL NOSE

▶ These are designed for slotting, drilling, pocketing and general operation. ▶ Suitable for cutting hardened & high alloy steels, steel casting, chill casting, malleable cast iron, CrNi-steels, brass, copper, aluminum with a
▶ Suitable for cutting hardened & high alloy steels, steel casting, chill casting, malleable cast iron, CrNi-steels, brass, copper, aluminum with a high percentage of silicon and abrasive plastics.
high percentage of silicon and abrasive plastics.

R
↙

R
↙

P.1164 P.167, 1168

Unit : Inch E5014(2 FLUTE) Series Unit : Inch
EDP No. Radiusof Mill Shank Length Overall EDP No. Radius of Mill Shank Length Overall
Ball Nose
BallNose Diameter Diameter of Cut Length Diameter Diameter of Cut Length
Y-COATED UNCOATED TiN COATED TiCN COATED YG:TYLON F YG:TYLON E R (±.0008)
UGMF91008 1/16 1/8 1/8 1/2 1-1/2 50558 50558TN 50558TC 50558TF 50558TE R1/16 1/8 1/8 3/4 2-1/4
UGMF91010 5/64 5/32 3/16 9/16 2 50565 50565TN 50565TC 50565TF 50565TE R3/32 3/16 3/16 3/4 2-1/2
UGMF91012 3/32 3/16 3/16 5/8 2 50573 50573TN 50573TC 50573TF 50573TE R1/8 1/4 1/4 1-1/8 3
UGMF91016 1/8 1/4 1/4 3/4 2-1/2 50579 50579TN 50579TC 50579TF 50579TE R5/32 5/16 5/16 1-1/8 3
UGMF91020 5/32 5/16 5/16 13/16 2-1/2 50584 50584TN 50584TC 50584TF 50584TE R3/16 3/8 3/8 1-1/8 3
UGMF91024 3/16 3/8 3/8 1 2-1/2 50588 50588TN 50588TC 50588TF 50588TE R7/32 7/16 7/16 2 4
UGMF91028 7/32 7/16 7/16 1 2-3/4 50593 50593TN 50593TC 50593TF 50593TE R1/4 1/2 1/2 2 4
UGMF91032 1/4 1/2 1/2 1 3 50595 50595TN 50595TC 50595TF 50595TE R5/16 5/8 5/8 2-1/4 5
UGMF91040 5/16 5/8 5/8 1-1/4 3-1/2 50598 50598TN 50598TC 50598TF 50598TE R3/8 3/4 3/4 2-1/4 5
UGMF91048 3/8 3/4 3/4 1-1/2 4 50600 50600TN 50600TC 50600TF 50600TE R1/2 1 1 2-1/4 5
UGMF91064 1/2 1 1 1-1/2 4 E5060(4 FLUTE) Series Unit : Inch
EDP No. Radius of Mill Shank Length Overall
Ball Nose
Mill Dia. Shank Dia. Diameter Diameter of Cut Length
Tolerance (inch) Tolerance UNCOATED TiN COATED TiCN COATED YG:TYLON F YG:TYLON E R (±.0008)
0~-.0012 0~-.0005 51558 51558TN 51558TC 51558TF 51558TE R1/16 1/8 1/8 3/4 2-1/4
51565 51565TN 51565TC 51565TF 51565TE R3/32 3/16 3/16 3/4 2-1/2
51573 51573TN 51573TC 51573TF 51573TE R1/8 1/4 1/4 1-1/8 3
51579 51579TN 51579TC 51579TF 51579TE R5/32 5/16 5/16 1-1/8 3
51584 51584TN 51584TC 51584TF 51584TE R3/16 3/8 3/8 1-1/8 3
51588 51588TN 51588TC 51588TF 51588TE R7/32 7/16 7/16 2 4
51593 51593TN 51593TC 51593TF 51593TE R1/4 1/2 1/2 2 4
51595 51595TN 51595TC 51595TF 51595TE R5/16 5/8 5/8 2-1/4 5
51598 51598TN 51598TC 51598TF 51598TE R3/8 3/4 3/4 2-1/4 5
51600 51600TN 51600TC 51600TF 51600TE R1/2 1 1 2-1/4 5

Mill Dia. Shank Dia.
Tolerance (inch) Tolerance
0~-.0012 0~-.0005
◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ○ ○ ○ ○ ◎ ◎ ◎ ○ ○ ○ ○
