Page 1136 - YG 2019

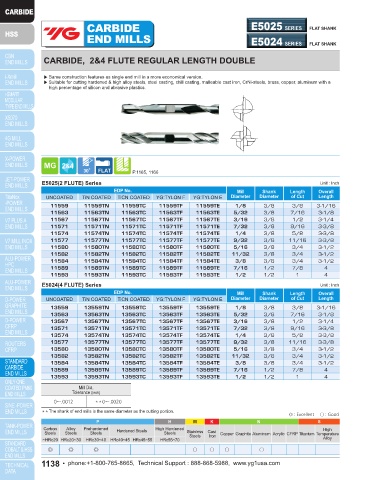

CARBIDE E5025 SERIES FLAT SHANK CARBIDE E5249 SERIES PLAIN SHANK
END MILLS E5024 SERIES FLAT SHANK END MILLS E5250 SERIES PLAIN SHANK

CARBIDE, 2&4 FLUTE REGULAR LENGTH DOUBLE CARBIDE, 2&4 FLUTE REGULAR LENGTH BALL NOSE

▶ Same construction features as single end mill in a more economical version. ▶Suitable for cutting hardened & high alloy steels, steel casting, chill casting, malleable cast iron, CrNi-steels, brass, copper, aluminum with a
▶ Suitable for cutting hardened & high alloy steels, steel casting, chill casting, malleable cast iron, CrNi-steels, brass, copper, aluminum with a high percentage of silicon and abrasive plastics.
high percentage of silicon and abrasive plastics.
R
↙

R
↙

P.1165, 1166 P.1167, 1168
E5025(2 FLUTE) Series Unit : Inch E5249(2 FLUTE) Series Unit : Inch
EDP No. Mill Shank Length Overall EDP No. Radius of Mill Length Overall
Shank
UNCOATED TiN COATED TiCN COATED YG:TYLON F YG:TYLON E Diameter Diameter of Cut Length Ball Nose Diameter Diameter of Cut Length
UNCOATED TiN COATED TiCN COATED YG:TYLON F YG:TYLON E R (±.0008)
11559 11559TN 11559TC 11559TF 11559TE 1/8 3/8 3/8 3-1/16
11563 11563TN 11563TC 11563TF 11563TE 5/32 3/8 7/16 3-1/8 41558 41558TN 41558TC 41558TF 41558TE R1/16 1/8 1/8 1/2 1-1/2
11567 11567TN 11567TC 11567TF 11567TE 3/16 3/8 1/2 3-1/4 41561 41561TN 41561TC 41561TF 41561TE R5/64 5/32 3/16 9/16 2
41565
3/16
41565TN
41565TE
41565TC
41565TF
2
11571 11571TN 11571TC 11571TF 11571TE 7/32 3/8 9/16 3-3/8 41570 41570TN 41570TC 41570TF 41570TE R3/32 7/32 3/16 5/8 2-1/2
1/4
R7/64
5/8
11574 11574TN 11574TC 11574TF 11574TE 1/4 3/8 5/8 3-3/8 41573 41573TN 41573TC 41573TF 41573TE R1/8 1/4 1/4 3/4 2-1/2
11577 11577TN 11577TC 11577TF 11577TE 9/32 3/8 11/16 3-3/8 41579 41579TN 41579TC 41579TF 41579TE R5/32 5/16 5/16 13/16 2-1/2
11580 11580TN 11580TC 11580TF 11580TE 5/16 3/8 3/4 3-1/2 41584 41584TN 41584TC 41584TF 41584TE R3/16 3/8 3/8 1 2-1/2
11582 11582TN 11582TC 11582TF 11582TE 11/32 3/8 3/4 3-1/2 41588 41588TN 41588TC 41588TF 41588TE R7/32 7/16 7/16 1 2-3/4
11584 11584TN 11584TC 11584TF 11584TE 3/8 3/8 3/4 3-1/2 41593 41593TN 41593TC 41593TF 41593TE R1/4 1/2 1/2 1 3
11589 11589TN 11589TC 11589TF 11589TE 7/16 1/2 7/8 4 41595 41595TN 41595TC 41595TF 41595TE R5/16 5/8 5/8 1-1/4 3-1/2
11593 11593TN 11593TC 11593TF 11593TE 1/2 1/2 1 4 41598 41598TN 41598TC 41598TF 41598TE R3/8 3/4 3/4 1-1/2 4
E5024(4 FLUTE) Series Unit : Inch 41600 41600TN 41600TC 41600TF 41600TE R1/2 1 1 1-1/2 4
EDP No. Mill Shank Length Overall E5250(4 FLUTE) Series Unit : Inch
UNCOATED TiN COATED TiCN COATED YG:TYLON F YG:TYLON E Diameter Diameter of Cut Length EDP No. Radius of Mill Shank Length Overall
Ball Nose
13559 13559TN 13559TC 13559TF 13559TE 1/8 3/8 3/8 3-1/16 UNCOATED TiN COATED TiCN COATED YG:TYLON F YG:TYLON E R (±.0008) Diameter Diameter of Cut Length
13563 13563TN 13563TC 13563TF 13563TE 5/32 3/8 7/16 3-1/8 43558 43558TN 43558TC 43558TF 43558TE R1/16 1/8 1/8 1/2 1-1/2
13567 13567TN 13567TC 13567TF 13567TE 3/16 3/8 1/2 3-1/4 43561 43561TN 43561TC 43561TF 43561TE R5/64 5/32 3/16 9/16 2
13571 13571TN 13571TC 13571TF 13571TE 7/32 3/8 9/16 3-3/8 43565 43565TN 43565TC 43565TF 43565TE R3/32 3/16 3/16 5/8 2
13574 13574TN 13574TC 13574TF 13574TE 1/4 3/8 5/8 3-3/8 43570 43570TN 43570TC 43570TF 43570TE R7/64 7/32 1/4 5/8 2-1/2
13577 13577TN 13577TC 13577TF 13577TE 9/32 3/8 11/16 3-3/8 43573 43573TN 43573TC 43573TF 43573TE R1/8 1/4 1/4 3/4 2-1/2
13580 13580TN 13580TC 13580TF 13580TE 5/16 3/8 3/4 3-1/2 43579 43579TN 43579TC 43579TF 43579TE R5/32 5/16 5/16 13/16 2-1/2
13582 13582TN 13582TC 13582TF 13582TE 11/32 3/8 3/4 3-1/2 43584 43584TN 43584TC 43584TF 43584TE R3/16 3/8 3/8 1 2-1/2
13584 13584TN 13584TC 13584TF 13584TE 3/8 3/8 3/4 3-1/2 43588 43588TN 43588TC 43588TF 43588TE R7/32 7/16 7/16 1 2-3/4
13589 13589TN 13589TC 13589TF 13589TE 7/16 1/2 7/8 4 43593 43593TN 43593TC 43593TF 43593TE R1/4 1/2 1/2 1 3
13593 13593TN 13593TC 13593TF 13593TE 1/2 1/2 1 4 43595 43595TN 43595TC 43595TF 43595TE R5/16 5/8 5/8 1-1/4 3-1/2
43598 43598TN 43598TC 43598TF 43598TE R3/8 3/4 3/4 1-1/2 4
Mill Dia. 43600 43600TN 43600TC 43600TF 43600TE R1/2 1 1 1-1/2 4
Tolerance (inch)
Mill Dia. Shank Dia.
0~-.0012 *＊0~-.0020
Tolerance (inch) Tolerance
*＊The shank of end mills is the same diameter as the cutting portion. 0~-.0012 0~-.0005 ◎ : Excellent ◯ : Good
◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened Hardened Steels High Hardened Stainless Cast High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Steels Steels Iron Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎ ◎ ○ ○ ○ ○ ◎ ◎ ◎ ○ ○ ○ ○
