Page 1158 - YG 2019

CARBIDE CARBIDE

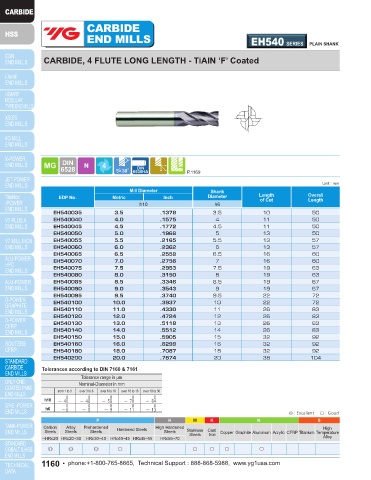

END MILLS EH540 SERIES PLAIN SHANK END MILLS EH882 SERIES PLAIN SHANK

CARBIDE, 4 FLUTE LONG LENGTH - TiAlN ‘F’ Coated CARBIDE, 3 FLUTE 35° HELIX CORNER RADIUS - TiAlN ‘F’ Coated

R
↙

N N
P.1169
Unit : mm Unit : mm
Mill Diameter Shank Corner Mill Diameter Shank
EDP No. Metric Inch Diameter Length Overall EDP No. Radius Metric Inch Diameter Length Overall
Length
of Cut
Length
of Cut
h10 h6 R h10 h6
EH540035 3.5 .1378 3.5 10 50 EH882030 0.20~0.25 3.0 .1181 3 4 38
EH540040 4.0 .1575 4 11 50 EH882040 0.20~0.25 4.0 .1575 6 5 54
EH540045 4.5 .1772 4.5 11 50 EH882050 0.20~0.25 5.0 .1969 6 6 54
EH540050 5.0 .1969 5 13 50 EH882060 0.40~0.50 6.0 .2362 6 7 54
EH540055 5.5 .2165 5.5 13 57 EH882080 0.40~0.50 8.0 .3150 8 9 58
EH540060 6.0 .2362 6 13 57 EH882100 0.40~0.50 10.0 .3937 10 11 66
EH540065 6.5 .2559 6.5 16 60 EH882120 0.75~0.85 12.0 .4724 12 12 73
EH540070 7.0 .2756 7 16 60 EH882160 0.75~0.85 16.0 .6299 16 16 82
EH540075 7.5 .2953 7.5 19 63 EH882200 0.75~0.85 20.0 .7874 20 20 92
EH540080 8.0 .3150 8 19 63 TiN & TiCN-COATING are available on your request.
EH540085 8.5 .3346 8.5 19 67
EH540090 9.0 .3543 9 19 67 Tolerances according to DIN 7160 & 7161
EH540095 9.5 .3740 9.5 22 72 Tolerance range in µm 150
EH540100 10.0 .3937 10 22 72 Nominal-Diameter in mm
EH540110 11.0 .4330 11 26 83 from 1 to 3 over 3 to 6 over 6 to 10 over 10 to 18 over 18 to 30
EH540120 12.0 .4724 12 26 83 h10 0 0 0 0 0 120
EH540130 13.0 .5118 13 26 83 — 40 0 — 48 — 58 — 70 — 84 Low Carbon & Ductile Steels & Cast lron
0
0
0
0
EH540140 14.0 .5512 14 26 83 h6 — 6 — 8 — 9 — 11 — 13 90 Alloy Steels & Stainless Steels
EH540150 15.0 .5905 15 32 92 SFM Austenitic & PH Stainless Steels
EH540160 16.0 .6299 16 32 92 60
EH540180 18.0 .7087 18 32 92
EH540200 20.0 .7874 20 38 104 TiAlN FEED CHART 30 Titanium Alloys
Unit : inch Nickel Based Alloys & Die & Mold Steels
Tolerances according to DIN 7160 & 7161 Mill Mill
Tolerance range in µm Diameter Feed / Tooth Diameter Feed / Tooth 15
Nominal-Diameter in mm 3 .0035 ~ .0070 10 .0018 ~ .0040
f rom 1 to 3 over 3 to 6 over 6 to 10 over 10 to 18 over 18 to 30 5 .0050 ~ .0025 12 .0025 ~ .0050 5 10 15 20 25 30 35 HRc
0 0 0 0 0
h10 — 40 — 48 — 58 — 70 — 84 6 .0012 ~ .0030 16 .0030 ~ .0060 MATERIAL HARDNESS
0 0 0 0 0 8 .0018 ~ .0035 20 .0035 ~ .0070
h6 — 6 — 8 — 9 — 11 — 13
◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ◎ ○ ○ ○ ○ ○ ◎ ◎ ◎ ○ ○ ◎ ◎
