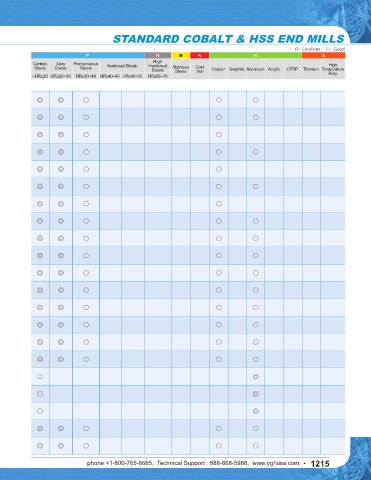

SELECTION GUIDE STANDARD COBALT & HSS END MILLS

◎ : Excellent ◯ : Good
P H M K N S
High
SIZE Carbon Alloy Prehardened Hardened Steels Hardened High
ITEM MODEL DESCRIPTION PAGE Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
MIN MAX ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
INCH
E2039
E2042 HSSCo8, MULTI FLUTE MEDIUM LENGTH CENTER CUTTING D1 D2 1242 ◎ ◎ ○ ○ ○
E2040
E1040 HSSCo8 & HSS, 4 FLUTE LONG LENGTH CENTER CUTTING D1/4 D1-1/2 1243 ◎ ◎ ○ ○ ○
E2162 HSSCo8 & HSS, 6 FLUTE LONG LENGTH CENTER CUTTING ◎ ◎ ○ ○
E1162 D1/2 D2 1243
E2041
E1041 HSSCo8 & HSS, 4 FLUTE EXTRA LONG LENGTH CENTER CUTTING D1/4 D1-1/4 1244 ◎ ◎ ○ ○ ○
E2175 HSSCo8 & HSS, 6 FLUTE EXTRA LONG LENGTH CENTER CUTTING ◎ ◎ ○ ○
E1175 D1/2 D2 1244
E2053 HSSCo8 & HSS, 4 FLUTE REGULAR LENGTH DOUBLE ◎ ◎ ○ ○ ○
E1053 CENTER CUTTING D1/8 D1 1245
E2100 HSSCo8 & HSS, 6 FLUTE REGULAR with COMBINATION 2˝ SHANK
E1100 CENTER CUTTING D2 D2 1247 ◎ ◎ ○ ○
E2001 HSSCo8 & HSS, 2 FLUTE MINIATURE STUB LENGTH DOUBLE ◎ ◎ ○ ○ ○
E1001 D1/32 D3/16 1248
E2003
E1003 HSSCo8 & HSS, 2 FLUTE MINIATURE REGULAR LENGTH DOUBLE D1/32 D3/16 1249 ◎ ◎ ○ ○ ○
E2005 ◎ ◎ ○ ○ ○
E1005 HSSCo8 & HSS, 2 FLUTE MINIATURE LONG LENGTH DOUBLE D1/16 D3/16 1250
E2002 ◎ ◎ ○ ○ ○
E1002 HSSCo8 & HSS, 4 FLUTE MINIATURE STUB LENGTH DOUBLE D1/16 D3/16 1251
E2004
E1004 HSSCo8 & HSS, 4 FLUTE MINIATURE REGULAR LENGTH DOUBLE D1/16 D3/16 1252 ◎ ◎ ○ ○ ○
E2006 ◎ ◎ ○ ○ ○
E1006 HSSCo8 & HSS, 4 FLUTE MINIATURE LONG LENGTH DOUBLE D1/16 D3/16 1253
E2008 HSSCo8 & HSS, 2 FLUTE MINIATURE STUB LENGTH BALL NOSE
E1008 DOUBLE R1/32 R3/32 1254 ◎ ◎ ○ ○ ○
E2013 HSSCo8 & HSS, 2 FLUTE MINIATURE REGULAR LENGTH BALL NOSE ◎ ◎ ○ ○ ○
E1013 DOUBLE R1/64 R3/32 1255
E2015 HSSCo8 & HSS, 2 FLUTE MINIATURE LONG LENGTH BALL NOSE ◎ ◎ ○ ○ ○
E1015 DOUBLE R1/32 R3/32 1256
E1070 HSS, 2 FLUTE 42° HELIX REGULAR & MEDIUM LENGTH D1/4 D2 1257 ○ ◎
for ALUMINUM

E1071 HSS, 2 FLUTE 42° HELIX LONG LENGTH for ALUMINUM D1/4 D2 1258 ○ ◎

E1072 HSS, 2 FLUTE 42° HELIX EXTRA LONG LENGTH for ALUMINUM D1/4 D1-1/2 1258 ○ ◎

E2086 HSSCo8, MULTI FLUTE STUB LENGTH FINE PITCH ROUGHING D1/4 D1 1259 ◎ ◎ ○ ○ ○
CENTER CUTTING
E2085 HSSCo8, MULTI FLUTE REGULAR LENGTH FINE PITCH ROUGHING D1/4 D1 1260 ◎ ◎ ○ ○ ○
CENTER CUTTING
