COBALT & HSS E2030 SERIES 8% COBALT (M42) COBALT & HSS E2080 SERIES 8% COBALT (M42)
FLAT SHANK
FLAT SHANK
END MILLS E1030 SERIES HSS (M2) END MILLS E1080 SERIES HSS (M2)
FLAT SHANK
FLAT SHANK

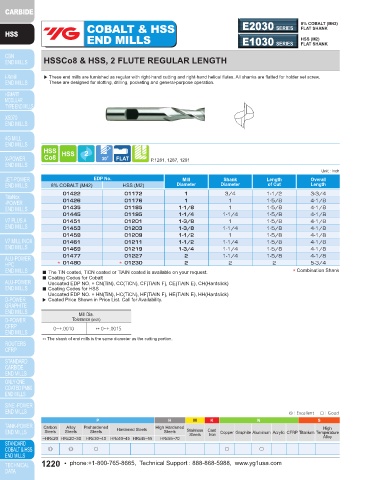

HSSCo8 & HSS, 2 FLUTE REGULAR LENGTH HSSCo8 & HSS, 2 FLUTE LONG LENGTH

▶ These end mills are furnished as regular with right-hand cutting and right-hand helical flutes. All shanks are flatted for holder set screw. ▶Longer flute length than E2030 type and allows deeper cutting.
These are designed for slotting, drilling, pocketing and general-purpose operation.

P.1281, 1287, 1291 P.1281, 1287, 1291
Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall EDP No. Mill Shank Length Overall
8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length 8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length
01422 01172 1 3/4 1-1/2 3-3/4 02297 02047 1/4 3/8 1-1/4 3-1/8
01426 01176 1 1 1-5/8 4-1/8 02301 02051 5/16 3/8 1-3/8 3-1/8
01435 01185 1-1/8 1 1-5/8 4-1/8 02305 02055 3/8 3/8 1-1/2 3-1/4
01445 01195 1-1/4 1-1/4 1-5/8 4-1/8 02321 02071 1/2 1/2 2 4
01451 01201 1-3/8 1 1-5/8 4-1/8 02337 02087 5/8 5/8 2 4-1/8
01453 01203 1-3/8 1-1/4 1-5/8 4-1/8 02359 02109 3/4 3/4 2-1/4 4-1/2
01459 01209 1-1/2 1 1-5/8 4-1/8 02394 02144 7/8 7/8 2-1/2 4-3/4
01461 01211 1-1/2 1-1/4 1-5/8 4-1/8 02426 02176 1 1 3 5-1/2
01469 01219 1-3/4 1-1/4 1-5/8 4-1/8 02435 02185 1-1/8 1 3 5-1/2
01477 01227 2 1-1/4 1-5/8 4-1/8 02443 02193 1-1/4 1 3 5-1/2
＊ 01480 ＊ 01230 2 2 2 5-3/4 02445 02195 1-1/4 1-1/4 3 5-1/2
■ The TiN coated, TiCN coated or TiAIN coated is available on your request. ＊Combination Shank 02461 02211 1-1/2 1-1/4 3 5-1/2
■ Coating Codes for Cobalt 02469 02219 1-3/4 1-1/4 3 5-1/2
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick) 02477 02227 2 1-1/4 3 5-1/2
■ Coating Codes for HSS ＊ 02482 ＊ 02232 2 2 3 6-3/4
Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability. ■ The TiN coated, TiCN coated or TiAIN coated is available on your request. ＊Combination Shank
■ Coating Codes for Cobalt
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
Mill Dia. ■ Coating Codes for HSS
Tolerance (inch) Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
0~+.0010 0~+.0015 ▶ Coated Price Shown in Price List. Call for Availability.
The shank of end mills is the same diameter as the cutting portion. Mill Dia.
Tolerance (inch)
0~+.0010 0~+.0015
The shank of end mills is the same diameter as the cutting portion.

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ○ ○ ○ ◎ ◎ ○ ○ ○
