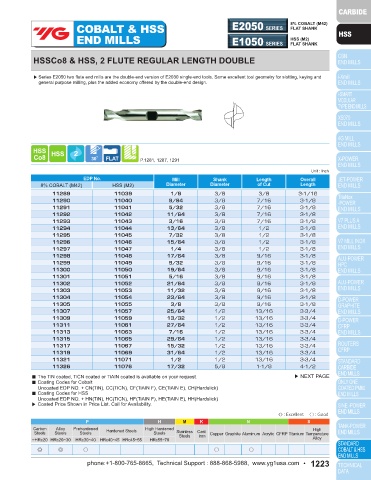

COBALT & HSS E2033 SERIES 8% COBALT (M42) COBALT & HSS E2050 SERIES 8% COBALT (M42)
FLAT SHANK
FLAT SHANK
END MILLS E1033 SERIES HSS (M2) END MILLS E1050 SERIES HSS (M2)
FLAT SHANK
FLAT SHANK
HSSCo8 & HSS, 2 FLUTE EXTENDED LENGTH HSSCo8 & HSS, 2 FLUTE REGULAR LENGTH DOUBLE

▶Provided with the longest flute length and suitable for high accuracy machining of deep step. ▶ Series E2050 two flute end mills are the double-end version of E2030 single-end tools. Same excellent tool geometry for slotting, keying and
general purpose milling, plus the added economy offered by the double-end design.

P.1281, 1287, 1291 P.1281, 1287, 1291
Unit : Inch Unit : Inch
EDP No. Mill Shank Length Length Overall EDP No. Mill Shank Length Overall
8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Below Shank Length 8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length
03289 03039 1/8 3/8 3/8 - 2-3/8 11289 11039 1/8 3/8 3/8 3-1/16
03293 03043 3/16 3/8 1/2 1-1/8 2-11/16 11290 11040 9/64 3/8 7/16 3-1/8
03297 03047 1/4 3/8 5/8 1-1/2 3-1/16 11291 11041 5/32 3/8 7/16 3-1/8
03301 03051 5/16 3/8 3/4 1-3/4 3-5/16 11292 11042 11/64 3/8 7/16 3-1/8
03305 03055 3/8 3/8 3/4 1-3/4 3-5/16 11293 11043 3/16 3/8 7/16 3-1/8
03321 03071 1/2 1/2 1 2-7/32 4 11294 11044 13/64 3/8 1/2 3-1/8
03337 03087 5/8 5/8 1-3/8 2-23/32 4-5/8 11295 11045 7/32 3/8 1/2 3-1/8
03359 03109 3/4 3/4 1-5/8 3-11/32 5-3/8 11296 11046 15/64 3/8 1/2 3-1/8
03394 03144 7/8 7/8 2 4 6 11297 11047 1/4 3/8 1/2 3-1/8
03426 03176 1 1 2-1/2 4-31/32 7-1/4 11298 11048 17/64 3/8 9/16 3-1/8
03445 03195 1-1/4 1-1/4 3 4-31/32 7-1/4 11299 11049 9/32 3/8 9/16 3-1/8
11300 11050 19/64 3/8 9/16 3-1/8
■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
■ Coating Codes for Cobalt 11301 11051 5/16 3/8 9/16 3-1/8
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick) 11302 11052 21/64 3/8 9/16 3-1/8
■ Coating Codes for HSS 11303 11053 11/32 3/8 9/16 3-1/8
Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability. 11304 11054 23/64 3/8 9/16 3-1/8
11305 11055 3/8 3/8 9/16 3-1/8
Mill Dia. 11307 11057 25/64 1/2 13/16 3-3/4
Tolerance (inch) 11309 11059 13/32 1/2 13/16 3-3/4
11311 11061 27/64 1/2 13/16 3-3/4
0~+.0010 0~+.0015
11313 11063 7/16 1/2 13/16 3-3/4
The shank of end mills is the same diameter as the cutting portion. 11315 11065 29/64 1/2 13/16 3-3/4
11317 11067 15/32 1/2 13/16 3-3/4
11319 11069 31/64 1/2 13/16 3-3/4
11321 11071 1/2 1/2 13/16 3-3/4
11326 11076 17/32 5/8 1-1/8 4-1/2
■ The TiN coated, TiCN coated or TiAIN coated is available on your request. ▶ NEXT PAGE
■ Coating Codes for Cobalt
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
■ Coating Codes for HSS
Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability.
◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ○ ○ ○ ◎ ◎ ○ ○ ○
