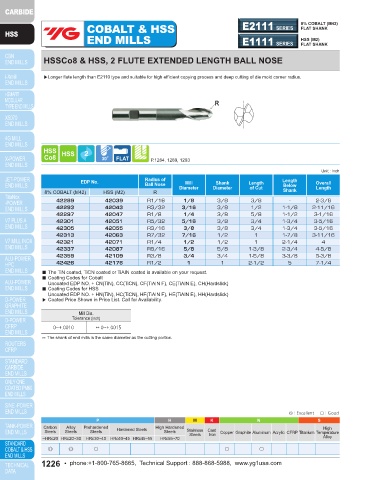

COBALT & HSS E2111 SERIES 8% COBALT (M42) COBALT & HSS E2112 SERIES 8% COBALT (M42)
FLAT SHANK
FLAT SHANK
END MILLS E1111 SERIES HSS (M2) END MILLS E1112 SERIES HSS (M2)
FLAT SHANK
FLAT SHANK
HSSCo8 & HSS, 2 FLUTE EXTENDED LENGTH BALL NOSE HSSCo8 & HSS, 2 FLUTE REGULAR LENGTH BALL NOSE DOUBLE

▶Longer flute length than E2110 type and suitable for high efficient copying process and deep cutting of die mold corner radius. ▶ Same construction features as E2110 end mill in a more economical version. Removes more material per grind. Machine ground notch assures
positive anchorage in tool holder.

R
↙ ↙ R

P.1284, 1289, 1293 P.1284, 1289, 1293
Unit : Inch Unit : Inch

EDP No. Radius of Mill Shank Length Length Overall EDP No. Radius of Mill Shank Length Overall
Ball Nose
Ball Nose
Below
8% COBALT (M42) HSS (M2) R Diameter Diameter of Cut Shank Length 8% COBALT (M42) HSS (M2) R Diameter Diameter of Cut Length
42289 42039 R1/16 1/8 3/8 3/8 - 2-3/8 45289 45039 R1/16 1/8 3/8 3/8 3-1/16
42293 42043 R3/32 3/16 3/8 1/2 1-1/8 2-11/16 45293 45043 R3/32 3/16 3/8 7/16 3-1/8
42297 42047 R1/8 1/4 3/8 5/8 1-1/2 3-1/16 45297 45047 R1/8 1/4 3/8 1/2 3-1/8
42301 42051 R5/32 5/16 3/8 3/4 1-3/4 3-5/16 45301 45051 R5/32 5/16 3/8 9/16 3-1/8
42305 42055 R3/16 3/8 3/8 3/4 1-3/4 3-5/16 45305 45055 R3/16 3/8 3/8 9/16 3-1/8
42313 42063 R7/32 7/16 1/2 1 1-7/8 3-11/16 45313 45063 R7/32 7/16 1/2 13/16 3-3/4
42321 42071 R1/4 1/2 1/2 1 2-1/4 4 45321 45071 R1/4 1/2 1/2 13/16 3-3/4
42337 42087 R5/16 5/8 5/8 1-3/8 2-3/4 4-5/8 45337 45087 R5/16 5/8 5/8 1-1/8 4-1/2
42359 42109 R3/8 3/4 3/4 1-5/8 3-3/8 5-3/8 45359 45109 R3/8 3/4 3/4 1-5/16 5
42426 42176 R1/2 1 1 2-1/2 5 7-1/4 45426 45176 R1/2 1 1 1-5/8 5-7/8
■ The TiN coated, TiCN coated or TiAIN coated is available on your request. ■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
■ Coating Codes for Cobalt ■ Coating Codes for Cobalt
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick) Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
■ Coating Codes for HSS ■ Coating Codes for HSS
Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick) Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability. ▶ Coated Price Shown in Price List. Call for Availability.

Mill Dia. Mill Dia.
Tolerance (inch) Tolerance (inch)
0~+.0010 0~+.0015 0~—.0010 0~—.0020
The shank of end mills is the same diameter as the cutting portion. The shank of end mills is the same diameter as the cutting portion.

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ○ ○ ○ ◎ ◎ ○ ○ ○
