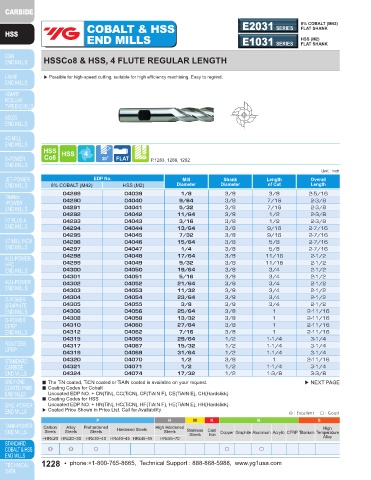

Page 1226 - YG 2019

COBALT & HSS E2031 SERIES 8% COBALT (M42) COBALT & HSS E2031 SERIES 8% COBALT (M42)
FLAT SHANK
FLAT SHANK
END MILLS E1031 SERIES HSS (M2) END MILLS E1031 SERIES HSS (M2)
FLAT SHANK
FLAT SHANK
HSSCo8 & HSS, 4 FLUTE REGULAR LENGTH HSSCo8 & HSS, 4 FLUTE REGULAR LENGTH

▶ Possible for high-speed cutting, suitable for high efficiency machining. Easy to regrind. ▶ Possible for high-speed cutting, suitable for high efficiency machining. Easy to regrind.

P.1283, 1288, 1292 P.1283, 1288, 1292
Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall EDP No. Mill Shank Length Overall
8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length 8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length
04289 04039 1/8 3/8 3/8 2-5/16 04328 04078 9/16 1/2 1-3/8 3-3/8
04290 04040 9/64 3/8 7/16 2-3/8 04332 04082 19/32 1/2 1-3/8 3-3/8
04291 04041 5/32 3/8 7/16 2-3/8 04336 04086 5/8 1/2 1-3/8 3-3/8
04292 04042 11/64 3/8 1/2 2-3/8 04337 04087 5/8 5/8 1-5/8 3-3/4
04293 04043 3/16 3/8 1/2 2-3/8 04340 04090 21/32 1/2 1-5/8 3-5/8
04294 04044 13/64 3/8 9/16 2-7/16 04348 04098 11/16 5/8 1-5/8 3-3/4
04295 04045 7/32 3/8 9/16 2-7/16 04352 04102 23/32 1/2 1-5/8 3-5/8
04296 04046 15/64 3/8 5/8 2-7/16 04357 04107 3/4 1/2 1-5/8 3-5/8
04297 04047 1/4 3/8 5/8 2-7/16 04358 04108 3/4 5/8 1-5/8 3-3/4
04298 04048 17/64 3/8 11/16 2-1/2 04359 04109 3/4 3/4 1-5/8 3-7/8
04299 04049 9/32 3/8 11/16 2-1/2 04364 04114 25/32 5/8 1-7/8 4
04300 04050 19/64 3/8 3/4 2-1/2 04375 04125 13/16 3/4 1-7/8 4-1/8
04301 04051 5/16 3/8 3/4 2-1/2 04380 04130 27/32 5/8 1-7/8 4
04302 04052 21/64 3/8 3/4 2-1/2 04391 04141 7/8 3/4 1-7/8 4-1/8
04303 04053 11/32 3/8 3/4 2-1/2 04394 04144 7/8 7/8 1-7/8 4-1/8
04304 04054 23/64 3/8 3/4 2-1/2 04399 04149 29/32 3/4 1-7/8 4-1/8
04305 04055 3/8 3/8 3/4 2-1/2 04407 04157 15/16 3/4 1-7/8 4-1/8
04306 04056 25/64 3/8 1 2-11/16 04414 04164 31/32 3/4 1-7/8 4-1/8
04308 04058 13/32 3/8 1 2-11/16 04420 04170 1 5/8 1-7/8 4
04310 04060 27/64 3/8 1 2-11/16 04422 04172 1 3/4 1-7/8 4-1/8
04312 04062 7/16 3/8 1 2-11/16 04426 04176 1 1 2 4-1/2
04315 04065 29/64 1/2 1-1/4 3-1/4 ■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
04317 04067 15/32 1/2 1-1/4 3-1/4 ■ Coating Codes for Cobalt
04319 04069 31/64 1/2 1-1/4 3-1/4 Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
04320 04070 1/2 3/8 1 2-11/16 ■ Coating Codes for HSS
04321 04071 1/2 1/2 1-1/4 3-1/4 Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability.
04324 04074 17/32 1/2 1-3/8 3-3/8
■ The TiN coated, TiCN coated or TiAIN coated is available on your request. ▶ NEXT PAGE Mill Dia.
■ Coating Codes for Cobalt Tolerance (inch)
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
■ Coating Codes for HSS 0~+.0010 0~+.0015
Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability. The shank of end mills is the same diameter as the cutting portion.
◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ○ ○ ○ ◎ ◎ ○ ○ ○
1228 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 1229
