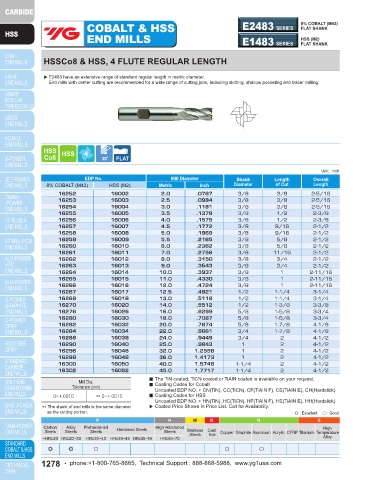

Page 1276 - YG 2019

COBALT & HSS E2483 SERIES 8% COBALT (M42) COBALT & HSS
FLAT SHANK
END MILLS E1483 SERIES HSS (M2) END MILLS
FLAT SHANK

HSSCo8 & HSS, 4 FLUTE REGULAR LENGTH END MILL SET SERIES

▶ E2483 have an extensive range of standard regular length in metric diameter. ▶ Various range of sizes in these end mill sets gives you plenty of opportunities to reduce manufacturing costs and improve productivity.
End mills with center cutting are recommended for a wide range of cutting jobs, including slotting, shallow pocketing and tracer milling.

SET OF MINIATURE, (3/16″ SHANK) DOUBLE
EDP No. ITEM No. EDP No. ITEM No. Type Length Mill No.of
8% COBALT (M42) HSS (M2) Diameter Flute
1/32, 3/64, 1/16, 5/64,
Sq. END
96002 CMR211 96001 MR211 REGULAR 3/32, 7/64, 1/8, 9/64, 2
(11PCS.)
5/32, 11/64, 3/16
1/16, 5/64, 3/32, 7/64,
Sq. END
96004 CMR409 96003 MR409 REGULAR 1/8, 9/64, 5/32, 11/64, 4
(9PCS.)
3/16
1/32, 3/64, 1/16, 5/64,
Sq. END
Unit : Inch 96006 CMS211 96005 MS211 STUB 3/32, 7/64, 1/8, 9/64, 2
EDP No. Mill Diameter Shank Length Overall (11PCS.) 5/32, 11/64, 3/16
8% COBALT (M42) HSS (M2) Metric Inch Diameter of Cut Length Sq. END 1/16, 5/64, 3/32, 7/64,
16252 16002 2.0 .0787 3/8 3/8 2-5/16 96008 CMS409 96007 MS409 (9PCS.) STUB 1/8, 9/64, 5/32, 11/64, 4
16253 16003 2.5 .0984 3/8 3/8 2-5/16 3/16
16254 16004 3.0 .1181 3/8 3/8 2-5/16 ■ The TiN coated, TiCN coated or TiAIN coated is available on your request. WITH TRANSPARENT PLASTIC CASE
16255 16005 3.5 .1378 3/8 1/2 2-3/8 ■ Coating Codes for Cobalt
16256 16006 4.0 .1575 3/8 1/2 2-3/8 Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
16257 16007 4.5 .1772 3/8 9/16 2-1/2 ■ Coating Codes for HSS
16258 16008 5.0 .1969 3/8 9/16 2-1/2 Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability.
16259 16009 5.5 .2165 3/8 5/8 2-1/2
16260 16010 6.0 .2362 3/8 5/8 2-1/2
16261 16011 7.0 .2756 3/8 11/16 2-1/2
16262 16012 8.0 .3150 3/8 3/4 2-1/2 SET OF 3/8″ SHANK, (WELDON) SINGLE
16263 16013 9.0 .3543 3/8 3/4 2-1/2
16264 16014 10.0 .3937 3/8 1 2-11/16 EDP No. ITEM No. EDP No. ITEM No. Type Length Mill No.of
16265 16015 11.0 .4330 3/8 1 2-11/16 8% COBALT (M42) HSS (M2) Diameter Flute
16266 16016 12.0 .4724 3/8 1 2-11/16 Sq. END
16267 16017 12.5 .4921 1/2 1-1/4 3-1/4 96010 CWR205 96009 WR205 (5PCS.) REGULAR 1/8, 3/16, 1/4, 5/16, 2
16268 16018 13.0 .5118 1/2 1-1/4 3-1/4 3/8
16270 16020 14.0 .5512 1/2 1-3/8 3-3/8
16276 16026 16.0 .6299 5/8 1-5/8 3-3/4 96012 CWR405 96011 WR405 Sq. END REGULAR 1/8, 3/16, 1/4, 5/16, 4
16280 16030 18.0 .7087 5/8 1-5/8 3-3/4 (5PCS.) 3/8
16282 16032 20.0 .7874 5/8 1-7/8 4-1/8 CENTER
16284 16034 22.0 .8661 3/4 1-7/8 4-1/8 96014 CWRC05 96013 WRC05 CUT REGULAR 1/8, 3/16, 1/4, 5/16, 04
16288 16038 24.0 .9449 3/4 2 4-1/2 (5PCS.) 3/8
16290 16040 25.0 .9843 1 2 4-1/2
16296 16046 32.0 1.2598 1 2 4-1/2 ■ The TiN coated, TiCN coated or TiAIN coated is available on your request. WITH TRANSPARENT PLASTIC CASE
16298 16048 36.0 1.4173 1 2 4-1/2 ■ Coating Codes for Cobalt
16300 16050 40.0 1.5748 1-1/4 2 4-1/2 Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
■ Coating Codes for HSS
16302 16052 45.0 1.7717 1-1/4 2 4-1/2 Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
■ The TiN coated, TiCN coated or TiAIN coated is available on your request. ▶ Coated Price Shown in Price List. Call for Availability.
Mill Dia. ■ Coating Codes for Cobalt
Tolerance (inch)
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
0~+.0010 0~+.0015 ■ Coating Codes for HSS
Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
The shank of end mills is the same diameter ▶ Coated Price Shown in Price List. Call for Availability.
as the cutting portion. ◎ : Excellent ◯ : Good
P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎ ○ ○ ○
1278 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 1279
