COBALT & HSS E2226 SERIES 8% COBALT (M42) COBALT & HSS E2163 SERIES 8% COBALT (M42)
FLAT SHANK
FLAT SHANK
END MILLS E2192 SERIES 8% COBALT (M42) END MILLS E1163 SERIES HSS (M2)
FLAT SHANK
FLAT SHANK
HSSCo8, 3 FLUTE 37° HELIX MEDIUM & LONG LENGTH ROUGHING

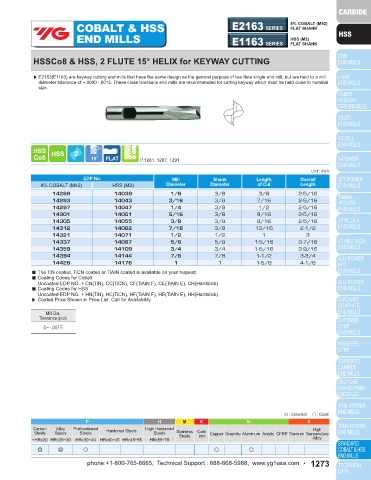

for ALUMINUM HSSCo8 & HSS, 2 FLUTE 15° HELIX for KEYWAY CUTTING

▶ This general purpose rougher is designed for high production metal removal in a wide range of work piece material. It is recommended for ▶ E2163(E1163) are keyway cutting end mills that have the same design as the general purpose of two flute single end mill, but are held to a mill
cutting aluminum, aluminum alloy and many non-ferrous materials. diameter tolerance of +.0000 -.0015. These close tolerance end mills are recommended for cutting keyway which must be held close to nominal
size.

P.1285, 1290, 1294 P.1281, 1287, 1291
E2226 Series ■ MEDIUM LENGTH Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall EDP No. Mill Shank Length Overall
8% COBALT (M42) Diameter Diameter of Cut Length 8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length
66901 1 1 3 5-1/2 14289 14039 1/8 3/8 3/8 2-5/16
66902 1-1/4 1-1/4 3 5-1/2 14293 14043 3/16 3/8 7/16 2-5/16
14297 14047 1/4 3/8 1/2 2-5/16
E2192 Series ■ LONG LENGTH Unit : Inch 14301 14051 5/16 3/8 9/16 2-5/16
EDP No. Mill Shank Length Overall 14305 14055 3/8 3/8 9/16 2-5/16
8% COBALT (M42) Diameter Diameter of Cut Length 14312 14062 7/16 3/8 13/16 2-1/2
67321 1/2 1/2 2 4 14321 14071 1/2 1/2 1 3
67337 5/8 5/8 2-1/2 4-5/8 14337 14087 5/8 5/8 1-5/16 3-7/16
67359 3/4 3/4 3 5-1/4 14359 14109 3/4 3/4 1-5/16 3-9/16
67426 1 1 4 6-1/2 14394 14144 7/8 7/8 1-1/2 3-3/4
67445 1-1/4 1-1/4 4 6-1/2 14426 14176 1 1 1-5/8 4-1/8
67461 1-1/2 1-1/4 4 6-1/2
■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
■ The TiN coated, TiCN coated or TiAIN coated is available on your request. ■ Coating Codes for Cobalt
■ Coating Codes for Cobalt Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick) ■ Coating Codes for HSS
▶ Coated Price Shown in Price List. Call for Availability. Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability.
Mill Dia.
Tolerance (inch) Mill Dia.
Tolerance (inch)
up to 1 0~+.0030
over 1 0~+.0060 Enforced cutting edge 0~-.0015

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ○ ○ ○ ◎ ◎ ○ ○ ○
