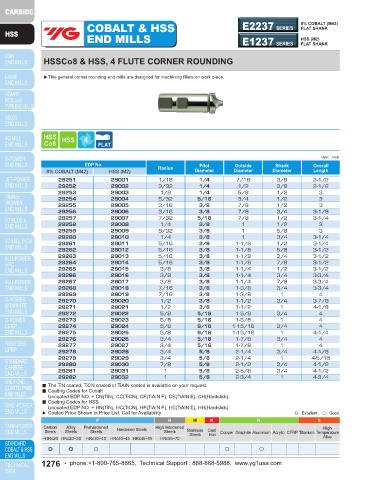

COBALT & HSS E2237 SERIES 8% COBALT (M42) COBALT & HSS E2482 SERIES 8% COBALT (M42)
FLAT SHANK
FLAT SHANK
END MILLS E1237 SERIES HSS (M2) END MILLS E1482 SERIES HSS (M2)
FLAT SHANK
FLAT SHANK

HSSCo8 & HSS, 4 FLUTE CORNER ROUNDING HSSCo8 & HSS, 2 FLUTE REGULAR LENGTH

▶This general corner rounding end mills are designed for machining fillets on work piece. ▶Two flute end mills with metric cutting diameter are especially recommended for slotting operation, pocketing keyway cutting and other general
purpose work including plunge cutting.

Unit : Inch Unit : Inch
EDP No. Pilot Outside Shank Overall EDP No. Mill Diameter Shank Length Overall
8% COBALT (M42) HSS (M2) Radius Diameter Diameter Diameter Length 8% COBALT (M42) HSS (M2) Metric Inch Diameter of Cut Length
29251 29001 1/16 1/4 7/16 3/8 2-1/2 15252 15002 2.0 .0787 3/8 5/16 2-5/16
29252 29002 3/32 1/4 1/2 3/8 2-1/2 15253 15003 2.5 .0984 3/8 5/16 2-5/16
29253 29003 1/8 1/4 5/8 1/2 3 15254 15004 3.0 .1181 3/8 5/16 2-5/16
29254 29004 5/32 5/16 3/4 1/2 3 15255 15005 3.5 .1378 3/8 7/16 2-5/16
29255 29005 3/16 3/8 7/8 1/2 3 15256 15006 4.0 .1575 3/8 7/16 2-5/16
29256 29006 3/16 3/8 7/8 3/4 3-1/8 15257 15007 4.5 .1772 3/8 1/2 2-5/16
29257 29007 7/32 5/16 7/8 1/2 3-1/4 15258 15008 5.0 .1969
29258 29008 1/4 3/8 1 1/2 3 3/8 1/2 2-5/16
29259 29009 9/32 3/8 1 5/8 3 15259 15009 5.5 .2165 3/8 1/2 2-5/16
29260 29010 1/4 3/8 1 3/4 3-1/4 15260 15010 6.0 .2362 3/8 1/2 2-5/16
29261 29011 5/16 3/8 1-1/8 1/2 3-1/4 15261 15011 7.0 .2756 3/8 9/16 2-5/16
29262 29012 5/16 3/8 1-1/8 5/8 3-1/2 15262 15012 8.0 .3150 3/8 9/16 2-5/16
29263 29013 5/16 3/8 1-1/8 3/4 3-1/2 15263 15013 9.0 .3543 3/8 9/16 2-5/16
29264 29014 5/16 3/8 1-1/8 7/8 3-1/2 15264 15014 10.0 .3937 3/8 13/16 2-1/2
29265 29015 3/8 3/8 1-1/4 1/2 3-1/2 15265 15015 11.0 .4330 3/8 13/16 2-1/2
29266 29016 3/8 3/8 1-1/4 3/4 3-3/4 15266 15016 12.0 .4724 3/8 13/16 2-1/2
29267 29017 3/8 3/8 1-1/4 7/8 3-3/4 15267 15017 12.5 .4921 1/2 1-1/8 3-1/8
29268 29018 7/16 3/8 1-3/8 3/4 3-3/4 15268 15018 13.0 .5118 1/2 1-1/8 3-1/8
29269 29019 7/16 3/8 1-3/8 1 4 15270 15020 14.0 .5512 1/2 1-1/8 3-1/8
29270 29020 1/2 3/8 1-1/2 3/4 3-7/8
29271 29021 1/2 3/8 1-1/2 1 4-1/8 15276 15026 16.0 .6299 5/8 1-5/16 3-7/16
29272 29022 5/8 5/16 1-5/8 3/4 4 15280 15030 18.0 .7087 5/8 1-5/16 3-7/16
29273 29023 5/8 5/16 1-5/8 1 4 15282 15032 20.0 .7874 5/8 1-1/2 3-3/4
29274 29024 5/8 9/16 1-15/16 3/4 4 15284 15034 22.0 .8661 3/4 1-1/2 3-3/4
29275 29025 5/8 9/16 1-15/16 1 4-1/4 15288 15038 24.0 .9449 3/4 2 4-1/2
29276 29026 3/4 5/16 1-7/8 3/4 4 15290 15040 25.0 .9843 1 2 4-1/2
29277 29027 3/4 5/16 1-7/8 1 4 15296 15046 32.0 1.2598 1 2 4-1/2
29278 29028 3/4 5/8 2-1/4 3/4 4-1/8 15298 15048 36.0 1.4173 1 2 4-1/2
29279 29029 3/4 5/8 2-1/4 1 4-5/16 15300 15050 40.0 1.5748 1-1/4 2 4-1/2
29280 29030 7/8 5/8 2-1/2 3/4 4-1/2 15302 15052 45.0 1.7717 1-1/4 2 4-1/2
29281 29031 1 5/8 2-5/8 3/4 4-1/2
29282 29032 1 5/8 2-3/4 1 4-3/4 Mill Dia. ■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
■ The TiN coated, TiCN coated or TiAIN coated is available on your request. Tolerance (inch) ■ Coating Codes for Cobalt
■ Coating Codes for Cobalt 0~+.0010 0~+.0015 Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
■ Coating Codes for HSS
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick) Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
■ Coating Codes for HSS The shank of end mills is the same diameter ▶ Coated Price Shown in Price List. Call for Availability.
Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick) as the cutting portion.
▶ Coated Price Shown in Price List. Call for Availability. ◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ○ ○ ○ ◎ ◎ ○ ○ ○
