ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

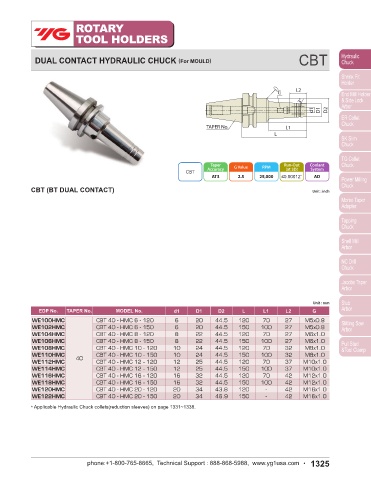

DUAL CONTACT HYDRAULIC CHUCK (Power E Hydro) CBT DUAL CONTACT HYDRAULIC CHUCK (For MOULD) CBT
L2
L2
FIG.1
L2
G
d1 D1 D2 D3
d1 D1 D2 D3 3°
TAPER No. d1 D1 D2
TAPER No. L
L TAPER No. L1
L
FIG.2
L2
L2

Taper Run-Out Coolant
d1 D1 D2 CBT Accuracy G Value RPM (at 3D) System
d1 D1 D2 AT3 2.5 25,000 ≤0.00012" AD
TAPER No.
TAPER No. L CBT (BT DUAL CONTACT) Unit : inch
L
Taper G Value RPM Run-Out Coolant
Accuracy (at 3D) System
CBT
AT3 2.5 25,000 ≤0.00012" AD
CBT (BT DUAL CONTACT) Unit : inch
EDP No. TAPER No. MODEL No. d1 D1 D2 D3 L L2 G FIG.
WD030PE 30 CBT 30 - HC 3/4P - 3.543 0.75 1.496 1.653 1.751 3.543 1.889 M8x1.0mm 1
WE030PE 40 CBT 40 - HC 3/4P - 2.854 0.75 1.496 1.938 - 2.854 1.889 M8x1.0mm 2

Unit : mm
EDP No. TAPER No. MODEL No. d1 D1 D2 D3 L L2 G FIG.
WD112PE 30 CBT 30 - HC 12P - 69 12 32 42 44.5 69 41 M8x1.0 1
WD120PE CBT 30 - HC 20P - 90 20 38 42 44.5 90 48 M8x1.0 1
WE112PE CBT 40 - HC 12P - 58 12 32 42 - 58 41 M8x1.0 2 Unit : mm
WE120PE 40 CBT 40 - HC 20P - 72.5 20 38 49.25 - 72.5 48 M8x1.0 2 EDP No. TAPER No. MODEL No. d1 D1 D2 L L1 L2 G

* High Clamping Torque Power version WE100HMC CBT 40 - HMC 6 - 120 6 20 44.5 120 70 27 M5x0.8
(Please refer to page 1420, Technical Information) WE102HMC CBT 40 - HMC 6 - 150 6 20 44.5 150 100 27 M5x0.8
* Applicable for milling(roughing and finishing) WE104HMC CBT 40 - HMC 8 - 120 8 22 44.5 120 70 27 M6x1.0
* Applicable Hydraulic Chuck collets(reduction sleeves) on page 1331~1338.
WE106HMC CBT 40 - HMC 8 - 150 8 22 44.5 150 100 27 M6x1.0
WE108HMC CBT 40 - HMC 10 - 120 10 24 44.5 120 70 32 M8x1.0
WE110HMC 40 CBT 40 - HMC 10 - 150 10 24 44.5 150 100 32 M8x1.0
WE112HMC CBT 40 - HMC 12 - 120 12 25 44.5 120 70 37 M10x1.0
WE114HMC CBT 40 - HMC 12 - 150 12 25 44.5 150 100 37 M10x1.0
WE116HMC CBT 40 - HMC 16 - 120 16 32 44.5 120 70 42 M12x1.0
WE118HMC CBT 40 - HMC 16 - 150 16 32 44.5 150 100 42 M12x1.0
WE120HMC CBT 40 - HMC 20 - 120 20 34 43.8 120 - 42 M16x1.0
WE122HMC CBT 40 - HMC 20 - 150 20 34 46.9 150 - 42 M16x1.0
* Applicable Hydraulic Chuck collets(reduction sleeves) on page 1331~1338.
