ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

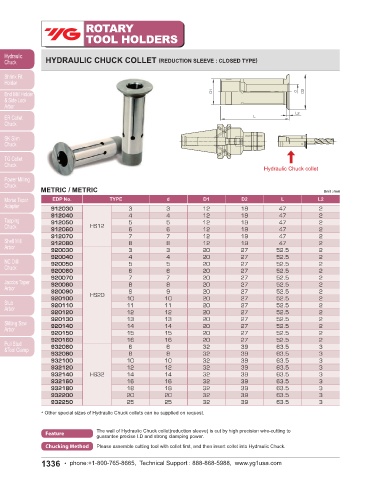

HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE : CLOSED TYPE) HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE : OPEN TYPE)

D1 d D2

L2
L

Hydraulic Chuck collet Hydraulic Chuck collet

METRIC / METRIC Unit : mm INCH / METRIC Unit : inch
EDP No. TYPE d D1 D2 L L2 EDP No. TYPE d D1 D2 L L2
912030 3 3 12 19 47 2 101203 3 3mm 0.500 0.748 1.850 0.079
912040 4 4 12 19 47 2 101204 4 4mm 0.500 0.748 1.850 0.079
912050 5 5 12 19 47 2 101205 HK1/2" 5 5mm 0.500 0.748 1.850 0.079
912060 HS12 6 6 12 19 47 2 101206 6 6mm 0.500 0.748 1.850 0.079
912070 7 7 12 19 47 2 101208 8 8mm 0.500 0.748 1.850 0.079
912080 8 8 12 19 47 2 102503 3 3mm 0.750 1.063 2.067 0.079
920030 3 3 20 27 52.5 2 102504 4 4mm 0.750 1.063 2.067 0.079
920040 4 4 20 27 52.5 2 102505 5 5mm 0.750 1.063 2.067 0.079
920050 5 5 20 27 52.5 2 102506 6 6mm 0.750 1.063 2.067 0.079
920060 6 6 20 27 52.5 2 102508 HK3/4" 8 8mm 0.750 1.063 2.067 0.079
920070 7 7 20 27 52.5 2 102510 10 10mm 0.750 1.063 2.067 0.079
920080 8 8 20 27 52.5 2 102512 12 12mm 0.750 1.063 2.067 0.079
920090 HS20 9 9 20 27 52.5 2 102514 14 14mm 0.750 1.063 2.067 0.079
920100 10 10 20 27 52.5 2 103208 8 8mm 1.250 1.535 2.500 0.118
920110 11 11 20 27 52.5 2 103210 10 10mm 1.250 1.535 2.500 0.118
920120 12 12 20 27 52.5 2 103212 12 12mm 1.250 1.535 2.500 0.118
920130 13 13 20 27 52.5 2 103214 HK1 1/4" 14 14mm 1.250 1.535 2.500 0.118
920140 14 14 20 27 52.5 2 103216 16 16mm 1.250 1.535 2.500 0.118
920150 15 15 20 27 52.5 2 103218 18 18mm 1.250 1.535 2.500 0.118
920160 16 16 20 27 52.5 2 103220 20 20mm 1.250 1.535 2.500 0.118
932060 6 6 32 39 63.5 3 103225 25 25mm 1.250 1.535 2.500 0.118
932080 8 8 32 39 63.5 3
932100 10 10 32 39 63.5 3 * Other special sizes of Hydraulic Chuck collets can be supplied on request.
932120 12 12 32 39 63.5 3
932140 HS32 14 14 32 39 63.5 3 Hydraulic Chuck collet(reduction sleeve) is cut into trisection by high precision cutting to
932160 16 16 32 39 63.5 3 Feature guarantee precise I.D and strong clamping power.
932180 18 18 32 39 63.5 3
932200 20 20 32 39 63.5 3 Chucking Method Please assemble cutting tool with collet first, and then insert collet into Hydraulic Chuck.
932250 25 25 32 39 63.5 3
* Other special sizes of Hydraulic Chuck collets can be supplied on request.

Feature The wall of Hydraulic Chuck collet(reduction sleeve) is cut by high precision wire-cutting to
guarantee precise I.D and strong clamping power.
Chucking Method Please assemble cutting tool with collet first, and then insert collet into Hydraulic Chuck.
