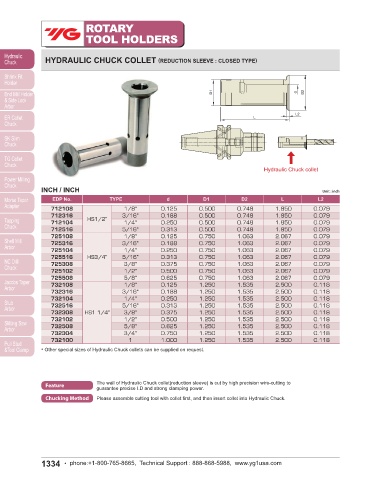

HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE : CLOSED TYPE) HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE : CLOSED TYPE)

D1 d D2

L2
L

Hydraulic Chuck collet Hydraulic Chuck collet

INCH / INCH Unit : inch METRIC / METRIC Unit : mm
EDP No. TYPE d D1 D2 L L2 EDP No. TYPE d D1 D2 L L2
712108 1/8" 0.125 0.500 0.748 1.850 0.079 812030 3 3 12 19 47 2
712316 HS1/2" 3/16" 0.188 0.500 0.748 1.850 0.079 812040 4 4 12 19 47 2
712104 1/4" 0.250 0.500 0.748 1.850 0.079 812050 HK12 5 5 12 19 47 2
712516 5/16" 0.313 0.500 0.748 1.850 0.079 812060 6 6 12 19 47 2
725108 1/8" 0.125 0.750 1.063 2.067 0.079 812070 7 7 12 19 47 2
725316 3/16" 0.188 0.750 1.063 2.067 0.079 812008 8 8 12 19 47 2
725104 1/4" 0.250 0.750 1.063 2.067 0.079 820030 3 3 20 27 52.5 2
725516 HS3/4" 5/16" 0.313 0.750 1.063 2.067 0.079 820040 4 4 20 27 52.5 2
725308 3/8" 0.375 0.750 1.063 2.067 0.079 820050 5 5 20 27 52.5 2
725102 1/2" 0.500 0.750 1.063 2.067 0.079 820060 6 6 20 27 52.5 2
52.5
27
2
820070
20
7
7
725508 5/8" 0.625 0.750 1.063 2.067 0.079 820080 8 8 20 27 52.5 2
732108 1/8" 0.125 1.250 1.535 2.500 0.118 820090 9 9 20 27 52.5 2
732316 3/16" 0.188 1.250 1.535 2.500 0.118 820100 HK20 10 10 20 27 52.5 2
732104 1/4" 0.250 1.250 1.535 2.500 0.118 820110 11 11 20 27 52.5 2
732516 5/16" 0.313 1.250 1.535 2.500 0.118 820120 12 12 20 27 52.5 2
732308 HS1 1/4" 3/8" 0.375 1.250 1.535 2.500 0.118 820130 13 13 20 27 52.5 2
732102 1/2" 0.500 1.250 1.535 2.500 0.118 820140 14 14 20 27 52.5 2
732508 5/8" 0.625 1.250 1.535 2.500 0.118 820150 15 15 20 27 52.5 2
732304 3/4" 0.750 1.250 1.535 2.500 0.118 820160 16 16 20 27 52.5 2
732100 1 1.000 1.250 1.535 2.500 0.118 832060 6 6 32 39 63.5 3
832080 8 8 32 39 63.5 3
* Other special sizes of Hydraulic Chuck collets can be supplied on request. 832100 10 10 32 39 63.5 3
832120 12 12 32 39 63.5 3
832140 HK32 14 14 32 39 63.5 3
832160 16 16 32 39 63.5 3
832180 18 18 32 39 63.5 3
Feature The wall of Hydraulic Chuck collet(reduction sleeve) is cut by high precision wire-cutting to 832200 20 20 32 39 63.5 3
guarantee precise I.D and strong clamping power.
832250 25 25 32 39 63.5 3
Chucking Method Please assemble cutting tool with collet first, and then insert collet into Hydraulic Chuck.
* Other special sizes of Hydraulic Chuck collets can be supplied on request.

Feature Hydraulic Chuck collet(reduction sleeve) is cut into trisection by high precision cutting to
guarantee precise I.D and strong clamping power.
Chucking Method Please assemble cutting tool with collet first, and then insert collet into Hydraulic Chuck.
