ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

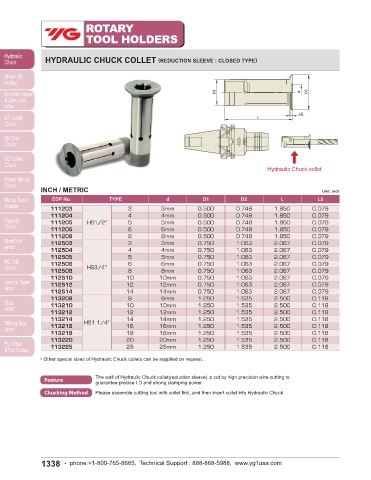

HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE : CLOSED TYPE) SHRINK FIT HOLDER CAT

G L2
4°30'

d1 D1 D2

TAPER No.
L

Taper Run-Out Coolant
Hydraulic Chuck collet ASME B5.50 Accuracy G Value RPM (at 3D) System
- CAT AT3 2.5 25,000 ≤0.00012" AD/B

INCH / METRIC Unit : inch ASME B5.50-2009-CAT Unit : inch
EDP No. TYPE d D1 D2 L L2 EDP No. TAPER No. MODEL No. d1 D1 D2 L L2 G
111203 3 3mm 0.500 0.748 1.850 0.079 VK020 CAT40 AD/B - SFH 1/8 - 3.15 0.125 0.394 0.748 3.150 0.354 -
111204 4 4mm 0.500 0.748 1.850 0.079 VK022 CAT40 AD/B - SFH 3/16 - 3.15 0.188 0.394 0.748 3.150 0.472 -
111205 HS1/2" 5 5mm 0.500 0.748 1.850 0.079 VK024 CAT40 AD/B - SFH 1/4 - 3.15 0.250 0.827 1.063 3.150 1.417 M5x0.8mm
111206 6 6mm 0.500 0.748 1.850 0.079 VK026 CAT40 AD/B - SFH 1/4 - 6.30 0.250 0.827 1.063 6.300 1.417 M5x0.8mm
111208 8 8mm 0.500 0.748 1.850 0.079 VK028 CAT40 AD/B - SFH 3/8 - 3.15 0.375 0.945 1.260 3.150 1.654 M8x1.0mm
112503 3 3mm 0.750 1.063 2.067 0.079 VK030 CAT40 AD/B - SFH 3/8 - 6.30 0.375 0.945 1.260 6.300 1.654 M8x1.0mm
112504 4 4mm 0.750 1.063 2.067 0.079 VK032 CAT40 AD/B - SFH 1/2 - 3.15 0.500 0.945 1.260 3.150 1.811 M10x1.0mm
112505 5 5mm 0.750 1.063 2.067 0.079 VK034 40 CAT40 AD/B - SFH 1/2 - 6.30 0.500 0.945 1.260 6.300 1.850 M10x1.0mm
112506 6 6mm 0.750 1.063 2.067 0.079 VK036 CAT40 AD/B - SFH 5/8 - 3.15 0.625 1.063 1.339 3.150 1.969 M12x1.0mm
112508 HS3/4" 8 8mm 0.750 1.063 2.067 0.079 VK038 CAT40 AD/B - SFH 5/8 - 6.30 0.625 1.063 1.339 6.300 1.969 M12x1.0mm
112510 10 10mm 0.750 1.063 2.067 0.079 VK040 CAT40 AD/B - SFH 3/4 - 3.15 0.750 1.299 1.654 3.150 2.047 M16x1.0mm
112512 12 12mm 0.750 1.063 2.067 0.079 VK042 CAT40 AD/B - SFH 3/4 - 6.30 0.750 1.299 1.654 6.300 2.047 M16x1.0mm
112514 14 14mm 0.750 1.063 2.067 0.079 VK044 CAT40 AD/B - SFH 1" - 3.94 1.000 1.732 2.087 3.937 2.283 M16x1.0mm
113208 8 8mm 1.250 1.535 2.500 0.118 VK046 CAT40 AD/B - SFH 1" - 6.30 1.000 1.732 2.087 6.300 2.283 M16x1.0mm
113210 10 10mm 1.250 1.535 2.500 0.118 VK048 CAT40 AD/B - SFH 1 1/4 - 3.94 1.250 1.732 2.087 3.937 2.283 M16x1.0mm
113212 12 12mm 1.250 1.535 2.500 0.118 VK050 CAT40 AD/B - SFH 1 1/4 - 6.30 1.250 1.732 2.087 6.300 2.283 M16x1.0mm
113214 HS1 1/4" 14 14mm 1.250 1.535 2.500 0.118 VL020 CAT50 AD/B - SFH 1/8 - 3.15 0.125 0.394 0.748 3.150 0.354 -
113216 16 16mm 1.250 1.535 2.500 0.118 VL022 CAT50 AD/B - SFH 3/16 - 3.15 0.188 0.394 0.748 3.150 0.472 -
113218 18 18mm 1.250 1.535 2.500 0.118 VL024 CAT50 AD/B - SFH 1/4 - 3.15 0.250 0.827 1.063 3.150 1.417 M5x0.8mm
113220 20 20mm 1.250 1.535 2.500 0.118 VL026 CAT50 AD/B - SFH 1/4 - 6.30 0.250 0.827 1.063 6.300 1.417 M5x0.8mm
113225 25 25mm 1.250 1.535 2.500 0.118 VL028 CAT50 AD/B - SFH 3/8 - 3.15 0.375 0.945 1.260 3.150 1.575 M8x1.0mm
VL030 CAT50 AD/B - SFH 3/8 - 6.30 0.375 0.945 1.260 6.300 1.575 M8x1.0mm
* Other special sizes of Hydraulic Chuck collets can be supplied on request. VL032 CAT50 AD/B - SFH 1/2 - 3.15 0.500 0.945 1.260 3.150 1.850 M10x1.0mm
VL034 CAT50 AD/B - SFH 1/2 - 6.30 0.500 0.945 1.260 6.300 1.850 M10x1.0mm
VL036 50 CAT50 AD/B - SFH 5/8 - 3.15 0.625 1.063 1.339 3.150 1.969 M12x1.0mm
Feature The wall of Hydraulic Chuck collet(reduction sleeve) is cut by high precision wire-cutting to VL038 CAT50 AD/B - SFH 5/8 - 6.3 0.625 1.063 1.339 6.300 1.969 M12x1.0mm
guarantee precise I.D and strong clamping power.
VL040 CAT50 AD/B - SFH 3/4 - 3.15 0.750 1.299 1.654 3.150 2.047 M16x1.0mm
Chucking Method Please assemble cutting tool with collet first, and then insert collet into Hydraulic Chuck. VL042 CAT50 AD/B - SFH 3/4 - 6.3 0.750 1.299 1.654 6.300 2.047 M16x1.0mm
VL044 CAT50 AD/B - SFH 1" - 3.94 1.000 1.732 2.087 3.937 2.283 M16x1.0mm
VL046 CAT50 AD/B - SFH 1" - 6.30 1.000 1.732 2.087 6.300 2.283 M16x1.0mm
VL048 CAT50 AD/B - SFH 1 1/4 - 3.94 1.250 1.732 2.087 3.937 2.283 M16x1.0mm
VL050 CAT50 AD/B - SFH 1 1/4 - 6.30 1.250 1.732 2.087 6.300 2.283 M16x1.0mm
