ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

Hydraulic CCT CBT

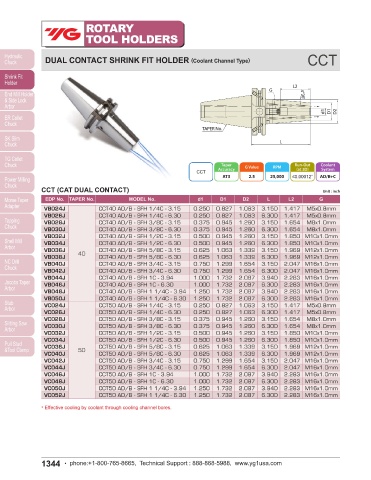

Chuck DUAL CONTACT SHRINK FIT HOLDER (Coolant Channel Type) DUAL CONTACT SHRINK FIT HOLDER

L2
G 4°30' G L2
4°30'

d1 D1 D2 d1 D1 D2

TAPER No.
TAPER No.
L L

Taper Run-Out Coolant Taper Run-Out Coolant
Accuracy G Value RPM (at 3D) System Accuracy G Value RPM (at 3D) System
CCT CBT
AT3 2.5 25,000 ≤0.00012" AD/B+C AT3 2.5 25,000 ≤0.00012" AD
CCT (CAT DUAL CONTACT) Unit : inch CBT (BT DUAL CONTACT) Unit : inch
EDP No. TAPER No. MODEL No. d1 D1 D2 L L2 G EDP No. TAPER No. MODEL No. d1 D1 D2 L L2 G
VB024J CCT40 AD/B - SFH 1/4C - 3.15 0.250 0.827 1.063 3.150 1.417 M5x0.8mm VD020 CBT30 - SFH 1/8 - 2.36 0.125 0.394 0.629 2.362 0.354 -
VB026J CCT40 AD/B - SFH 1/4C - 6.30 0.250 0.827 1.063 6.300 1.417 M5x0.8mm VD022 CBT30 - SFH 3/16 - 2.36 0.188 0.394 0.629 2.362 0.472 -
VB028J CCT40 AD/B - SFH 3/8C - 3.15 0.375 0.945 1.260 3.150 1.654 M8x1.0mm VD024 CBT30 - SFH 1/4 - 2.36 0.250 0.827 1.062 2.362 1.417 M5x0.8mm
VB030J CCT40 AD/B - SFH 3/8C - 6.30 0.375 0.945 1.260 6.300 1.654 M8x1.0mm VD026 30 CBT30 - SFH 3/8 - 2.36 0.375 0.945 1.180 2.362 1.614 M8x1.0mm
VB032J CCT40 AD/B - SFH 1/2C - 3.15 0.500 0.945 1.260 3.150 1.850 M10x1.0mm VD028 CBT30 - SFH 1/2 - 3.15 0.500 0.945 1.260 3.150 1.850 M10x1.0mm
VB034J CCT40 AD/B - SFH 1/2C - 6.30 0.500 0.945 1.260 6.300 1.850 M10x1.0mm VD030 CBT30 - SFH 5/8 - 3.15 0.625 1.063 1.339 3.150 1.969 M12x1.0mm
VB036J 40 CCT40 AD/B - SFH 5/8C - 3.15 0.625 1.063 1.339 3.150 1.969 M12x1.0mm VD032 CBT30 - SFH 3/4 - 3.54 0.750 1.299 1.654 3.543 2.047 M16x1.0mm
VB038J CCT40 AD/B - SFH 5/8C - 6.30 0.625 1.063 1.339 6.300 1.969 M12x1.0mm VE020 CBT40 - SFH 1/8 - 3.54 0.125 0.394 0.748 3.543 0.354 -
VB040J CCT40 AD/B - SFH 3/4C - 3.15 0.750 1.299 1.654 3.150 2.047 M16x1.0mm VE022 CBT40 - SFH 3/16 - 3.54 0.188 0.394 0.748 3.543 0.472 -
VB042J CCT40 AD/B - SFH 3/4C - 6.30 0.750 1.299 1.654 6.300 2.047 M16x1.0mm VE024 CBT40 - SFH 1/4 - 3.54 0.250 0.827 1.063 3.543 1.417 M5x0.8mm
VB044J CCT40 AD/B - SFH 1C - 3.94 1.000 1.732 2.087 3.940 2.283 M16x1.0mm VE026 CBT40 - SFH 1/4 - 6.30 0.250 0.827 1.063 6.300 1.417 M5x0.8mm
VB046J CCT40 AD/B - SFH 1C - 6.30 1.000 1.732 2.087 6.300 2.283 M16x1.0mm VE028 CBT40 - SFH 3/8 - 3.54 0.375 0.945 1.260 3.543 1.654 M8x1.0mm
VB048J CCT40 AD/B - SFH 1 1/4C - 3.94 1.250 1.732 2.087 3.940 2.283 M16x1.0mm VE030 CBT40 - SFH 3/8 - 6.30 0.375 0.945 1.260 6.300 1.654 M8x1.0mm
VB050J CCT40 AD/B - SFH 1 1/4C - 6.30 1.250 1.732 2.087 6.300 2.283 M16x1.0mm VE032 40 CBT40 - SFH 1/2 - 3.54 0.500 0.945 1.260 3.543 1.850 M10x1.0mm
VC024J CCT50 AD/B - SFH 1/4C - 3.15 0.250 0.827 1.063 3.150 1.417 M5x0.8mm VE034 CBT40 - SFH 1/2 - 6.30 0.500 0.945 1.260 6.300 1.850 M10x1.0mm
VC026J CCT50 AD/B - SFH 1/4C - 6.30 0.250 0.827 1.063 6.300 1.417 M5x0.8mm VE036 CBT40 - SFH 5/8 - 3.54 0.625 1.063 1.339 3.543 1.969 M12x1.0mm
VC028J CCT50 AD/B - SFH 3/8C - 3.15 0.375 0.945 1.260 3.150 1.654 M8x1.0mm VE038 CBT40 - SFH 5/8 - 6.30 0.625 1.063 1.339 6.300 1.969 M12x1.0mm
VC030J CCT50 AD/B - SFH 3/8C - 6.30 0.375 0.945 1.260 6.300 1.654 M8x1.0mm VE040 CBT40 - SFH 3/4 - 3.54 0.750 1.299 1.654 3.543 2.047 M16x1.0mm
VC032J CCT50 AD/B - SFH 1/2C - 3.15 0.500 0.945 1.260 3.150 1.850 M10x1.0mm VE042 CBT40 - SFH 3/4 - 6.30 0.750 1.299 1.654 6.300 2.047 M16x1.0mm
VC034J CCT50 AD/B - SFH 1/2C - 6.30 0.500 0.945 1.260 6.300 1.850 M10x1.0mm VE044 CBT40 - SFH 1" - 3.94 1.000 1.732 2.087 3.937 2.283 M16x1.0mm
VC036J CCT50 AD/B - SFH 5/8C - 3.15 0.625 1.063 1.339 3.150 1.969 M12x1.0mm VE046 CBT40 - SFH 1" - 6.30 1.000 1.732 2.087 6.300 2.283 M16x1.0mm
VC040J 50 CCT50 AD/B - SFH 5/8C - 6.30 0.625 1.063 1.339 6.300 1.969 M12x1.0mm
VC042J CCT50 AD/B - SFH 3/4C - 3.15 0.750 1.299 1.654 3.150 2.047 M16x1.0mm
VC044J CCT50 AD/B - SFH 3/4C - 6.30 0.750 1.299 1.654 6.300 2.047 M16x1.0mm
VC046J CCT50 AD/B - SFH 1C - 3.94 1.000 1.732 2.087 3.940 2.283 M16x1.0mm
VC048J CCT50 AD/B - SFH 1C - 6.30 1.000 1.732 2.087 6.300 2.283 M16x1.0mm
VC050J CCT50 AD/B - SFH 1 1/4C - 3.94 1.250 1.732 2.087 3.940 2.283 M16x1.0mm
VC052J CCT50 AD/B - SFH 1 1/4C - 6.30 1.250 1.732 2.087 6.300 2.283 M16x1.0mm

* Effective cooling by coolant through cooling channel bores.
