Page 1345 - YG 2019

ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

Hydraulic CBT HSK

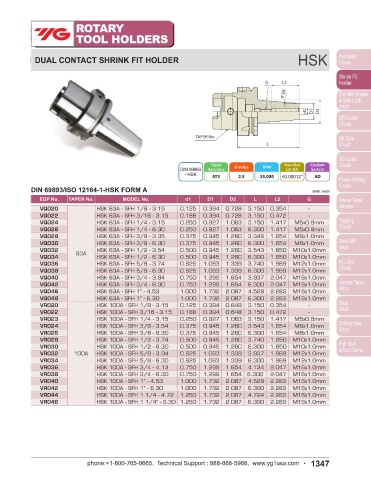

Chuck DUAL CONTACT SHRINK FIT HOLDER (Coolant Channel Type) DUAL CONTACT SHRINK FIT HOLDER

G L2
L2
4°30'
G
4°30'
d1 D1 D2 d1 D1 D2

TAPER No.
TAPER No.
L L

Taper Run-Out Coolant Taper Run-Out Coolant
Accuracy G Value RPM (at 3D) System DIN 69893 Accuracy G Value RPM (at 3D) System
CBT - HSK
AT3 2.5 25,000 ≤0.00012" AD+C AT3 2.5 25,000 ≤0.00012" AD
CBT (BT DUAL CONTACT) Unit : inch DIN 69893/ISO 12164-1-HSK FORM A Unit : inch
EDP No. TAPER No. MODEL No. d1 D1 D2 L L2 G EDP No. TAPER No. MODEL No. d1 D1 D2 L L2 G
VD024J CBT30 - SFH 1/4C - 2.36 0.250 0.827 1.062 2.360 1.417 M5x0.8mm VQ020 HSK 63A - SFH 1/8 - 3.15 0.125 0.394 0.728 3.150 0.354 -
VD026J CBT30 - SFH 3/8C - 2.36 0.375 0.945 1.180 2.360 1.614 M8x1.0mm VQ022 HSK 63A - SFH 3/16 - 3.15 0.188 0.394 0.728 3.150 0.472 -
VD028J 30 CBT30 - SFH 1/2C - 3.15 0.500 0.945 1.260 3.150 1.850 M10x1.0mm VQ024 HSK 63A - SFH 1/4 - 3.15 0.250 0.827 1.063 3.150 1.417 M5x0.8mm
VD030J CBT30 - SFH 5/8C - 3.15 0.625 1.063 1.339 3.150 1.969 M12x1.0mm VQ026 HSK 63A - SFH 1/4 - 6.30 0.250 0.827 1.063 6.300 1.417 M5x0.8mm
VD032J CBT30 - SFH 3/4C - 3.54 0.750 1.299 1.654 3.540 2.047 M16x1.0mm VQ028 HSK 63A - SFH 3/8 - 3.35 0.375 0.945 1.260 3.346 1.654 M8x1.0mm
VE024J CBT40 - SFH 1/4C - 3.54 0.250 0.827 1.063 3.540 1.417 M5x0.8mm VQ030 HSK 63A - SFH 3/8 - 6.30 0.375 0.945 1.260 6.300 1.654 M8x1.0mm
VE026J CBT40 - SFH 1/4C - 6.30 0.250 0.827 1.063 6.300 1.417 M5x0.8mm VQ032 63A HSK 63A - SFH 1/2 - 3.54 0.500 0.945 1.260 3.543 1.850 M10x1.0mm
VE028J CBT40 - SFH 3/8C - 3.54 0.375 0.945 1.260 3.540 1.654 M8x1.0mm VQ034 HSK 63A - SFH 1/2 - 6.30 0.500 0.945 1.260 6.300 1.850 M10x1.0mm
VE030J CBT40 - SFH 3/8C - 6.30 0.375 0.945 1.260 6.300 1.654 M8x1.0mm VQ036 HSK 63A - SFH 5/8 - 3.74 0.625 1.063 1.339 3.740 1.969 M12x1.0mm
VE032J CBT40 - SFH 1/2C - 3.54 0.500 0.945 1.260 3.540 1.850 M10x1.0mm VQ038 HSK 63A - SFH 5/8 - 6.30 0.625 1.063 1.339 6.300 1.969 M12x1.0mm
VE034J 40 CBT40 - SFH 1/2C - 6.30 0.500 0.945 1.260 6.300 1.850 M10x1.0mm VQ040 HSK 63A - SFH 3/4 - 3.94 0.750 1.299 1.654 3.937 2.047 M16x1.0mm
VE036J CBT40 - SFH 5/8C - 3.54 0.625 1.063 1.339 3.540 1.969 M12x1.0mm VQ042 HSK 63A - SFH 3/4 - 6.30 0.750 1.299 1.654 6.300 2.047 M16x1.0mm
VE038J CBT40 - SFH 5/8C - 6.30 0.625 1.063 1.339 6.300 1.969 M12x1.0mm VQ046 HSK 63A - SFH 1" - 4.53 1.000 1.732 2.087 4.528 2.283 M16x1.0mm
VE040J CBT40 - SFH 3/4C - 3.54 0.750 1.299 1.654 3.540 2.047 M16x1.0mm VQ048 HSK 63A - SFH 1" - 6.30 1.000 1.732 2.087 6.300 2.283 M16x1.0mm
VE042J CBT40 - SFH 3/4C - 6.30 0.750 1.299 1.654 6.300 2.047 M16x1.0mm VR020 HSK 100A - SFH 1/8 - 3.15 0.125 0.394 0.648 3.150 0.354 -
VE044J CBT40 - SFH 1C - 3.94 1.000 1.732 2.087 3.940 2.283 M16x1.0mm VR022 HSK 100A - SFH 3/16 - 3.15 0.188 0.394 0.648 3.150 0.472 -
VE046J CBT40 - SFH 1C - 6.30 1.000 1.732 2.087 6.300 2.283 M16x1.0mm VR023 HSK 100A - SFH 1/4 - 3.15 0,250 0.827 1.063 3.150 1.417 M5x0.8mm
VR024 HSK 100A - SFH 3/8 - 3.54 0.375 0.945 1.260 3.543 1.654 M8x1.0mm
* Effective cooling by coolant through cooling channel bores. VR026 HSK 100A - SFH 3/8 - 6.30 0.375 0.945 1.260 6.300 1.654 M8x1.0mm
VR028 HSK 100A - SFH 1/2 - 3.74 0.500 0.945 1.260 3.740 1.850 M10x1.0mm
VR030 HSK 100A - SFH 1/2 - 6.30 0.500 0.945 1.260 6.300 1.850 M10x1.0mm
VR032 100A HSK 100A - SFH 5/8 - 3.94 0.625 1.063 1.339 3.937 1.969 M12x1.0mm
VR034 HSK 100A - SFH 5/8 - 6.30 0.625 1.063 1.339 6.300 1.969 M12x1.0mm
VR036 HSK 100A - SFH 3/4 - 4.13 0.750 1.299 1.654 4.134 2.047 M16x1.0mm
VR038 HSK 100A - SFH 3/4 - 6.30 0.750 1.299 1.654 6.300 2.047 M16x1.0mm
VR040 HSK 100A - SFH 1" - 4.53 1.000 1.732 2.087 4.528 2.283 M16x1.0mm
VR042 HSK 100A - SFH 1" - 6.30 1.000 1.732 2.087 6.300 2.283 M16x1.0mm
VR044 HSK 100A - SFH 1 1/4 - 4.72 1.250 1.732 2.087 4.724 2.283 M16x1.0mm
VR046 HSK 100A - SFH 1 1/4" - 6.30 1.250 1.732 2.087 6.300 2.283 M16x1.0mm
