ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS
Hydraulic HSK ST

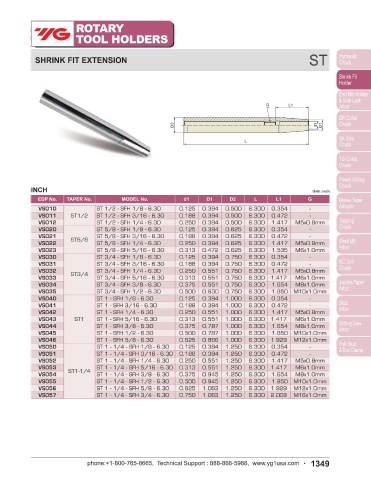

Chuck DUAL CONTACT SHRINK FIT HOLDER (Coolant Channel Type) SHRINK FIT EXTENSION
L2
G 4°30'
G L1
d1 D1 D2
D2 d1 D1
TAPER No.
L L
Taper Run-Out Coolant
DIN 69893 Accuracy G Value RPM (at 3D) System
- HSK AT3 2.5 25,000 ≤0.00012" AD+C
DIN 69893/ISO 12164-1-HSK FORM A Unit : inch INCH Unit : inch
EDP No. TAPER No. MODEL No. d1 D1 D2 L L2 G EDP No. TAPER No. MODEL No. d1 D1 D2 L L1 G
VQ024J HSK 63A - SFH 1/4C - 3.15 0.250 0.827 1.063 3.150 1.417 M5x0.8mm VS010 ST 1/2 - SFH 1/8 - 6.30 0.125 0.394 0.500 6.300 0.354 -
VQ026J HSK 63A - SFH 1/4C - 6.30 0.250 0.827 1.063 6.300 1.417 M5x0.8mm VS011 ST1/2 ST 1/2 - SFH 3/16 - 6.30 0.188 0.394 0.500 6.300 0.472 -
VQ028J HSK 63A - SFH 3/8C - 3.35 0.375 0.945 1.260 3.350 1.654 M8x1.0mm VS012 ST 1/2 - SFH 1/4 - 6.30 0.250 0.394 0.500 6.300 1.417 M5x0.8mm
VQ030J HSK 63A - SFH 3/8C - 6.30 0.375 0.945 1.260 6.300 1.654 M8x1.0mm VS020 ST 5/8 - SFH 1/8 - 6.30 0.125 0.394 0.625 6.300 0.354 -
VQ032J HSK 63A - SFH 1/2C - 3.54 0.500 0.945 1.260 3.540 1.850 M10x1.0mm VS021 ST5/8 ST 5/8 - SFH 3/16 - 6.30 0.188 0.394 0.625 6.300 0.472 -
VQ034J HSK 63A - SFH 1/2C - 6.30 0.500 0.945 1.260 6.300 1.850 M10x1.0mm VS022 ST 5/8 - SFH 1/4 - 6.30 0.250 0.394 0.625 6.300 1.417 M5x0.8mm
VQ036J 63A HSK 63A - SFH 5/8C - 3.74 0.625 1.063 1.339 3.740 1.969 M12x1.0mm VS023 ST 5/8 - SFH 5/16 - 6.30 0.313 0.472 0.625 6.300 1.535 M6x1.0mm
VQ038J HSK 63A - SFH 5/8C - 6.30 0.625 1.063 1.339 6.300 1.969 M12x1.0mm VS030 ST 3/4 - SFH 1/8 - 6.30 0.125 0.394 0.750 6.300 0.354 -
VQ040J HSK 63A - SFH 3/4C - 3.94 0.750 1.299 1.654 3.940 2.047 M16x1.0mm VS031 ST 3/4 - SFH 3/16 - 6.30 0.188 0.394 0.750 6.300 0.472 -
VQ042J HSK 63A - SFH 3/4C - 6.30 0.750 1.299 1.654 6.300 2.047 M16x1.0mm VS032 ST3/4 ST 3/4 - SFH 1/4 - 6.30 0.250 0.551 0.750 6.300 1.417 M5x0.8mm
VQ046J HSK 63A - SFH 1C - 4.53 1.000 1.732 2.087 4.530 2.283 M16x1.0mm VS033 ST 3/4 - SFH 5/16 - 6.30 0.313 0.551 0.750 6.300 1.417 M6x1.0mm
VQ048J HSK 63A - SFH 1C - 6.30 1.000 1.732 2.087 6.300 2.283 M16x1.0mm VS034 ST 3/4 - SFH 3/8 - 6.30 0.375 0.551 0.750 6.300 1.654 M8x1.0mm
VR023J HSK 100A - SFH 1/4C - 3.54 0.250 0.827 1.063 3.540 1.417 M5x0.8mm VS035 ST 3/4 - SFH 1/2 - 6.30 0.500 0.630 0.750 6.300 1.850 M10x1.0mm
VR024J HSK 100A - SFH 3/8C - 3.54 0.375 0.945 1.260 3.540 1.654 M8x1.0mm VS040 ST 1 - SFH 1/8 - 6.30 0.125 0.394 1.000 6.300 0.354 -
VR026J HSK 100A - SFH 3/8C - 6.30 0.375 0.945 1.260 6.300 1.654 M8x1.0mm VS041 ST 1 - SFH 3/16 - 6.30 0.188 0.394 1.000 6.300 0.472 -
VR028J HSK 100A - SFH 1/2C - 3.74 0.500 0.945 1.260 3.740 1.850 M10x1.0mm VS042 ST 1 - SFH 1/4 - 6.30 0.250 0.551 1.000 6.300 1.417 M5x0.8mm
VR030J HSK 100A - SFH 1/2C - 6.30 0.500 0.945 1.260 6.300 1.850 M10x1.0mm VS043 ST1 ST 1 - SFH 5/16 - 6.30 0.313 0.551 1.000 6.300 1.417 M6x1.0mm
VR032J HSK 100A - SFH 5/8C - 3.94 0.625 1.063 1.339 3.940 1.969 M12x1.0mm VS044 ST 1 - SFH 3/8 - 6.30 0.375 0.787 1.000 6.300 1.654 M8x1.0mm
VR034J 100A HSK 100A - SFH 5/8C - 6.30 0.625 1.063 1.339 6.300 1.969 M12x1.0mm VS045 ST 1 - SFH 1/2 - 6.30 0.500 0.787 1.000 6.300 1.850 M10x1.0mm
VR036J HSK 100A - SFH 3/4C - 4.13 0.750 1.299 1.654 4.130 2.047 M16x1.0mm VS046 ST 1 - SFH 5/8 - 6.30 0.625 0.866 1.000 6.300 1.929 M12x1.0mm
VR038J HSK 100A - SFH 3/4C - 6.30 0.750 1.299 1.654 6.300 2.047 M16x1.0mm VS050 ST 1 - 1/4 - SFH 1/8 - 6.30 0.125 0.394 1.250 6.300 0.354 -
VR040J HSK 100A - SFH 1C - 4.53 1.000 1.732 2.087 4.530 2.283 M16x1.0mm VS051 ST 1 - 1/4 - SFH 3/16 - 6.30 0.188 0.394 1.250 6.300 0.472 -
VR042J HSK 100A - SFH 1C - 6.30 1.000 1.732 2.087 6.300 2.283 M16x1.0mm VS052 ST 1 - 1/4 - SFH 1/4 - 6.30 0.250 0.551 1.250 6.300 1.417 M5x0.8mm
VR044J HSK 100A - SFH 1 1/4C - 4.72 1.250 1.732 2.087 4.720 2.283 M16x1.0mm VS053 ST1-1/4 ST 1 - 1/4 - SFH 5/16 - 6.30 0.313 0.551 1.250 6.300 1.417 M6x1.0mm
VR046J HSK 100A - SFH 1 1/4C - 6.30 1.250 1.732 2.087 6.300 2.283 M16x1.0mm VS054 ST 1 - 1/4 - SFH 3/8 - 6.30 0.375 0.945 1.250 6.300 1.654 M8x1.0mm
VS055 ST 1 - 1/4 - SFH 1/2 - 6.30 0.500 0.945 1.250 6.300 1.850 M10x1.0mm
* Effective cooling by coolant through cooling channel bores. VS056 ST 1 - 1/4 - SFH 5/8 - 6.30 0.625 1.063 1.250 6.300 1.929 M12x1.0mm
VS057 ST 1 - 1/4 - SFH 3/4 - 6.30 0.750 1.063 1.250 6.300 2.008 M16x1.0mm
