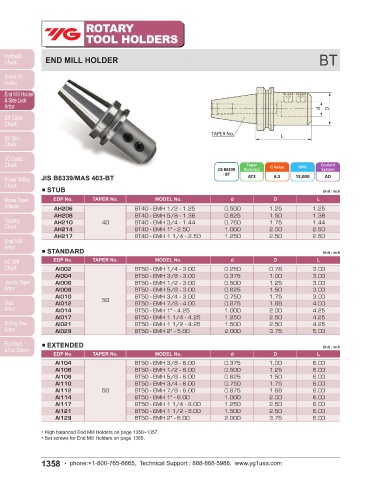

Page 1356 - YG 2019

ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

END MILL HOLDER BT END MILL HOLDER BT

B

d D
AD d D

TAPER No. L TAPER No. B L

Taper Coolant Taper Coolant
JIS B6339 Accuracy G Value RPM System JIS B6339 Accuracy G Value RPM System
JIS B6339/MAS 403-BT - BT AT3 6.3 15,000 AD JIS B6339/MAS 403-BT - BT AT3 6.3 15,000 AD/B
STUB Unit : inch STANDARD Unit : inch
EDP No. TAPER No. MODEL No. d D L EDP No. TAPER No. MODEL No. d D L
AH206 BT40 - EMH 1/2 - 1.25 0.500 1.25 1.25 AH000B BT40 AD/B - EMH 1/8 - 2.50 0.125 0.69 2.50
AH208 BT40 - EMH 5/8 - 1.38 0.625 1.50 1.38 AH001B BT40 AD/B - EMH 3/16 - 2.50 0.187 0.69 2.50
AH210 40 BT40 - EMH 3/4 - 1.44 0.750 1.75 1.44 AH002B BT40 AD/B - EMH 1/4 - 2.50 0.250 0.78 2.50
AH214 BT40 - EMH 1" - 2.50 1.000 2.00 2.50 AH003B BT40 AD/B - EMH 5/16 - 2.50 0.312 0.88 2.50
AH217 BT40 - EMH 1 1/4 - 2.50 1.250 2.50 2.50 AH004B BT40 AD/B - EMH 3/8 - 2.50 0.375 1.00 2.50
AH005B BT40 AD/B - EMH 7/16 - 2.50 0.437 1.13 2.50
STANDARD Unit : inch AH006B 40 BT40 AD/B - EMH 1/2 - 2.50 0.500 1.25 2.50
EDP No. TAPER No. MODEL No. d D L AH008B BT40 AD/B - EMH 5/8 - 2.50 0.625 1.50 2.50
AH010B BT40 AD/B - EMH 3/4 - 2.50 0.750 1.75 2.50
AI002 BT50 - EMH 1/4 - 3.00 0.250 0.78 3.00 AH012B BT40 AD/B - EMH 7/8 - 3.50 0.875 1.88 3.50
AI004 BT50 - EMH 3/8 - 3.00 0.375 1.00 3.00 AH014B BT40 AD/B - EMH 1" - 3.75 1.000 2.00 3.75
AI006 BT50 - EMH 1/2 - 3.00 0.500 1.25 3.00 AH017B BT40 AD/B - EMH 1 1/4 - 3.75 1.250 2.50 3.75
AI008 BT50 - EMH 5/8 - 3.00 0.625 1.50 3.00 AH021B BT40 AD/B - EMH 1 1/2 - 4.25 1.500 2.50 4.25
AI010 50 BT50 - EMH 3/4 - 3.00 0.750 1.75 3.00
AI012 BT50 - EMH 7/8 - 4.00 0.875 1.88 4.00
AI014 BT50 - EMH 1" - 4.25 1.000 2.00 4.25 EXTENDED
AI017 BT50 - EMH 1 1/4 - 4.25 1.250 2.50 4.25 Unit : inch
AI021 BT50 - EMH 1 1/2 - 4.25 1.500 2.50 4.25 EDP No. TAPER No. MODEL No. d D L
AI029 BT50 - EMH 2" - 5.00 2.000 3.75 5.00 AH104B BT40 AD/B - EMH 3/8 - 4.00 0.375 1.00 4.00
AH106B BT40 AD/B - EMH 1/2 - 4.00 0.500 1.25 4.00
EXTENDED Unit : inch AH108B BT40 AD/B - EMH 5/8 - 4.00 0.625 1.50 4.00
EDP No. TAPER No. MODEL No. d D L AH110B 40 BT40 AD/B - EMH 3/4 - 4.00 0.750 1.75 4.00
AI104 BT50 - EMH 3/8 - 6.00 0.375 1.00 6.00 AH114B BT40 AD/B - EMH 1" - 5.00 1.000 2.00 5.00
AI106 BT50 - EMH 1/2 - 6.00 0.500 1.25 6.00 AH117B BT40 AD/B - EMH 1 1/4 - 5.00 1.250 2.50 5.00
AI108 BT50 - EMH 5/8 - 6.00 0.625 1.50 6.00 AH121B BT40 AD/B - EMH 1 1/2 - 6.00 1.500 2.50 6.00
AI110 BT50 - EMH 3/4 - 6.00 0.750 1.75 6.00 * High balanced End Mill Holders are available on request.
AI112 50 BT50 - EMH 7/8 - 6.00 0.875 1.88 6.00 * Set screws for End Mill Holders on page 1365.
AI114 BT50 - EMH 1" - 6.00 1.000 2.00 6.00
AI117 BT50 - EMH 1 1/4 - 6.00 1.250 2.50 6.00
AI121 BT50 - EMH 1 1/2 - 6.00 1.500 2.50 6.00
AI129 BT50 - EMH 2" - 6.00 2.000 3.75 6.00

* High balanced End Mill Holders on page 1356~1357.
* Set screws for End Mill Holders on page 1365.

1358 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 1359
