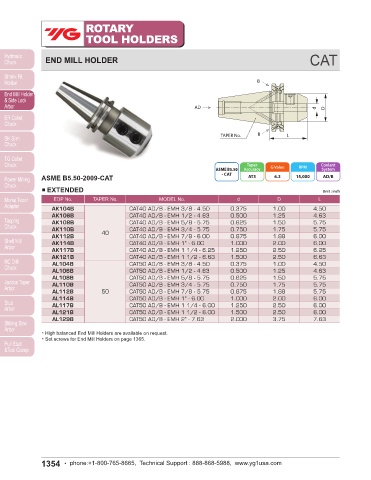

ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

END MILL HOLDER CAT END MILL HOLDER (Coolant Channel Type) CAT

B
B

AD d D
AD d D

TAPER No. B L B
TAPER No. L

Taper Coolant Taper Coolant
ASME B5.50 Accuracy G Value RPM System ASME B5.50 Accuracy G Value RPM System
ASME B5.50-2009-CAT - CAT AT3 6.3 15,000 AD/B - CAT AT3 6.3 15,000 AD/B+C
EXTENDED Unit : inch ASME B5.50-2009-CAT Unit : inch
EDP No. TAPER No. MODEL No. d D L EDP No. TAPER No. MODEL No. d D L
AK104B CAT40 AD/B - EMH 3/8 - 4.50 0.375 1.00 4.50 AK002C CAT40 AD/B - EMH 1/4C - 1.97 0.250 0.780 1.969
AK106B CAT40 AD/B - EMH 1/2 - 4.63 0.500 1.25 4.63 AK003C CAT40 AD/B - EMH 5/16C - 1.97 0.313 0.880 1.969
AK108B CAT40 AD/B - EMH 5/8 - 5.75 0.625 1.50 5.75 AK004C CAT40 AD/B - EMH 3/8C - 1.97 0.375 1.000 1.969
AK110B 40 CAT40 AD/B - EMH 3/4 - 5.75 0.750 1.75 5.75 AK005C 40 CAT40 AD/B - EMH 1/2C - 1.97 0.500 1.250 1.969
AK112B CAT40 AD/B - EMH 7/8 - 6.00 0.875 1.88 6.00 AK008C CAT40 AD/B - EMH 5/8C - 2.48 0.625 1.500 2.480
AK114B CAT40 AD/B - EMH 1" - 6.00 1.000 2.00 6.00 AK010C CAT40 AD/B - EMH 3/4C - 2.48 0.750 1.750 2.480
AK117B CAT40 AD/B - EMH 1 1/4 - 6.25 1.250 2.50 6.25 AK012C CAT40 AD/B - EMH 1C - 3.94 1.000 2.000 3.937
AK121B CAT40 AD/B - EMH 1 1/2 - 6.63 1.500 2.50 6.63 AK017C CAT40 AD/B - EMH 1 1/4C - 3.94 1.250 2.500 3.937
AL104B CAT50 AD/B - EMH 3/8 - 4.50 0.375 1.00 4.50 AL002C CAT50 AD/B - EMH 1/4C - 2.48 0.250 0.780 2.480
AL106B CAT50 AD/B - EMH 1/2 - 4.63 0.500 1.25 4.63 AL003C CAT50 AD/B - EMH 5/16C - 2.48 0.313 0.880 2.480
AL108B CAT50 AD/B - EMH 5/8 - 5.75 0.625 1.50 5.75 AL004C CAT50 AD/B - EMH 3/8C - 2.48 0.375 1.000 2.480
AL110B CAT50 AD/B - EMH 3/4 - 5.75 0.750 1.75 5.75 AL005C CAT50 AD/B - EMH 1/2C - 2.48 0.500 1.250 2.480
AL112B 50 CAT50 AD/B - EMH 7/8 - 5.75 0.875 1.88 5.75 AL008C 50 CAT50 AD/B - EMH 5/8C - 2.48 0.625 1.500 2.480
AL114B CAT50 AD/B - EMH 1" - 6.00 1.000 2.00 6.00 AL010C CAT50 AD/B - EMH 3/4C - 2.48 0.750 1.750 2.480
AL117B CAT50 AD/B - EMH 1 1/4 - 6.00 1.250 2.50 6.00 AL012C CAT50 AD/B - EMH 1C - 3.15 1.000 2.000 3.150
AL121B CAT50 AD/B - EMH 1 1/2 - 6.00 1.500 2.50 6.00 AL017C CAT50 AD/B - EMH 1 1/4C - 3.94 1.250 2.500 3.937
AL129B CAT50 AD/B - EMH 2" - 7.63 2.000 3.75 7.63
* High balanced End Mill Holders are available on request.
* Set screws for End Mill Holders on page 1365.
* High balanced End Mill Holders are available on request.
* Set screws for End Mill Holders on page 1365.
