Page 1371 - YG 2019

ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

CAT/BT NC

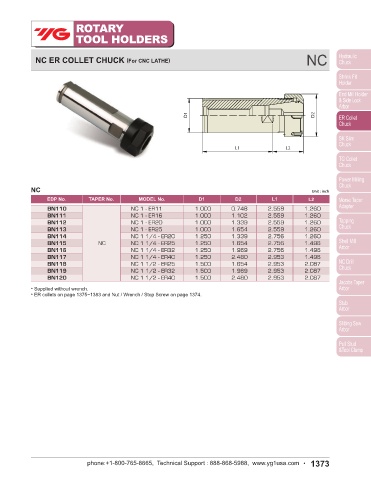

ER COLLET CHUCK (SHORT) NC ER COLLET CHUCK (For CNC LATHE)

RANGE

D1 D2
SW

TAPER No.
L L1 L2

ASME B5.50-2009-CAT Unit : inch
EDP No. TAPER No. MODEL No. L ER WRENCH
BK020SHT 40 CAT40 - ER32 - SHORT 1.063 32 (for Hex. Nut) NC
BL020SHT 50 CAT50 - ER32 - SHORT 1.063 32 (for Hex. Nut) Unit : inch
EDP No. TAPER No. MODEL No. D1 D2 L1 L2
JIS B6339/MAS 403-BT Unit : inch BN110 NC 1 - ER11 1.000 0.748 2.559 1.260
EDP No. TAPER No. MODEL No. L ER WRENCH BN111 NC 1 - ER16 1.000 1.102 2.559 1.260
BN112 NC 1 - ER20 1.000 1.339 2.559 1.260
BH020SHT 40 BT40 - ER32 - SHORT 1.378 32 (for Hex. Nut)
BN113 NC 1 - ER25 1.000 1.654 2.559 1.260
BN114 NC 1 1/4 - ER20 1.250 1.339 2.756 1.260
BN115 NC NC 1 1/4 - ER25 1.250 1.654 2.756 1.496
BN116 NC 1 1/4 - ER32 1.250 1.969 2.756 1.496
K BN117 NC 1 1/4 - ER40 1.250 2.480 2.953 1.496
TENSION ER COLLET CHUCK (For TAPPING) BN118 NC 1 1/2 - ER25 1.500 1.654 2.953 2.087
BN119 NC 1 1/2 - ER32 1.500 1.969 2.953 2.087
BN120 NC 1 1/2 - ER40 1.500 2.480 2.953 2.087

* Supplied without wrench.
RANGE * ER collets on page 1375~1383 and Nut / Wrench / Stop Screw on page 1374.

D1 D2

L

STRAIGHT-K Unit : inch
EDP No. TAPER No. MODEL No. D1 D2 L
BS110 K1 - ERT 16 - 2.76 1.000 1.102 2.756
BS111 K1 - ERT 20 - 3.15 1.000 1.339 3.150
BS112 K1 1/4 - ERT 16 - 2.76 1.250 1.102 2.756
BS113 K K1 1/4 - ERT 20 - 3.15 1.250 1.339 3.150
BS114 K1 1/4 - ERT 25 - 3.15 1.250 1.654 3.150
BS115 K1 1/4 - ERT 32 - 3.15 1.250 1.969 3.150
* Supplied without wrench.
* ER collets on page 1375~1383 and Nut / Wrench / Stop Screw on page 1374.
