ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

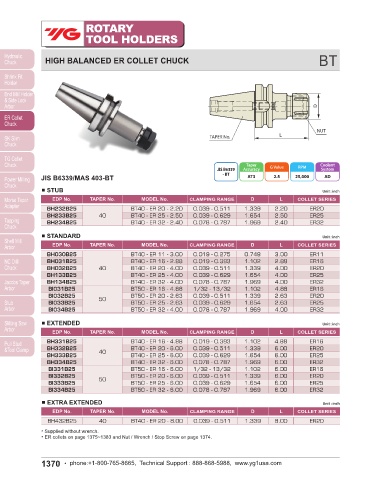

HIGH BALANCED ER COLLET CHUCK BT DUAL CONTACT ER COLLET CHUCK HSK

RANGE

D
D

NUT TAPER No. L
TAPER No. L

Taper Coolant Taper Coolant
JIS B6339 Accuracy G Value RPM System DIN 69893 Accuracy G Value RPM System
JIS B6339/MAS 403-BT - BT AT3 2.5 25,000 AD - HSK - 2.5 25,000 AD
STUB Unit : inch DIN 69893/ISO 12164-1-HSK FORM A Unit : inch
EDP No. TAPER No. MODEL No. CLAMPING RANGE D L COLLET SERIES EDP No. TAPER No. MODEL No. CLAMPING RANGE D L COLLET SERIES
BH232B25 BT40 - ER 20 - 2.20 0.039 - 0.511 1.339 2.20 ER20 BQ010 HSK63A - ER 16 - 3.94 0.019 - 0.393 1.10 3.94 ER16
BH233B25 40 BT40 - ER 25 - 2.50 0.039 - 0.629 1.654 2.50 ER25 BQ012 HSK63A - ER 20 - 3.94 0.039 - 0.511 1.33 3.94 ER20
BH234B25 BT40 - ER 32 - 2.40 0.078 - 0.787 1.969 2.40 ER32 BQ014 63A HSK63A - ER 25 - 3.94 0.039 - 0.629 1.65 3.94 ER25
BQ016 HSK63A - ER 32 - 3.94 0.078 - 0.787 1.96 3.94 ER32
STANDARD Unit : inch BQ018 HSK63A - ER 40 - 4.72 0.118 - 1.18 2.48 4.72 ER40
EDP No. TAPER No. MODEL No. CLAMPING RANGE D L COLLET SERIES BR010 HSK100A - ER 16 - 3.94 0.019 - 0.393 1.10 3.94 ER16
BR012 HSK100A - ER 20 - 3.94 0.039 - 0.511 1.33 3.94 ER20
BH030B25 BT40 - ER 11 - 3.00 0.019 - 0.275 0.748 3.00 ER11 BR014 100A HSK100A - ER 25 - 3.94 0.039 - 0.629 1.65 3.94 ER25
BH031B25 BT40 - ER 16 - 2.88 0.019 - 0.393 1.102 2.88 ER16 BR016 HSK100A - ER 32 - 3.94 0.078 - 0.787 1.96 3.94 ER32
BH032B25 40 BT40 - ER 20 - 4.00 0.039 - 0.511 1.339 4.00 ER20 BR018 HSK100A - ER 40 - 4.72 0.118 - 1.18 2.48 4.72 ER40
BH133B25 BT40 - ER 25 - 4.00 0.039 - 0.629 1.654 4.00 ER25
BH134B25 BT40 - ER 32 - 4.00 0.078 - 0.787 1.969 4.00 ER32 * Supplied without wrench.
BI031B25 BT50 - ER 16 - 4.88 1/32 - 13/32 1.102 4.88 ER16 * ER collets on page 1375~1383 and Nut / Wrench / Stop Screw on page 1374.
BI032B25 50 BT50 - ER 20 - 2.63 0.039 - 0.511 1.339 2.63 ER20
BI033B25 BT50 - ER 25 - 2.63 0.039 - 0.629 1.654 2.63 ER25
BI034B25 BT50 - ER 32 - 4.00 0.078 - 0.787 1.969 4.00 ER32

EXTENDED Unit : inch
EDP No. TAPER No. MODEL No. CLAMPING RANGE D L COLLET SERIES
BH331B25 BT40 - ER 16 - 4.88 0.019 - 0.393 1.102 4.88 ER16
BH332B25 40 BT40 - ER 20 - 6.00 0.039 - 0.511 1.339 6.00 ER20
BH333B25 BT40 - ER 25 - 6.00 0.039 - 0.629 1.654 6.00 ER25
BH334B25 BT40 - ER 32 - 6.00 0.078 - 0.787 1.969 6.00 ER32
BI331B25 BT50 - ER 16 - 6.00 1/32 - 13/32 1.102 6.00 ER16
BI332B25 BT50 - ER 20 - 6.00 0.039 - 0.511 1.339 6.00 ER20
BI333B25 50 BT50 - ER 25 - 6.00 0.039 - 0.629 1.654 6.00 ER25
BI334B25 BT50 - ER 32 - 6.00 0.078 - 0.787 1.969 6.00 ER32

EXTRA EXTENDED Unit : inch
EDP No. TAPER No. MODEL No. CLAMPING RANGE D L COLLET SERIES
BH432B25 40 BT40 - ER 20 - 8.00 0.039 - 0.511 1.339 8.00 ER20
* Supplied without wrench.
* ER collets on page 1375~1383 and Nut / Wrench / Stop Screw on page 1374.
