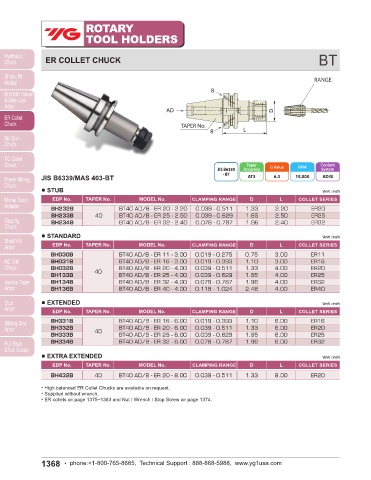

ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

ER COLLET CHUCK BT ER COLLET CHUCK BT

RANGE
B
D
AD D

TAPER No. L NUT
B L TAPER No.

Taper Coolant Taper Coolant
JIS B6339 Accuracy G Value RPM System JIS B6339 Accuracy G Value RPM System
JIS B6339/MAS 403-BT - BT AT3 6.3 15,000 AD/B JIS B6339/MAS 403-BT - BT AT3 6.3 15,000 AD
STUB Unit : inch STANDARD Unit : inch
EDP No. TAPER No. MODEL No. CLAMPING RANGE D L COLLET SERIES EDP No. TAPER No. MODEL No. CLAMPING RANGE D L COLLET SERIES
BH232B BT40 AD/B - ER 20 - 2.20 0.039 - 0.511 1.33 2.20 ER20 BI031 BT50 - ER 16 - 4.88 0.019 - 0.393 1.102 4.88 ER16
BH233B 40 BT40 AD/B - ER 25 - 2.50 0.039 - 0.629 1.65 2.50 ER25 BI032 50 BT50 - ER 20 - 2.63 0.039 - 0.511 1.339 2.63 ER20
BH234B BT40 AD/B - ER 32 - 2.40 0.078 - 0.787 1.96 2.40 ER32 BI033 BT50 - ER 25 - 2.63 0.039 - 0.629 1.654 2.63 ER25
BI034 BT50 - ER 32 - 4.00 0.078 - 0.787 1.969 4.00 ER32
STANDARD Unit : inch
EDP No. TAPER No. MODEL No. CLAMPING RANGE D L COLLET SERIES EXTENDED Unit : inch
BH030B BT40 AD/B - ER 11 - 3.00 0.019 - 0.275 0.75 3.00 ER11 EDP No. TAPER No. MODEL No. CLAMPING RANGE D L COLLET SERIES
BH031B BT40 AD/B - ER 16 - 3.00 0.019 - 0.393 1.10 3.00 ER16 BI331 BT50 - ER 16 - 6.00 0.019 - 0.393 1.102 6.00 ER16
BH032B BT40 AD/B - ER 20 - 4.00 0.039 - 0.511 1.33 4.00 ER20 BI332 BT50 - ER 20 - 6.00 0.039 - 0.511 1.339 6.00 ER20
BH133B 40 BT40 AD/B - ER 25 - 4.00 0.039 - 0.629 1.65 4.00 ER25 BI333 50 BT50 - ER 25 - 6.00 0.039 - 0.629 1.654 6.00 ER25
BH134B BT40 AD/B - ER 32 - 4.00 0.078 - 0.787 1.96 4.00 ER32 BI334 BT50 - ER 32 - 6.00 0.078 - 0.787 1.969 6.00 ER32
BH136B BT40 AD/B - ER 40 - 4.00 0.118 - 1.024 2.48 4.00 ER40
* High balanced ER Collet Chucks are on page 72.
EXTENDED Unit : inch * Supplied without wrench.
* ER collets on page 1375~1383 and Nut / Wrench / Stop Screw on page 1374.
EDP No. TAPER No. MODEL No. CLAMPING RANGE D L COLLET SERIES
BH331B BT40 AD/B - ER 16 - 6.00 0.019 - 0.393 1.10 6.00 ER16
BH332B BT40 AD/B - ER 20 - 6.00 0.039 - 0.511 1.33 6.00 ER20
BH333B 40 BT40 AD/B - ER 25 - 6.00 0.039 - 0.629 1.65 6.00 ER25
BH334B BT40 AD/B - ER 32 - 6.00 0.078 - 0.787 1.96 6.00 ER32
EXTRA EXTENDED Unit : inch
EDP No. TAPER No. MODEL No. CLAMPING RANGE D L COLLET SERIES
BH432B 40 BT40 AD/B - ER 20 - 8.00 0.039 - 0.511 1.33 8.00 ER20

* High balanced ER Collet Chucks are available on request.
* Supplied without wrench.
* ER collets on page 1375~1383 and Nut / Wrench / Stop Screw on page 1374.
