ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

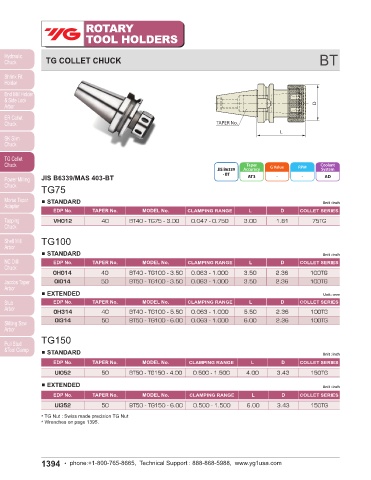

TG COLLET CHUCK BT TG NUT

TG NUT

EDP No. SERIES
D
ZZ084 TG75-NUT
ZZ081 TG100-NUT
TAPER No.
ZZ087 TG150-NUT
L

Taper Coolant
JIS B6339 Accuracy G Value RPM System
JIS B6339/MAS 403-BT - BT AT3 - - AD
TG75 TG WRENCH
STANDARD Unit : inch
EDP No. TAPER No. MODEL No. CLAMPING RANGE L D COLLET SERIES TG WRENCH

VH012 40 BT40 - TG75 - 3.00 0.047 - 0.750 3.00 1.81 75TG EDP No. SERIES
ZZ085 TG75
TG100 ZZ082 TG100
ZZ088 TG150
STANDARD Unit : inch
EDP No. TAPER No. MODEL No. CLAMPING RANGE L D COLLET SERIES
OH014 40 BT40 - TG100 - 3.50 0.063 - 1.000 3.50 2.36 100TG
OI014 50 BT50 - TG100 - 3.50 0.063 - 1.000 3.50 2.36 100TG
EXTENDED Unit : mm
EDP No. TAPER No. MODEL No. CLAMPING RANGE L D COLLET SERIES
OH314 40 BT40 - TG100 - 5.50 0.063 - 1.000 5.50 2.36 100TG
OI314 50 BT50 - TG100 - 6.00 0.063 - 1.000 6.00 2.36 100TG

TG150 TG STOP SCREW

STANDARD Unit : inch
EDP No. TAPER No. MODEL No. CLAMPING RANGE L D COLLET SERIES TG STOP SCREW
UI052 50 BT50 - TG150 - 4.00 0.500 - 1.500 4.00 3.43 150TG EDP No. SERIES
EXTENDED Unit : inch ZZ086 TG75
ZZ083 TG100
EDP No. TAPER No. MODEL No. CLAMPING RANGE L D COLLET SERIES
ZZ089 TG150
UI352 50 BT50 - TG150 - 6.00 0.500 - 1.500 6.00 3.43 150TG
* TG Nut : Swiss made precision TG Nut
* Wrenches on page 1395.
