ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

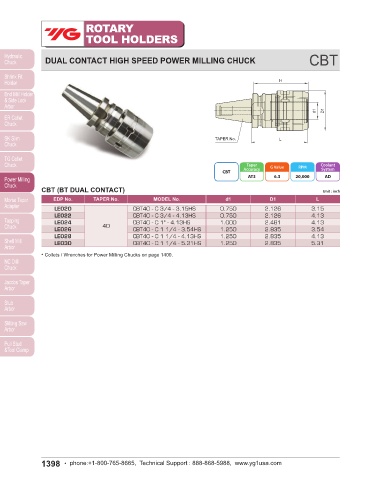

DUAL CONTACT HIGH SPEED POWER MILLING CHUCK CBT DUAL CONTACT HIGH SPEED POWER MILLING CHUCK HSK

H
H

d1 D1 d1 D1

TAPER No.
TAPER No. L L

Taper Coolant Taper Coolant
Accuracy G Value RPM System DIN 69893 Accuracy G Value RPM System
CBT - HSK
AT3 6.3 20,000 AD - 6.3 20,000 AD
CBT (BT DUAL CONTACT) Unit : inch DIN 69893/ISO 12164-1-HSK FORM A Unit : inch
EDP No. TAPER No. MODEL No. d1 D1 L EDP No. TAPER No. MODEL No. d1 D1 L
LE020 CBT40 - C 3/4 - 3.15HS 0.750 2.126 3.15 LQ020 HSK63 A - C 3/4 - 4.13HS 0.750 2.126 4.13
LE022 CBT40 - C 3/4 - 4.13HS 0.750 2.126 4.13 LQ022 63A HSK63 A - C 1" - 4.72HS 1.000 2.461 4.72
LE024 CBT40 - C 1" - 4.13HS 1.000 2.461 4.13 LQ024 HSK63 A - C 1 1/4 - 5.31HS 1.250 2.835 5.31
LE026 40 CBT40 - C 1 1/4 - 3.54HS 1.250 2.835 3.54 LR020 HSK100 A - C 3/4 - 4.33HS 0.750 2.126 4.33
LE028 CBT40 - C 1 1/4 - 4.13HS 1.250 2.835 4.13 LR022 100A HSK100 A - C 1" - 5.12HS 1.000 2.461 5.12
LE030 CBT40 - C 1 1/4 - 5.31HS 1.250 2.835 5.31 LR024 HSK100 A - C 1 1/4 - 5.31HS 1.250 2.835 5.31

* Collets / Wrenches for Power Milling Chucks on page 1400. * Collets / Wrenches for Power Milling Chucks on page 1400.
