ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

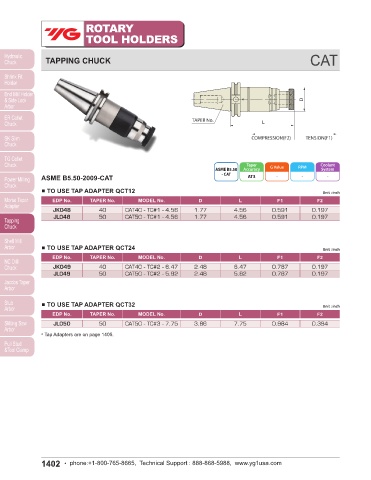

TAPPING CHUCK CAT TAPPING CHUCK BT

D D

TAPER No.
TAPER No. L L

COMPRESSION(F2) TENSION(F1) COMPRESSION(F2) TENSION(F1)

Taper Coolant Taper Coolant
ASME B5.50 Accuracy G Value RPM System JIS B6339 Accuracy G Value RPM System
ASME B5.50-2009-CAT - CAT AT3 - - - JIS B6339/MAS 403-BT - BT AT3 - - -
TO USE TAP ADAPTER QCT12 Unit : inch TO USE TAP ADAPTER QCT12 Unit : inch
EDP No. TAPER No. MODEL No. D L F1 F2 EDP No. TAPER No. MODEL No. D L F1 F2
JK048 40 CAT40 - TC#1 - 4.56 1.77 4.56 0.591 0.197 JH048 40 BT40 - TC#1 - 4.53 1.77 4.53 0.591 0.197
JL048 50 CAT50 - TC#1 - 4.56 1.77 4.56 0.591 0.197 JI048 50 BT50 - TC#1 - 4.64 1.77 4.64 0.591 0.197

TO USE TAP ADAPTER QCT24 Unit : inch TO USE TAP ADAPTER QCT24 Unit : inch
EDP No. TAPER No. MODEL No. D L F1 F2 EDP No. TAPER No. MODEL No. D L F1 F2
JK049 40 CAT40 - TC#2 - 6.47 2.48 6.47 0.787 0.197 JH049 40 BT40 - TC#2 - 6.72 2.48 6.72 0.787 0.197
JL049 50 CAT50 - TC#2 - 5.82 2.48 5.82 0.787 0.197 JI049 50 BT50 - TC#2 - 6.72 2.48 6.72 0.787 0.197

TO USE TAP ADAPTER QCT32 Unit : inch TO USE TAP ADAPTER QCT38 Unit : inch
EDP No. TAPER No. MODEL No. D L F1 F2 EDP No. TAPER No. MODEL No. D L F1 F2
JL050 50 CAT50 - TC#3 - 7.75 3.86 7.75 0.984 0.394 JI050 50 BT50 - TC#3 - 8.33 3.86 8.33 0.984 0.394
* Tap Adapters are on page 1405. * Tap Adapters are on page 1405.
