Page 1415 - YG 2019

ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

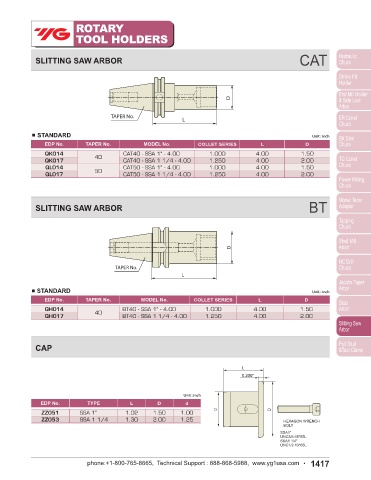

NUT SLITTING SAW ARBOR CAT

Unit : inch
EDP No. TYPE (M) L D SERIES
D
ZZ041 UNF 1 - 12 1.00 1.56 STUB 1”
ZZ046 UNF 11/4 - 12 1.25 1.87 STUB 1 1/4
ZZ052 UNF 11/2 - 12 1.50 2.12 STUB 1 1/2 TAPER No.
L

STANDARD Unit : inch
EDP No. TAPER No. MODEL No. COLLET SERIES L D
QK014 CAT40 - SSA 1" - 4.00 1.000 4.00 1.50
QK017 40 CAT40 - SSA 1 1/4 - 4.00 1.250 4.00 2.00
KEY QL014 50 CAT50 - SSA 1" - 4.00 1.000 4.00 1.50
QL017 CAT50 - SSA 1 1/4 - 4.00 1.250 4.00 2.00

Unit : inch
EDP No. SERIES B
ZZ042 STUB 1" 0.25 SLITTING SAW ARBOR BT
ZZ047 STUB 1 1/4 0.312
ZZ054 STUB 1 1/2 0.375

D

SPACER TAPER No.

L

STANDARD Unit : inch
EDP No. TAPER No. MODEL No. COLLET SERIES L D
QH014 40 BT40 - SSA 1" - 4.00 1.000 4.00 1.50
QH017 BT40 - SSA 1 1/4 - 4.00 1.250 4.00 2.00

Unit : inch
EDP No. TYPE H D d SERIES CAP
ZZ043 1/4 - SPACER 0.25 1.56 1.00 STUB 1"
ZZ044 3/8 - SPACER 0.375 1.56 1.00 STUB 1"
ZZ045 3/4 - SPACER 0.75 1.56 1.00 STUB 1"

EDP No. TYPE H D d SERIES
ZZ048 1/4 - SPACER 0.25 1.87 1.25 STUB 1 1/4
ZZ049 3/8 - SPACER 0.375 1.87 1.25 STUB 1 1/4 Unit : inch
ZZ050 3/4 - SPACER 0.75 1.87 1.25 STUB 1 1/4 EDP No. TYPE L D d
ZZ051 SSA 1" 1.02 1.50 1.00
EDP No. TYPE H D d SERIES ZZ053 SSA 1 1/4 1.30 2.00 1.25
ZZ037 1/4 - SPACER 0.25 2.12 1.50 STUB 1 1/2
ZZ038 3/8 - SPACER 0.375 2.12 1.50 STUB 1 1/2
ZZ039 3/4 - SPACER 0.75 2.12 1.50 STUB 1 1/2

1416 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 1417
