ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

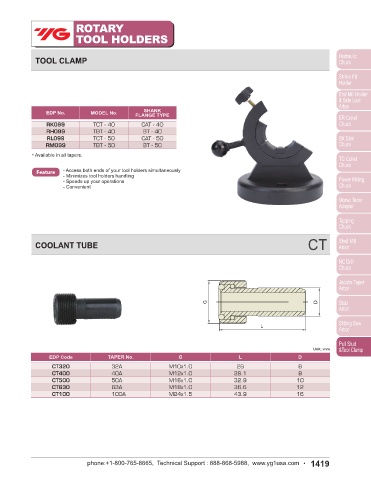

PULL STUD TOOL CLAMP

SHANK
EDP No. MODEL No. FLANGE TYPE
RK099 TCT - 40 CAT - 40
RH099 TBT - 40 BT - 40
RL099 TCT - 50 CAT - 50
RM099 TBT - 50 BT - 50
* Available in all tapers.

Feature - Access both ends of your tool holders simultaneously
- Minimizes tool holders handling
- Speeds up your operations
- Convenient
Unit : inch
EDP NO. MODEL No. ANGLE S P D3 A N D W M
SK661 CAT - 40ANSI C 45° 0.740 0.490 0.490 1.500 0.440 0.640 0.120 5/8 - 11
SL661 CAT - 50ANSI C 45° 1.140 0.820 0.820 2.300 0.700 1.000 0.200 1 - 8
SK561 CAT - 40ANSI 45° 0.740 0.490 0.490 1.500 0.440 0.640 0.120 5/8 - 11
SL561 CAT - 50ANSI 45° 1.140 0.820 0.820 2.300 0.700 1.000 0.200 1 - 8
SK761 CAT - 40TYPEⅠ 45° 0.590 0.394 0.512 2.250 0.990 1.266 0.120 5/8 - 11
SK762 CAT - 40TYPEⅡ 60° 0.590 0.394 0.512 2.250 0.990 1.266 0.120 5/8 - 11 COOLANT TUBE CT
SK763 CAT - 40TYPEⅢ 90° 0.590 0.394 0.512 2.250 0.990 1.266 0.120 5/8 - 11
SK861 CAT - 40TYPEⅠ C 45° 0.590 0.394 0.512 2.250 0.990 1.266 0.120 5/8 - 11
SK862 CAT - 40TYPEⅡ C 60° 0.590 0.394 0.512 2.250 0.990 1.266 0.120 5/8 - 11
SK863 CAT - 40TYPEⅢ C 90° 0.590 0.394 0.512 2.250 0.990 1.266 0.120 5/8 - 11
SL761 CAT - 50TYPEⅠ 45° 0.906 0.669 0.827 3.346 1.377 1.772 0.390 1 - 8
SL762 CAT - 50TYPEⅡ 60° 0.906 0.669 0.827 3.346 1.377 1.772 0.390 1 - 8
SL763 CAT - 50TYPEⅢ 90° 0.906 0.669 0.827 3.346 1.377 1.772 0.390 1 - 8
SL861 CAT - 50TYPEⅠ C 45° 0.906 0.669 0.827 3.346 1.377 1.772 0.390 1 - 8 G D
SL862 CAT - 50TYPEⅡ C 60° 0.906 0.669 0.827 3.346 1.377 1.772 0.390 1 - 8
SL863 CAT - 50TYPEⅢ C 90° 0.906 0.669 0.827 3.346 1.377 1.772 0.390 1 - 8
SH061 BT - 40PS 1 45° 0.590 0.394 0.669 2.360 1.102 1.378 0.230 M16
SI061 BT - 50PS 5 45° 0.905 0.669 0.984 3.346 1.377 1.772 0.390 M24 L
SH062 BT - 40PS 2 60° 0.590 0.394 0.669 2.360 1.102 1.378 0.230 M16
SI062 BT - 50PS 6 60° 0.905 0.669 0.984 3.346 1.377 1.772 0.390 M24
SH063 BT - 40PS 8 90° 0.590 0.394 0.669 2.360 1.102 1.378 0.230 M16 Unit : mm
SI063 BT - 50PS 0 90° 0.905 0.669 0.984 3.346 1.377 1.772 0.390 M24 EDP Code TAPER No. G L D
SK161 CAT - 40TYPEⅠ 45° 0.590 0.394 0.512 2.250 0.990 1.266 0.236 5/8 - 11
SK162 CAT - 40TYPEⅡ 60° 0.590 0.394 0.512 2.250 0.990 1.266 0.236 5/8 - 11 CT320 32A M10x1.0 26 6
SK163 CAT - 40TYPEⅢ 90° 0.590 0.394 0.512 2.250 0.990 1.266 0.236 5/8 - 11 CT400 40A M12x1.0 29.1 8
SK261 CAT - 40TYPEⅠ C 45° 0.590 0.394 0.512 2.250 0.990 1.266 0.236 5/8 - 11 CT500 50A M16x1.0 32.9 10
SK262 CAT - 40TYPEⅡ C 60° 0.590 0.394 0.512 2.250 0.990 1.266 0.236 5/8 - 11 CT630 63A M18x1.0 36.6 12
SK263 CAT - 40TYPEⅢ C 90° 0.590 0.394 0.512 2.250 0.990 1.266 0.236 5/8 - 11 CT100 100A M24x1.5 43.9 16
* Suffix “C” in MODEL No. is through coolant type.
* Improper selection of pull studs can cause serious damage and possible injury.
Please make sure the machine accepts the pull stud you select.
