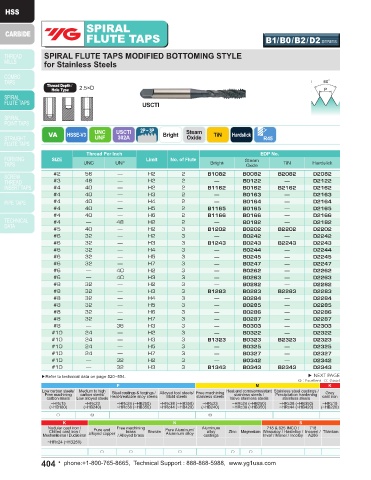

SPIRAL SPIRAL
FLUTE TAPS B1/B0/B2/D2 SERIES FLUTE TAPS B1/B0/B2/D2 SERIES

SPIRAL FLUTE TAPS MODIFIED BOTTOMING STYLE SPIRAL FLUTE TAPS MODIFIED BOTTOMING STYLE
for Stainless Steels for Stainless Steels

Thread Depth / 2.5×D Thread Depth / 2.5×D
Hole Type Hole Type

USCTI USCTI

VA HSSE-V3 UNC USCTI Bright Steam TiN Hardslick R45 VA HSSE-V3 UNC USCTI Bright Steam TiN Hardslick R45
302A
UNF
Oxide
302A
Oxide
UNF
Thread Per Inch EDP No. Thread Per Inch EDP No.
SIZE Limit No. of Flute Steam SIZE Limit No. of Flute Steam
UNC UNF Bright TiN Hardslick UNC UNF Bright TiN Hardslick
Oxide Oxide
#2 56 — H2 2 B1082 B0082 B2082 D2082 #10 — 32 H4 3 — B0344 — D2344
#3 48 — H2 2 — B0122 — D2122 #10 — 32 H5 3 — B0345 — D2345
#4 40 — H2 2 B1162 B0162 B2162 D2162 #10 — 32 H6 3 — B0346 — D2346
#4 40 — H3 2 — B0163 — D2163 #10 — 32 H7 3 — B0347 — D2347
#4 40 — H4 2 — B0164 — D2164 #12 24 — H3 3 — B0363 — D2363
#4 40 — H5 2 B1165 B0165 — D2165 #12 28 — H3 3 — B0383 — D2383
#4 40 — H6 2 B1166 B0166 — D2166 1/4 20 — H2 3 — B0402 — D2402
#4 — 48 H2 2 — B0182 — D2182 1/4 20 — H3 3 B1403 B0403 B2403 D2403
#5 40 — H2 3 B1202 B0202 B2202 D2202 1/4 20 — H5 3 B1405 B0405 B2405 D2405
#6 32 — H2 3 — B0242 — D2242 1/4 20 — H7 3 — B0407 — D2407
#6 32 — H3 3 B1243 B0243 B2243 D2243 1/4 — 28 H2 3 — B0422 — D2422
#6 32 — H4 3 — B0244 — D2244 1/4 — 28 H3 3 B1423 B0423 B2423 D2423
#6 32 — H5 3 — B0245 — D2245 1/4 — 28 H4 3 — B0424 — D2424
#6 32 — H7 3 — B0247 — D2247 1/4 — 28 H5 3 — B0425 — D2425
#6 — 40 H2 3 — B0262 — D2262 1/4 — 28 H6 3 — B0426 — D2426
#6 — 40 H3 3 — B0263 — D2263 1/4 — 28 H7 3 — B0427 — D2427
#8 32 — H2 3 — B0282 — D2282 5/16 18 — H3 3 B1443 B0443 B2443 D2443
#8 32 — H3 3 B1283 B0283 B2283 D2283 5/16 18 — H5 3 B1445 B0445 B2445 D2445
#8 32 — H4 3 — B0284 — D2284 5/16 18 — H7 3 — B0447 — D2447
#8 32 — H5 3 — B0285 — D2285 5/16 — 24 H3 3 B1463 B0463 B2463 D2463
#8 32 — H6 3 — B0286 — D2286 5/16 — 24 H4 3 — B0464 — D2464
#8 32 — H7 3 — B0287 — D2287 5/16 — 24 H5 3 — B0465 — D2465
#8 — 36 H3 3 — B0303 — D2303 5/16 — 24 H7 3 — B0467 — D2467
#10 24 — H2 3 — B0322 — D2322 3/8 16 — H3 3 B1483 B0483 B2483 D2483
#10 24 — H3 3 B1323 B0323 B2323 D2323 3/8 16 — H5 3 B1485 B0485 B2485 D2485
#10 24 — H5 3 — B0325 — D2325 3/8 16 — H7 3 — B0487 — D2487
#10 24 — H7 3 — B0327 — D2327 3/8 — 24 H3 3 B1503 B0503 B2503 D2503
#10 — 32 H2 3 — B0342 — D2342 3/8 — 24 H4 3 — B0504 — D2504
#10 — 32 H3 3 B1343 B0343 B2343 D2343 3/8 — 24 H5 3 — B0505 — D2505
▶Refer to technical data on page 520~554. ▶ NEXT PAGE ▶Refer to technical data on page 520~554. ▶ NEXT PAGE
◎ : Excellent ○: Good ◎ : Excellent ○: Good
P M K P M K
Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey
Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron
carbon steels Low alloyed steels Valve stainless steels stainless steels carbon steels Low alloyed steels Valve stainless steels stainless steels
~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19 ~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19
(~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220) (~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220)
○ ◎ ◎ ○ ◎ ◎
K N S K N S
Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718 Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718
Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium
Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286 Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286
~HRc24 (~HB250) ~HRc24 (~HB250)
○ ○ ○ ○ ○ ○ ○ ○ ○ ○
