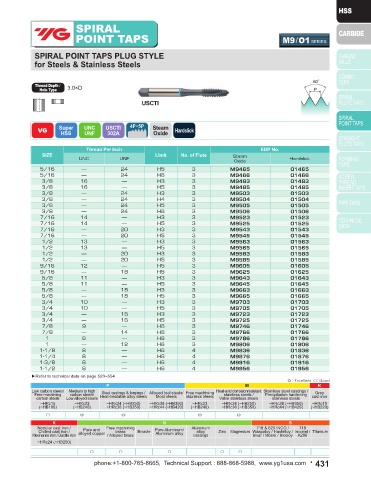

Page 431 - YG 2019

SPIRAL SPIRAL
POINT TAPS M9 / O1 SERIES POINT TAPS M9 / O1 SERIES

SPIRAL POINT TAPS PLUG STYLE SPIRAL POINT TAPS PLUG STYLE
for Steels & Stainless Steels for Steels & Stainless Steels

Thread Depth / 3.0×D Thread Depth / 3.0×D
Hole Type Hole Type
USCTI USCTI

VG Super UNC USCTI 4P~5P Steam Hardslick VG Super UNC USCTI 4P~5P Steam Hardslick
Oxide
Oxide
HSS
UNF
HSS
UNF
302A
302A
Thread Per Inch EDP No. Thread Per Inch EDP No.
SIZE Limit No. of Flute Steam SIZE Limit No. of Flute Steam
UNC UNF Hardslick UNC UNF Hardslick
Oxide Oxide
#2 56 — H2 2 M9082 O1082 5/16 — 24 H5 3 M9465 O1465
#4 40 — H2 2 M9162 O1162 5/16 — 24 H6 3 M9466 O1466
#4 40 — H3 2 M9163 O1163 3/8 16 — H3 3 M9483 O1483
#4 40 — H4 2 M9164 O1164 3/8 16 — H5 3 M9485 O1485
#4 40 — H5 2 M9165 O1165 3/8 — 24 H3 3 M9503 O1503
#5 40 — H2 3 M9202 O1202 3/8 — 24 H4 3 M9504 O1504
#6 32 — H2 3 M9242 O1242 3/8 — 24 H5 3 M9505 O1505
#6 32 — H3 3 M9243 O1243 3/8 — 24 H6 3 M9506 O1506
#6 32 — H4 3 M9244 O1244 7/16 14 — H3 3 M9523 O1523
#6 32 — H5 3 M9245 O1245 7/16 14 — H5 3 M9525 O1525
#6 32 — H6 3 M9246 O1246 7/16 — 20 H3 3 M9543 O1543
#8 32 — H2 3 M9282 O1282 7/16 — 20 H5 3 M9545 O1545
#8 32 — H3 3 M9283 O1283 1/2 13 — H3 3 M9563 O1563
#8 32 — H4 3 M9284 O1284 1/2 13 — H5 3 M9565 O1565
#8 32 — H5 3 M9285 O1285 1/2 — 20 H3 3 M9583 O1583
#8 32 — H6 3 M9286 O1286 1/2 — 20 H5 3 M9585 O1585
#10 24 — H3 3 M9323 O1323 9/16 12 — H5 3 M9605 O1605
#10 24 — H5 3 M9325 O1325 9/16 — 18 H5 3 M9625 O1625
#10 — 32 H2 3 M9342 O1342 5/8 11 — H3 3 M9643 O1643
#10 — 32 H3 3 M9343 O1343 5/8 11 — H5 3 M9645 O1645
#10 — 32 H4 3 M9344 O1344 5/8 — 18 H3 3 M9663 O1663
#10 — 32 H5 3 M9345 O1345 5/8 — 18 H5 3 M9665 O1665
#10 — 32 H6 3 M9346 O1346 3/4 10 — H3 3 M9703 O1703
1/4 20 — H3 3 M9403 O1403 3/4 10 — H5 3 M9705 O1705
1/4 20 — H5 3 M9405 O1405 3/4 — 16 H3 3 M9723 O1723
1/4 — 28 H3 3 M9423 O1423 3/4 — 16 H5 3 M9725 O1725
1/4 — 28 H4 3 M9424 O1424 7/8 9 — H6 3 M9746 O1746
1/4 — 28 H5 3 M9425 O1425 7/8 — 14 H6 3 M9766 O1766
1/4 — 28 H6 3 M9426 O1426 1 8 — H6 3 M9786 O1786
5/16 18 — H3 3 M9443 O1443 1 — 12 H6 3 M9806 O1806
5/16 18 — H5 3 M9445 O1445 1-1/8 8 — H6 4 M9836 O1836
5/16 — 24 H3 3 M9463 O1463 1-1/4 8 — H6 4 M9876 O1876
5/16 — 24 H4 3 M9464 O1464 1-3/8 8 — H6 4 M9916 O1916
▶Refer to technical data on page 520~554. ▶ NEXT PAGE 1-1/2 8 — H6 4 M9956 O1956
▶Refer to technical data on page 520~554.
◎ : Excellent ○: Good ◎ : Excellent ○: Good
P M K P M K
Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey
Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron
carbon steels Low alloyed steels Valve stainless steels stainless steels carbon steels Low alloyed steels Valve stainless steels stainless steels
~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19 ~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19
(~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220) (~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220)
○ ◎ ◎ ◎ ◎ ○ ◎ ◎ ◎ ◎
K N S K N S
Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718 Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718
Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium
Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286 Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286
~HRc24 (~HB250) ~HRc24 (~HB250)
○ ○ ○ ○ ○ ○ ○ ○ ○ ○
