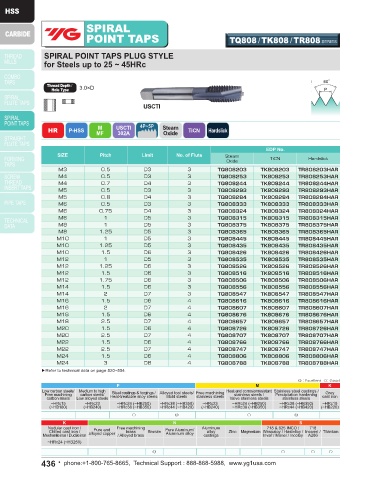

Page 436 - YG 2019

SPIRAL SPIRAL
POINT TAPS TQ808 / TK808 / TR808 SERIES POINT TAPS I3/M8/I5/J6 SERIES

SPIRAL POINT TAPS PLUG STYLE SPIRAL POINT TAPS PLUG STYLE
for Steels up to 25 ~ 45HRc for Titanium Alloys & Nickel Base Alloys up to 38 ~ 45HRc

Thread Depth / 3.0×D Thread Depth / 3.0×D
Hole Type Hole Type

USCTI USCTI

M
HR P-HSS MF USCTI 4P~5P Steam TiCN Hardslick Ti P-HSS UNC USCTI 4P~5P Steam Bright TiCN Hardslick
Ni
Oxide
Oxide
UNF
302A
302A
EDP No. Thread Per Inch EDP No.
SIZE Pitch Limit No. of Flute Steam SIZE Limit No. of Flute Steam
Oxide TiCN Hardslick UNC UNF Oxide Bright TiCN Hardslick
M3 0.5 D3 3 TQ808203 TK808203 TR808203HAR #2 56 — H2 2 I3082 M8082 I5082 J6082
M4 0.5 D3 3 TQ808253 TK808253 TR808253HAR #4 40 — H2 2 I3162 M8162 I5162 J6162
M4 0.7 D4 3 TQ808244 TK808244 TR808244HAR #5 40 — H2 3 I3202 M8202 I5202 J6202
M5 0.5 D3 3 TQ808293 TK808293 TR808293HAR #6 32 — H3 3 I3243 M8243 I5243 J6243
M5 0.8 D4 3 TQ808284 TK808284 TR808284HAR #8 32 — H3 3 I3283 M8283 I5283 J6283
M6 0.5 D3 3 TQ808333 TK808333 TR808333HAR #10 24 — H3 3 I3323 M8323 I5323 J6323
M6 0.75 D4 3 TQ808324 TK808324 TR808324HAR #10 — 32 H3 3 I3343 M8343 I5343 J6343
M6 1 D5 3 TQ808315 TK808315 TR808315HAR 1/4 20 — H3 3 I3403 M8403 I5403 J6403
M8 1 D5 3 TQ808375 TK808375 TR808375HAR 1/4 20 — H5 3 I3405 M8405 I5405 J6405
M8 1.25 D5 3 TQ808365 TK808365 TR808365HAR 1/4 — 28 H3 3 I3423 M8423 I5423 J6423
M10 1 D5 3 TQ808445 TK808445 TR808445HAR
M10 1.25 D5 3 TQ808435 TK808435 TR808435HAR 1/4 — 28 H4 3 I3424 M8424 I5424 J6424
M10 1.5 D6 3 TQ808426 TK808426 TR808426HAR 5/16 18 — H3 3 I3443 M8443 I5443 J6443
M12 1 D5 3 TQ808535 TK808535 TR808535HAR 5/16 18 — H5 3 I3445 M8445 I5445 J6445
M12 1.25 D6 3 TQ808526 TK808526 TR808526HAR 5/16 — 24 H3 3 I3463 M8463 I5463 J6463
M12 1.5 D6 3 TQ808516 TK808516 TR808516HAR 3/8 16 — H3 3 I3483 M8483 I5483 J6483
M12 1.75 D6 3 TQ808506 TK808506 TR808506HAR 3/8 16 — H5 3 I3485 M8485 I5485 J6485
M14 1.5 D6 3 TQ808556 TK808556 TR808556HAR 3/8 — 24 H3 3 I3503 M8503 I5503 J6503
M14 2 D7 3 TQ808547 TK808547 TR808547HAR 3/8 — 24 H4 3 I3504 M8504 I5504 J6504
M16 1.5 D6 4 TQ808616 TK808616 TR808616HAR 7/16 14 — H3 3 I3523 M8523 I5523 J6523
M16 2 D7 4 TQ808607 TK808607 TR808607HAR 7/16 14 — H5 3 I3525 M8525 I5525 J6525
M18 1.5 D6 4 TQ808676 TK808676 TR808676HAR 7/16 — 20 H3 3 I3543 M8543 I5543 J6543
M18 2.5 D7 4 TQ808657 TK808657 TR808657HAR 7/16 — 20 H5 3 I3545 M8545 I5545 J6545
M20 1.5 D6 4 TQ808726 TK808726 TR808726HAR 1/2 13 — H3 3 I3563 M8563 I5563 J6563
M20 2.5 D7 4 TQ808707 TK808707 TR808707HAR 1/2 13 — H5 3 I3565 M8565 I5565 J6565
M22 1.5 D6 4 TQ808766 TK808766 TR808766HAR 1/2 — 20 H3 3 I3583 M8583 I5583 J6583
M22 2.5 D7 4 TQ808747 TK808747 TR808747HAR 1/2 — 20 H5 3 I3585 M8585 I5585 J6585
M24 1.5 D6 4 TQ808806 TK808806 TR808806HAR ▶Refer to technical data on page 520~554.
M24 3 D8 4 TQ808788 TK808788 TR808788HAR ▶ NEXT PAGE
▶Refer to technical data on page 520~554.
◎ : Excellent ○: Good ◎ : Excellent ○: Good
P M K P M K
Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey
Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron
carbon steels Low alloyed steels Valve stainless steels stainless steels carbon steels Low alloyed steels Valve stainless steels stainless steels
~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19 ~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19
(~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220) (~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220)
○ ◎ ○ ◎
K N S K N S
Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718 Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718
Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium
Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286 Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286
~HRc24 (~HB250) ~HRc24 (~HB250)
◎ ○ ○ ○ ◎ ◎ ◎
