SPIRAL SPIRAL

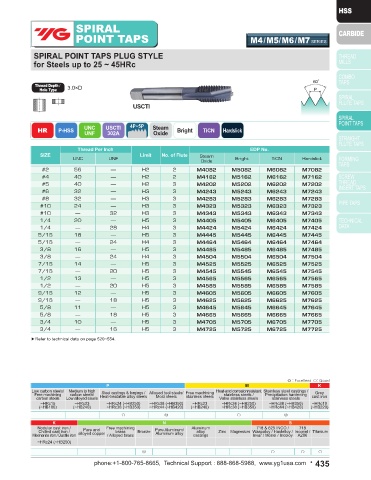

POINT TAPS N3 / O3 SERIES POINT TAPS M4/M5/M6/M7 SERIES

METRIC SPIRAL POINT TAPS PLUG STYLE SPIRAL POINT TAPS PLUG STYLE
for Steels & Stainless Steels for Steels up to 25 ~ 45HRc

Thread Depth / 3.0×D Thread Depth / 3.0×D
Hole Type Hole Type

DIN Length-ANSI Shank USCTI

M
HR Super MF 4P~5P Steam Hardslick HR P-HSS UNC USCTI 4P~5P Steam Bright TiCN Hardslick
Oxide
Oxide
HSS
302A
UNF
EDP No. Thread Per Inch EDP No.
SIZE Pitch Limit No. of Flute Steam SIZE Limit No. of Flute Steam
Oxide Hardslick UNC UNF Oxide Bright TiCN Hardslick
M3 0.5 D3 3 N3203 O3203 #2 56 — H2 2 M4082 M5082 M6082 M7082
M3.5 0.6 D4 3 N3224 O3224 #4 40 — H2 2 M4162 M5162 M6162 M7162
M4 0.7 D4 3 N3244 O3244 #5 40 — H2 3 M4202 M5202 M6202 M7202
M5 0.8 D4 3 N3284 O3284 #6 32 — H3 3 M4243 M5243 M6243 M7243
M6 1.0 D5 3 N3315 O3315 #8 32 — H3 3 M4283 M5283 M6283 M7283
M7 1.0 D5 3 N3345 O3345 #10 24 — H3 3 M4323 M5323 M6323 M7323
M8 1.25 D5 3 N3365 O3365 #10 — 32 H3 3 M4343 M5343 M6343 M7343
M8 1.0 D5 3 N3375 O3375 1/4 20 — H5 3 M4405 M5405 M6405 M7405
M10 1.5 D6 3 N3426 O3426 1/4 — 28 H4 3 M4424 M5424 M6424 M7424
M10 1.25 D5 3 N3435 O3435 5/16 18 — H5 3 M4445 M5445 M6445 M7445
M12 1.75 D6 3 N3506 O3506 5/16 — 24 H4 3 M4464 M5464 M6464 M7464
M12 1.25 D5 3 N3525 O3525 3/8 16 — H5 3 M4485 M5485 M6485 M7485
M14 2.0 D7 3 N3547 O3547 3/8 — 24 H4 3 M4504 M5504 M6504 M7504
M14 1.5 D6 3 N3556 O3556 7/16 14 — H5 3 M4525 M5525 M6525 M7525
M16 2.0 D7 3 N3607 O3607 7/16 — 20 H5 3 M4545 M5545 M6545 M7545
M16 1.5 D6 3 N3616 O3616 1/2 13 — H5 3 M4565 M5565 M6565 M7565
M18 2.5 D7 3 N3657 O3657 1/2 — 20 H5 3 M4585 M5585 M6585 M7585
M18 1.5 D6 3 N3676 O3676 9/16 12 — H5 3 M4605 M5605 M6605 M7605
9/16 — 18 H5 3 M4625 M5625 M6625 M7625
▶Refer to technical data on page 520~554.
5/8 11 — H5 3 M4645 M5645 M6645 M7645
5/8 — 18 H5 3 M4665 M5665 M6665 M7665
3/4 10 — H5 3 M4705 M5705 M6705 M7705
3/4 — 16 H5 3 M4725 M5725 M6725 M7725
▶Refer to technical data on page 520~554.

◎ : Excellent ○: Good ◎ : Excellent ○: Good
P M K P M K
Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey
Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron
carbon steels Low alloyed steels Valve stainless steels stainless steels carbon steels Low alloyed steels Valve stainless steels stainless steels
~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19 ~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19
(~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220) (~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220)
○ ◎ ◎ ◎ ◎ ○ ◎ ○ ◎
K N S K N S
Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718 Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718
Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium
Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286 Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286
~HRc24 (~HB250) ~HRc24 (~HB250)
○ ○ ○ ○ ○ ◎ ○ ○ ○
