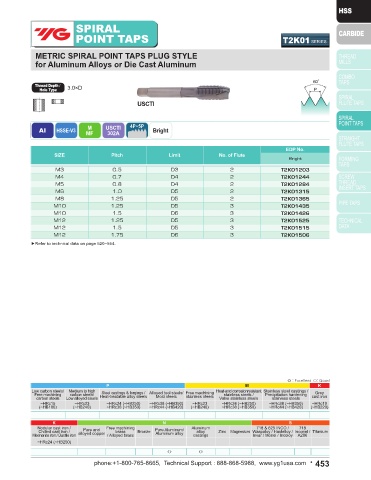

Page 453 - YG 2019

SPIRAL SPIRAL
POINT TAPS T2496 SERIES POINT TAPS T2K01 SERIES

SPIRAL POINT TAPS PLUG STYLE METRIC SPIRAL POINT TAPS PLUG STYLE
for Aluminum Alloys or Die Cast Aluminum for Aluminum Alloys or Die Cast Aluminum

Thread Depth / 3.0×D Thread Depth / 3.0×D
Hole Type Hole Type

USCTI USCTI

M
AI HSSE-V3 UNC USCTI 4P~5P Bright AI HSSE-V3 MF USCTI 4P~5P Bright
UNF
302A
302A
Thread Per Inch EDP No. EDP No.
SIZE Limit No. of Flute SIZE Pitch Limit No. of Flute
UNC UNF Bright Bright
#4 40 — H2 2 T2496162 M3 0.5 D3 2 T2K01203
#4 40 — H3 2 T2496163 M4 0.7 D4 2 T2K01244
#6 32 — H2 2 T2496242 M5 0.8 D4 2 T2K01284
#6 32 — H3 2 T2496243 M6 1.0 D5 2 T2K01315
#8 32 — H2 2 T2496282
#8 32 — H3 2 T2496283 M8 1.25 D5 2 T2K01365
#10 24 — H3 2 T2496323 M10 1.25 D5 3 T2K01435
#10 — 32 H2 2 T2496342 M10 1.5 D6 3 T2K01426
#10 — 32 H3 2 T2496343 M12 1.25 D5 3 T2K01525
#10 — 32 H5 2 T2496345 M12 1.5 D5 3 T2K01515
1/4 20 — H3 2 T2496403 M12 1.75 D6 3 T2K01506
1/4 20 — H5 2 T2496405
1/4 — 28 H3 2 T2496423 ▶Refer to technical data on page 520~554.
5/16 18 — H3 2 T2496443
5/16 18 — H5 2 T2496445
5/16 — 24 H3 2 T2496463
5/16 — 24 H5 2 T2496465
3/8 16 — H3 3 T2496483
3/8 16 — H5 3 T2496485
3/8 — 24 H3 3 T2496503
3/8 — 24 H5 3 T2496505
1/2 13 — H3 3 T2496563
1/2 13 — H5 3 T2496565
1/2 — 20 H3 3 T2496583
5/8 11 — H3 3 T2496643
5/8 — 18 H3 3 T2496663
3/4 10 — H3 3 T2496703
3/4 — 16 H3 3 T2496723
7/8 9 — H4 3 T2496744
7/8 — 14 H4 3 T2496764
1 1 — H4 3 T2496784
▶Refer to technical data on page 520~554.

◎ : Excellent ○: Good ◎ : Excellent ○: Good
P M K P M K
Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey
Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron
carbon steels Low alloyed steels Valve stainless steels stainless steels carbon steels Low alloyed steels Valve stainless steels stainless steels
~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19 ~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19
(~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220) (~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220)
K N S K N S
Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718 Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718
Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium
Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286 Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286
~HRc24 (~HB250) ~HRc24 (~HB250)
◎ ◎ ◎ ◎
452 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 453
