SELECTION GUIDE STRAIGHT T0C01 SERIES
FLUTE TAPS

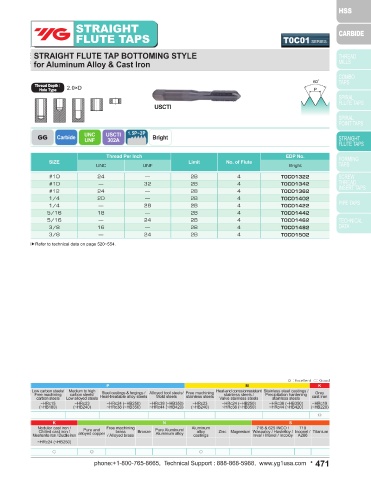

STRAIGHT FLUTE TAPS STRAIGHT FLUTE TAP BOTTOMING STYLE
Tapping Through & Blind Holes / Carbide, Super HSS & HSS for Aluminum Alloy & Cast Iron

Thread Depth / 2.0×D
INCH/METRIC Hole Type
Tool Work Thread Surface
EDP No. MODEL Standard Dimensions Tolerance Chamfer Page
Material Material Depth Treatment USCTI
T0C01 Carbide UNC/UNF GG USCTI 302A 2B 1.5 ~ 2P Bright 471

UNC/UNF GG H 2 ~ 3P GG Carbide UNC USCTI 1.5P~2P Bright
TR Super HSS USCTI 302A TiAlN 472 UNF 302A
M/MF GG D 2 ~ 3P

UNC/UNF GG H 2 ~ 3P Thread Per Inch EDP No.
TR-A, TR-R Super HSS USCTI 302A TiAlN 474 SIZE UNC UNF Limit No. of Flute Bright
M/MF GG D 2 ~ 3P #10 24 — 2B 4 T0C01322
#10 — 32 2B 4 T0C01342
T7316/T6316/ UNC/ Bright #12 24 — 2B 4 T0C01362
T8316/T7A16/ HSS UNF/ GS USCTI 302 H 9P/5P/2P Steam Oxide 476 1/4 20 — 2B 4 T0C01402
T7B16 UNS TiN 1/4 — 28 2B 4 T0C01422
5/16 18 — 2B 4 T0C01442
2.0D
T7315/T6315/ Bright 5/16 — 24 2B 4 T0C01462
T8315 HSS M/MF GS USCTI 302 D 9P/5P/2P Steam Oxide 482 3/8 16 — 2B 4 T0C01482
TiN
3/8 — 24 2B 4 T0C01502
+.005"
T7326 HSS UNC/UNF GS USCTI 302 oversize 5P/2P Bright 483 ▶Refer to technical data on page 520~554.

T7B15 HSS M/MF GS USCTI 302 +.127mm 5P/2P Bright 484
oversize
USCTI 302
T7336 HSS UNC/UNF GS (Left Hand) H 5P/2P Bright 485
USCTI 302
T7A15 HSS UNC/UNF GS (Left Hand) D 5P/2P Bright 486

T7616/T6616/ USCTI Bright
T8616 HSS UNC/UNF GS Long Shank H 4 ~ 5P Steam Oxide 487
TiN

◎ : Excellent ○: Good
P M K
Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey
Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron
carbon steels Low alloyed steels Valve stainless steels stainless steels
~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19
(~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220)
◎
K N S
Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718
Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium
Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286
~HRc24 (~HB250)
○ ◎ ○
