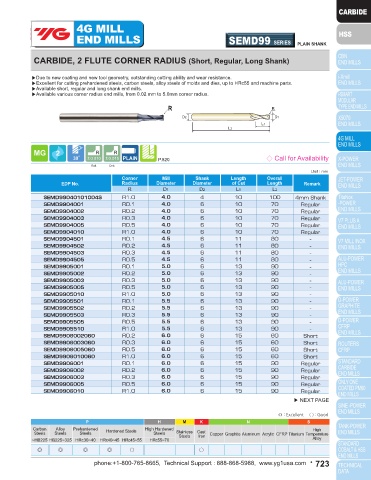

4G MILL 4G MILL
END MILLS SEMD99 SERIES PLAIN SHANK END MILLS SEMD99 SERIES PLAIN SHANK

CARBIDE, 2 FLUTE CORNER RADIUS (Short, Regular, Long Shank) CARBIDE, 2 FLUTE CORNER RADIUS (Short, Regular, Long Shank)

▶Due to new coating and new tool geometry, outstanding cutting ability and wear resistance. ▶Due to new coating and new tool geometry, outstanding cutting ability and wear resistance.
▶Excellent for cutting prehardened steels, carbon steels, alloy steels of molds and dies, up to HRc55 and machine parts. ▶Excellent for cutting prehardened steels, carbon steels, alloy steels of molds and dies, up to HRc55 and machine parts.
▶Available short, regular and long shank end mills. ▶Available short, regular and long shank end mills.
▶Available various corner radius end mills, from 0.02 mm to 5.0mm corner radius. ▶Available various corner radius end mills, from 0.02 mm to 5.0mm corner radius.

R R R R
↙ ↙
D2 D1 D2 D1
L1 L1
L2 L2

P.820 ◇ Call for Availability P.820 ◇ Call for Availability
R≤6 D>6 R≤6 D>6
Unit : mm Unit : mm
Corner Mill Shank Length Overall Corner Mill Shank Length Overall
EDP No. Radius Diameter Diameter of Cut Length Remark EDP No. Radius Diameter Diameter of Cut Length Remark
R D1 D2 L1 L2 R D1 D2 L1 L2
SEMD9901502 R0.2 1.5 6 4 50 - SEMD99040101004S R1.0 4.0 4 10 100 4mm Shank
SEMD9901503 R0.3 1.5 6 4 50 - SEMD9904001 R0.1 4.0 6 10 70 Regular
SEMD9901505 R0.5 1.5 6 4 50 - SEMD9904002 R0.2 4.0 6 10 70 Regular
SEMD9902001 R0.1 2.0 6 6 50 - SEMD9904003 R0.3 4.0 6 10 70 Regular
SEMD9902002 R0.2 2.0 6 6 50 - SEMD9904005 R0.5 4.0 6 10 70 Regular
SEMD9902003 R0.3 2.0 6 6 50 - SEMD9904010 R1.0 4.0 6 10 70 Regular
SEMD9902005 R0.5 2.0 6 6 50 - SEMD9904501 R0.1 4.5 6 11 80 -
SEMD9902501 R0.1 2.5 6 7 60 - SEMD9904502 R0.2 4.5 6 11 80 -
SEMD9902502 R0.2 2.5 6 7 60 - SEMD9904503 R0.3 4.5 6 11 80 -
SEMD9902503 R0.3 2.5 6 7 60 - SEMD9904505 R0.5 4.5 6 11 80 -
SEMD9902505 R0.5 2.5 6 7 60 - SEMD9905001 R0.1 5.0 6 13 90 -
SEMD9903001 R0.1 3.0 6 8 60 - SEMD9905002 R0.2 5.0 6 13 90 -
SEMD9903002 R0.2 3.0 6 8 60 - SEMD9905003 R0.3 5.0 6 13 90 -
SEMD9903003 R0.3 3.0 6 8 60 - SEMD9905005 R0.5 5.0 6 13 90 -
SEMD9903005 R0.5 3.0 6 8 60 - SEMD9905010 R1.0 5.0 6 13 90 -
SEMD9903010 R1.0 3.0 6 8 60 - SEMD9905501 R0.1 5.5 6 13 90 -
SEMD9903501 R0.1 3.5 6 10 70 - SEMD9905502 R0.2 5.5 6 13 90 -
SEMD9903502 R0.2 3.5 6 10 70 - SEMD9905503 R0.3 5.5 6 13 90 -
SEMD9903503 R0.3 3.5 6 10 70 - SEMD9905505 R0.5 5.5 6 13 90 -
SEMD9903505 R0.5 3.5 6 10 70 - SEMD9905510 R1.0 5.5 6 13 90 -
SEMD99040014S R0.1 4.0 4 10 70 4mm Shank SEMD9906002060 R0.2 6.0 6 15 60 Short
SEMD99040024S R0.2 4.0 4 10 70 4mm Shank SEMD9906003060 R0.3 6.0 6 15 60 Short
SEMD99040034S R0.3 4.0 4 10 70 4mm Shank SEMD9906005060 R0.5 6.0 6 15 60 Short
SEMD99040054S R0.5 4.0 4 10 70 4mm Shank SEMD9906010060 R1.0 6.0 6 15 60 Short
SEMD99040104S R1.0 4.0 4 10 70 4mm Shank SEMD9906001 R0.1 6.0 6 15 90 Regular
SEMD99040011004S R0.1 4.0 4 10 100 4mm Shank SEMD9906002 R0.2 6.0 6 15 90 Regular
SEMD99040021004S R0.2 4.0 4 10 100 4mm Shank SEMD9906003 R0.3 6.0 6 15 90 Regular
SEMD99040031004S R0.3 4.0 4 10 100 4mm Shank SEMD9906005 R0.5 6.0 6 15 90 Regular
SEMD99040051004S R0.5 4.0 4 10 100 4mm Shank SEMD9906010 R1.0 6.0 6 15 90 Regular
▶ NEXT PAGE ▶ NEXT PAGE

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Steels
Iron
Iron
~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎ ◎ ◎ ○ ○ ◎ ◎ ◎ ◎ ○ ○
