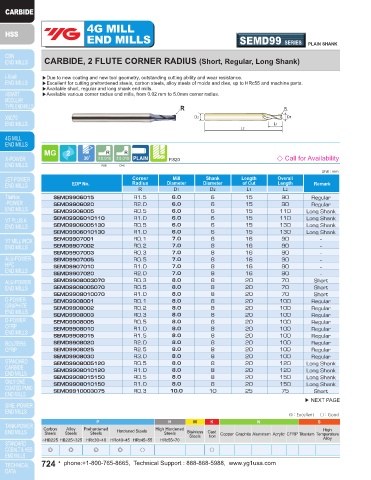

Page 724 - YG 2019

4G MILL 4G MILL
END MILLS SEMD99 SERIES PLAIN SHANK END MILLS SEMD99 SERIES PLAIN SHANK

CARBIDE, 2 FLUTE CORNER RADIUS (Short, Regular, Long Shank) CARBIDE, 2 FLUTE CORNER RADIUS (Short, Regular, Long Shank)

▶Due to new coating and new tool geometry, outstanding cutting ability and wear resistance. ▶Due to new coating and new tool geometry, outstanding cutting ability and wear resistance.
▶Excellent for cutting prehardened steels, carbon steels, alloy steels of molds and dies, up to HRc55 and machine parts. ▶Excellent for cutting prehardened steels, carbon steels, alloy steels of molds and dies, up to HRc55 and machine parts.
▶Available short, regular and long shank end mills. ▶Available short, regular and long shank end mills.
▶Available various corner radius end mills, from 0.02 mm to 5.0mm corner radius. ▶Available various corner radius end mills, from 0.02 mm to 5.0mm corner radius.
R R R R
↙ ↙
D2 D1 D2 D1
L1 L1
L2 L2

P.820 ◇ Call for Availability P.820 ◇ Call for Availability
R≤6 D>6 R≤6 D>6
Unit : mm Unit : mm
Corner Mill Shank Length Overall Corner Mill Shank Length Overall
EDP No. Radius Diameter Diameter of Cut Length Remark EDP No. Radius Diameter Diameter of Cut Length Remark
R D1 D2 L1 L2 R D1 D2 L1 L2
SEMD9906015 R1.5 6.0 6 15 90 Regular SEMD9910005075 R0.5 10.0 10 25 75 Short
SEMD9906020 R2.0 6.0 6 15 90 Regular SEMD9910010075 R1.0 10.0 10 25 75 Short
SEMD9906005 R0.5 6.0 6 15 110 Long Shank SEMD9910001 R0.1 10.0 10 25 100 Regular
SEMD9906010110 R1.0 6.0 6 15 110 Long Shank SEMD9910002 R0.2 10.0 10 25 100 Regular
SEMD9906005130 R0.5 6.0 6 15 130 Long Shank SEMD9910003 R0.3 10.0 10 25 100 Regular
SEMD9906010130 R1.0 6.0 6 15 130 Long Shank SEMD9910005 R0.5 10.0 10 25 100 Regular
SEMD9907001 R0.1 7.0 8 16 90 - SEMD9910010 R1.0 10.0 10 25 100 Regular
SEMD9907002 R0.2 7.0 8 16 90 - SEMD9910015 R1.5 10.0 10 25 100 Regular
SEMD9907003 R0.3 7.0 8 16 90 - SEMD9910020 R2.0 10.0 10 25 100 Regular
SEMD9907005 R0.5 7.0 8 16 90 - SEMD9910025 R2.5 10.0 10 25 100 Regular
SEMD9907010 R1.0 7.0 8 16 90 - SEMD9910030 R3.0 10.0 10 25 100 Regular
SEMD9907020 R2.0 7.0 8 16 90 - SEMD9910040 R4.0 10.0 10 25 100 Regular
SEMD9908003070 R0.3 8.0 8 20 70 Short SEMD9910005130 R0.5 10.0 10 25 130 Long Shank
SEMD9908005070 R0.5 8.0 8 20 70 Short SEMD9910010130 R1.0 10.0 10 25 130 Long Shank
SEMD9908010070 R1.0 8.0 8 20 70 Short SEMD9910005150 R0.5 10.0 10 25 150 Long Shank
SEMD9908001 R0.1 8.0 8 20 100 Regular SEMD9910010150 R1.0 10.0 10 25 150 Long Shank
SEMD9908002 R0.2 8.0 8 20 100 Regular SEMD9911002 R0.2 11.0 12 25 110 -
SEMD9908003 R0.3 8.0 8 20 100 Regular SEMD9911003 R0.3 11.0 12 25 110 -
SEMD9908005 R0.5 8.0 8 20 100 Regular SEMD9911005 R0.5 11.0 12 25 110 -
SEMD9908010 R1.0 8.0 8 20 100 Regular SEMD9911010 R1.0 11.0 12 25 110 -
SEMD9908015 R1.5 8.0 8 20 100 Regular SEMD9911020 R2.0 11.0 12 25 110 -
SEMD9908020 R2.0 8.0 8 20 100 Regular SEMD9912003080 R0.3 12.0 12 30 80 Short
SEMD9908025 R2.5 8.0 8 20 100 Regular SEMD9912005080 R0.5 12.0 12 30 80 Short
SEMD9908030 R3.0 8.0 8 20 100 Regular SEMD9912010080 R1.0 12.0 12 30 80 Short
SEMD9908005120 R0.5 8.0 8 20 120 Long Shank SEMD9912001 R0.1 12.0 12 30 110 Regular
SEMD9908010120 R1.0 8.0 8 20 120 Long Shank SEMD9912002 R0.2 12.0 12 30 110 Regular
SEMD9908015150 R0.5 8.0 8 20 150 Long Shank SEMD9912003 R0.3 12.0 12 30 110 Regular
SEMD9908010150 R1.0 8.0 8 20 150 Long Shank SEMD9912005 R0.5 12.0 12 30 110 Regular
SEMD9910003075 R0.3 10.0 10 25 75 Short SEMD9912010 R1.0 12.0 12 30 110 Regular
▶ NEXT PAGE ▶ NEXT PAGE

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Steels
Iron
Iron
~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎ ◎ ◎ ○ ○ ◎ ◎ ◎ ◎ ○ ○
