4G MILL 4G MILL

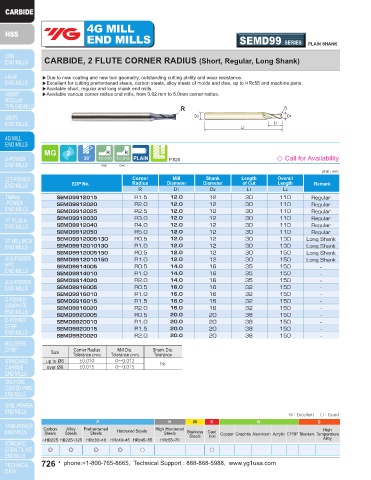

END MILLS SEMD99 SERIES PLAIN SHANK END MILLS SEME61 SERIES PLAIN SHANK
CARBIDE, 2 FLUTE CORNER RADIUS (Short, Regular, Long Shank) CARBIDE, 2 FLUTE LONG NECK CORNER RADIUS
▶Due to new coating and new tool geometry, outstanding cutting ability and wear resistance. ▶Due to new coating and new tool geometry, outstanding cutting ability and wear resistance.
▶Excellent for cutting prehardened steels, carbon steels, alloy steels of molds and dies, up to HRc55 and machine parts. ▶Excellent for cutting prehardened steels, carbon steels, alloy steels of molds and dies, up to HRc55 and machine parts.
▶Available short, regular and long shank end mills. ▶Available various products like regular length and long shank end mills etc.
▶Available various corner radius end mills, from 0.02 mm to 5.0mm corner radius. ▶Available various corner radius end mills, from min. 0.02mm corner radius to max. 2.0 mm corner radius.
▶Available more various effective length and overall length end mills than previous standard products.
R R R
↙ ↙ R D3
D2 D1
D2 D1
L1
L2 L1
L3
L2
P.820 ◇ Call for Availability P.821~823 ◇ Call for Availability
R≤6 D>6 R≤6 D>6
Unit : mm Corner Mill Shank Length Length Overall Neck Unit : mm
Corner Mill Shank Length Overall EDP No. Radius Diameter Diameter of Cut Below Shank Length Diameter Remark
EDP No. Radius Diameter Diameter of Cut Length Remark R D1 D2 L1 L3 L2 D3
R D1 D2 L1 L2
SEME61002002005 R0.02 0.2 4 0.3 0.5 40 0.17 -
SEMD9912015 R1.5 12.0 12 30 110 Regular SEME6100200201 R0.02 0.2 4 0.3 1 40 0.17 -
SEMD9912020 R2.0 12.0 12 30 110 Regular SEME61002002015 R0.02 0.2 4 0.3 1.5 40 0.17 -
SEMD9912025 R2.5 12.0 12 30 110 Regular
2
SEMD9912030 R3.0 12.0 12 30 110 Regular SEME6100200202 R0.02 0.2 4 0.3 0.5 40 0.17 - -
0.2
SEME61002005005
R0.05
4
40
0.17
0.3
SEMD9912040 R4.0 12.0 12 30 110 Regular SEME6100200501 R0.05 0.2 4 0.3 1 40 0.17 -
SEMD9912050 R5.0 12.0 12 30 110 Regular
SEMD9912005130 R0.5 12.0 12 30 130 Long Shank SEME61002005015 R0.05 0.2 4 0.3 1.5 40 0.17 - -
40
0.17
R0.05
4
0.2
SEME6100200502
2
0.3
SEMD9912010130 R1.0 12.0 12 30 130 Long Shank SEME6100300201 R0.02 0.3 4 0.5 1 40 0.27 -
SEMD9912005150 R0.5 12.0 12 30 150 Long Shank
SEMD9912010150 R1.0 12.0 12 30 150 Long Shank SEME6100300202 R0.02 0.3 4 0.5 2 40 0.27 - -
0.5
3
SEME6100300203
0.3
R0.02
4
40
0.27
SEMD9914005 R0.5 14.0 16 35 150 - SEME6100300501 R0.05 0.3 4 0.5 1 40 0.27 -
SEMD9914010 R1.0 14.0 16 35 150 -
SEMD9914020 R2.0 14.0 16 35 150 - SEME6100300502 R0.05 0.3 4 0.5 2 40 0.27 - -
0.3
0.27
R0.05
0.5
3
40
4
SEME6100300503
SEMD9916005 R0.5 16.0 16 32 150 - SEME6100400501 R0.05 0.4 4 0.6 1 40 0.37 -
SEMD9916010 R1.0 16.0 16 32 150 - SEME61004005015 R0.05 0.4 4 0.6 1.5 40 0.37 -
SEMD9916015 R1.5 16.0 16 32 150 - SEME6100400502 R0.05 0.4 4 0.6 2 40 0.37 -
SEMD9916020 R2.0 16.0 16 32 150 - SEME61004005025 R0.05 0.4 4 0.6 2.5 40 0.37 -
SEMD9920005 R0.5 20.0 20 38 150 - SEME6100400503 R0.05 0.4 4 0.6 3 40 0.37 -
SEMD9920010 R1.0 20.0 20 38 150 - SEME6100400504 R0.05 0.4 4 0.6 4 40 0.37 -
SEMD9920015 R1.5 20.0 20 38 150 - SEME610040101 R0.1 0.4 4 0.6 1 40 0.37 -
SEMD9920020 R2.0 20.0 20 38 150 -
SEME6100401015 R0.1 0.4 4 0.6 1.5 40 0.37 -
SEME610040102 R0.1 0.4 4 0.6 2 40 0.37 -
Size Corner Radius Mill Dia. Shank Dia. SEME6100401025 R0.1 0.4 4 0.6 2.5 40 0.37 -
Tolerance (mm) Tolerance (mm) Tolerance
up to Ø6 ±0.010 0~-0.012 SEME610040103 R0.1 0.4 4 0.6 3 40 0.37 -
over Ø6 ±0.015 0~-0.015 h6 SEME610040104 R0.1 0.4 4 0.6 4 40 0.37 -
SEME6100500501 R0.05 0.5 4 0.7 1 45 0.45 -
SEME61005005015 R0.05 0.5 4 0.7 1.5 45 0.45 -
SEME6100500502 R0.05 0.5 4 0.7 2 45 0.45 -
SEME61005005025 R0.05 0.5 4 0.7 2.5 45 0.45 -
▶ NEXT PAGE
◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
Iron
Steels
~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎ ◎ ◎ ○ ○ ◎ ◎ ◎ ◎ ○ ○
