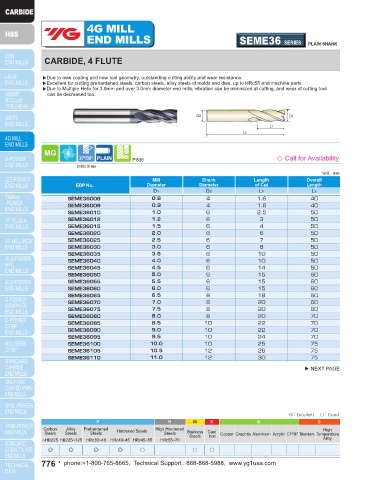

4G MILL 4G MILL
END MILLS SEME36 SERIES PLAIN SHANK END MILLS SEME36 SERIES PLAIN SHANK

CARBIDE, 4 FLUTE CARBIDE, 4 FLUTE

▶Due to new coating and new tool geometry, outstanding cutting ability and wear resistance. ▶Due to new coating and new tool geometry, outstanding cutting ability and wear resistance.
▶Excellent for cutting prehardened steels, carbon steels, alloy steels of molds and dies, up to HRc55 and machine parts. ▶Excellent for cutting prehardened steels, carbon steels, alloy steels of molds and dies, up to HRc55 and machine parts.
▶Due to Multiple Helix for 3.0mm and over 3.0mm diameter end mills, vibration can be minimized at cutting, and wear of cutting tool ▶Due to Multiple Helix for 3.0mm and over 3.0mm diameter end mills, vibration can be minimized at cutting, and wear of cutting tool
can be decreased too. can be decreased too.

D2 D1 D2 D1

L1 L1
L2 L2

27º/30º P.836 ◇ Call for Availability 27º/30º P.836 ◇ Call for Availability
D1<Ø3.0, 30˚ Helix D1<Ø3.0, 30˚ Helix
Unit : mm Unit : mm
Mill Shank Length Overall Mill Shank Length Overall
EDP No. Diameter Diameter of Cut Length EDP No. Diameter Diameter of Cut Length
D1 D2 L1 L2 D1 D2 L1 L2
SEME36008 0.8 4 1.6 40 SEME36115 11.5 12 30 80
SEME36009 0.9 4 1.8 40 SEME36120 12.0 12 30 80
SEME36010 1.0 6 2.5 50 SEME36130 13.0 12 35 100
SEME36012 1.2 6 3 50 SEME3614012S 14.0 12 35 100
SEME36015 1.5 6 4 50 SEME3614014S 14.0 14 35 100
SEME36020 2.0 6 6 50 SEME36140 14.0 16 35 100
SEME36025 2.5 6 7 50 SEME36150 15.0 16 38 100
SEME36030 3.0 6 8 50 SEME36160 16.0 16 40 100
SEME36035 3.5 6 10 50 SEME36170 17.0 16 42 100
SEME36040 4.0 6 10 50 SEME36180 18.0 16 45 100
SEME36045 4.5 6 14 50 SEME3618018S 18.0 18 45 100
SEME36050 5.0 6 15 60 SEME36190 19.0 20 45 100
SEME36055 5.5 6 15 60 SEME36200 20.0 20 45 100
SEME36060 6.0 6 15 60 SEME36210 21.0 20 45 100
SEME36065 6.5 8 18 60 SEME36220 22.0 20 45 100
SEME36070 7.0 8 20 60 SEME36230 23.0 25 50 120
SEME36075 7.5 8 20 60 SEME36240 24.0 25 50 120
SEME36080 8.0 8 20 70 SEME36250 25.0 25 50 120
SEME36085 8.5 10 22 70
SEME36090 9.0 10 22 70 Mill Dia. Shank Dia.
SEME36095 9.5 10 24 70 Tolerance(mm) Tolerance
SEME36100 10.0 10 25 75 0~-0.03 h6
SEME36105 10.5 12 26 75
SEME36110 11.0 12 30 75
▶ NEXT PAGE

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
Iron
Steels
~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎ ◎ ◎ ○ ○ ○ ◎ ◎ ◎ ◎ ○ ○ ○
