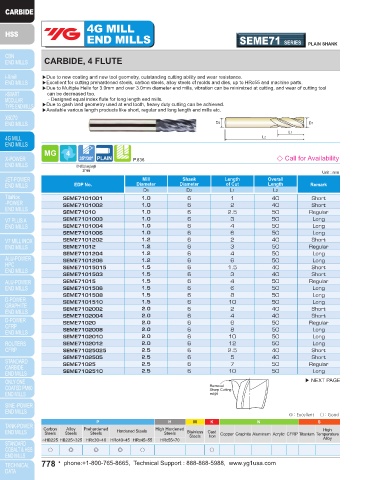

Page 778 - YG 2019

4G MILL 4G MILL
END MILLS SEME71 SERIES PLAIN SHANK END MILLS SEME71 SERIES PLAIN SHANK

CARBIDE, 4 FLUTE CARBIDE, 4 FLUTE

▶Due to new coating and new tool geometry, outstanding cutting ability and wear resistance. ▶Due to new coating and new tool geometry, outstanding cutting ability and wear resistance.
▶Excellent for cutting prehardened steels, carbon steels, alloy steels of molds and dies, up to HRc55 and machine parts. ▶Excellent for cutting prehardened steels, carbon steels, alloy steels of molds and dies, up to HRc55 and machine parts.
▶Due to Multiple Helix for 3.0mm and over 3.0mm diameter end mills, vibration can be minimized at cutting, and wear of cutting tool ▶Due to Multiple Helix for 3.0mm and over 3.0mm diameter end mills, vibration can be minimized at cutting, and wear of cutting tool
can be decreased too. can be decreased too.
- Designed equal index flute for long length end mills. - Designed equal index flute for long length end mills.
▶Due to gash land geometry used at end tooth, heavy duty cutting can be achieved. ▶Due to gash land geometry used at end tooth, heavy duty cutting can be achieved.
▶Available various length products like short, regular and long length end mills etc. ▶Available various length products like short, regular and long length end mills etc.

D2 D1 D2 D1
L1 L1
L2 L2

35º/38º P.836 ◇ Call for Availability 35º/38º P.836 ◇ Call for Availability
D1<Ø3.0, Long Length D1<Ø3.0, Long Length
38˚ Helix Unit : mm 38˚ Helix Unit : mm
Mill Shank Length Overall Mill Shank Length Overall
EDP No. Diameter Diameter of Cut Length Remark EDP No. Diameter Diameter of Cut Length Remark
D1 D2 L1 L2 D1 D2 L1 L2
SEME7101001 1.0 6 1 40 Short SEME7102512 2.5 6 12 50 Long
SEME7101002 1.0 6 2 40 Short SEME7103003 3.0 6 3 40 Short
SEME71010 1.0 6 2.5 50 Regular SEME7103006 3.0 6 6 40 Short
SEME7101003 1.0 6 3 50 Long SEME71030 3.0 6 8 50 Regular
SEME7101004 1.0 6 4 50 Long SEME7103010 3.0 6 10 50 Long
SEME7101006 1.0 6 6 50 Long SEME7103012 3.0 6 12 50 Long
SEME7101202 1.2 6 2 40 Short SEME7103014 3.0 6 14 50 Long
SEME71012 1.2 6 3 50 Regular SEME7104004 4.0 6 4 40 Short
SEME7101204 1.2 6 4 50 Long SEME7104008 4.0 6 8 40 Short
SEME7101206 1.2 6 6 50 Long SEME71040 4.0 6 10 50 Regular
SEME71015015 1.5 6 1.5 40 Short SEME7104012 4.0 6 12 50 Long
SEME7101503 1.5 6 3 40 Short SEME7104014 4.0 6 14 50 Long
SEME71015 1.5 6 4 50 Regular SEME7104016 4.0 6 16 50 Long
SEME7101506 1.5 6 6 50 Long SEME7105005 5.0 6 5 50 Short
SEME7101508 1.5 6 8 50 Long SEME7105010 5.0 6 10 50 Short
SEME7101510 1.5 6 10 50 Long SEME71050 5.0 6 15 60 Regular
SEME7102002 2.0 6 2 40 Short SEME7105020 5.0 6 20 60 Long
SEME7102004 2.0 6 4 40 Short SEME7105025 5.0 6 25 60 Long
SEME71020 2.0 6 6 50 Regular SEME7106006 6.0 6 6 50 Short
SEME7102008 2.0 6 8 50 Long SEME7106012 6.0 6 12 50 Short
SEME7102010 2.0 6 10 50 Long SEME71060 6.0 6 15 60 Regular
SEME7102012 2.0 6 12 50 Long SEME7106020 6.0 6 20 60 Long
SEME71025025 2.5 6 2.5 40 Short SEME7106025 6.0 6 25 60 Long
SEME7102505 2.5 6 5 40 Short SEME7108016 8.0 8 16 60 Short
SEME71025 2.5 6 7 50 Regular SEME71080 8.0 8 20 70 Regular
SEME7102510 2.5 6 10 50 Long SEME7108025 8.0 8 25 70 Long
▶ NEXT PAGE ▶ NEXT PAGE

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
Iron
Steels
~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
○ ◎ ◎ ◎ ○ ○ ○ ◎ ◎ ◎ ○ ○
