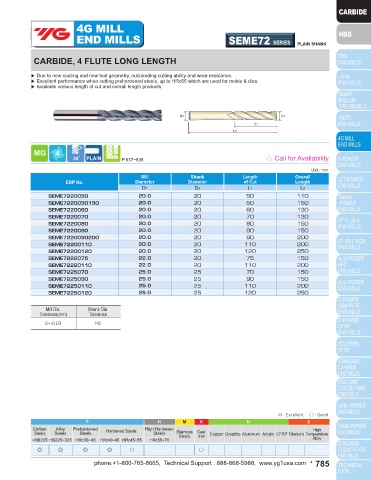

Page 785 - YG 2019

4G MILL 4G MILL
END MILLS SEME72 SERIES PLAIN SHANK END MILLS SEME72 SERIES PLAIN SHANK

CARBIDE, 4 FLUTE LONG LENGTH CARBIDE, 4 FLUTE LONG LENGTH

▶ Due to new coating and new tool geometry, outstanding cutting ability and wear resistance. ▶ Due to new coating and new tool geometry, outstanding cutting ability and wear resistance.
▶ Excellent performance when cutting prehardened steels, up to HRc55 which are used for molds & dies. ▶ Excellent performance when cutting prehardened steels, up to HRc55 which are used for molds & dies.
▶ Available various length of cut and overall length products. ▶ Available various length of cut and overall length products.

D2 D1 D2 D1
L1 L1
L2 L2

P.837~838 ◇ Call for Availability P.837~838 ◇ Call for Availability

Unit : mm Unit : mm
Mill Shank Length Overall Mill Shank Length Overall
EDP No. Diameter Diameter of Cut Length EDP No. Diameter Diameter of Cut Length
D1 D2 L1 L2 D1 D2 L1 L2
SEME7212040 12.0 12 40 100 SEME7220050 20.0 20 50 110
SEME7212040120 12.0 12 40 120 SEME7220050150 20.0 20 50 150
SEME7212045 12.0 12 45 130 SEME7220060 20.0 20 60 130
SEME7212050 12.0 12 50 100 SEME7220070 20.0 20 70 130
SEME7212050150 12.0 12 50 150 SEME7220080 20.0 20 80 150
SEME7212055 12.0 12 55 110 SEME7220090 20.0 20 90 150
SEME7212060 12.0 12 60 110 SEME7220090200 20.0 20 90 200
SEME7212060150 12.0 12 60 150 SEME72200110 20.0 20 110 200
SEME7212060200 12.0 12 60 200 SEME72200120 20.0 20 120 250
SEME7212065 12.0 12 65 150 SEME7222075 22.0 20 75 150
SEME7212070 12.0 12 70 120 SEME72220110 22.0 20 110 200
SEME7212070200 12.0 12 70 200 SEME7225070 25.0 25 70 150
SEME7214050 14.0 16 50 110 SEME7225090 25.0 25 90 150
SEME7214060 14.0 16 60 150 SEME72250110 25.0 25 110 200
SEME7216040 16.0 16 40 150 SEME72250120 25.0 25 120 250
SEME7216050 16.0 16 50 110
SEME7216050150 16.0 16 50 150 Mill Dia. Shank Dia.
SEME7216060 16.0 16 60 120 Tolerance(mm) Tolerance
SEME7216070 16.0 16 70 130 0~-0.03 h6
SEME7216070150 16.0 16 70 150
SEME7216070200 16.0 16 70 200
SEME7216080 16.0 16 80 150
SEME7216090 16.0 16 90 150
SEME72160110 16.0 16 110 200
SEME72160120 16.0 16 120 250
SEME7218050 18.0 20 50 120
SEME7218070 18.0 20 70 130
SEME72180100 18.0 20 100 200
▶ NEXT PAGE

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
Steels
Iron
~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎ ◎ ◎ ○ ○ ◎ ◎ ◎ ◎ ○ ○
