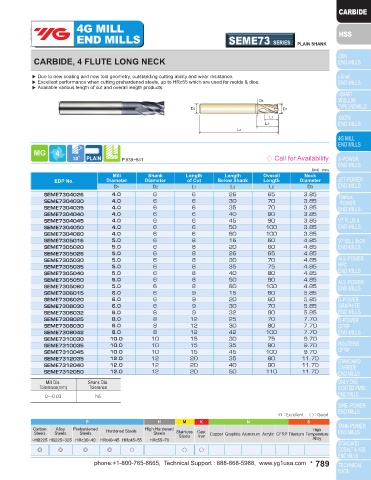

4G MILL 4G MILL
END MILLS SEME73 SERIES PLAIN SHANK END MILLS SEME73 SERIES PLAIN SHANK

CARBIDE, 4 FLUTE LONG NECK CARBIDE, 4 FLUTE LONG NECK

▶ Due to new coating and new tool geometry, outstanding cutting ability and wear resistance. ▶ Due to new coating and new tool geometry, outstanding cutting ability and wear resistance.
▶ Excellent performance when cutting prehardened steels, up to HRc55 which are used for molds & dies. ▶ Excellent performance when cutting prehardened steels, up to HRc55 which are used for molds & dies.
▶ Available various length of cut and overall length products. ▶ Available various length of cut and overall length products.

D3
D3 D2 D1
D2 D1
L1 L1
L3
L2 L3
L2

P.839~841 ◇ Call for Availability P.839~841 ◇ Call for Availability
Unit : mm Unit : mm
Mill Shank Length Length Overall Neck Mill Shank Length Length Overall Neck
EDP No. Diameter Diameter of Cut Below Shank Length Diameter EDP No. Diameter Diameter of Cut Below Shank Length Diameter
D1 D2 L1 L3 L2 D3 D1 D2 L1 L3 L2 D3
SEME7302520 2.5 4 4 20 50 2.40 SEME7304026 4.0 6 6 26 65 3.85
SEME7302522 2.5 4 4 22 60 2.40 SEME7304030 4.0 6 6 30 70 3.85
SEME7302526 2.5 4 4 26 60 2.40 SEME7304035 4.0 6 6 35 70 3.85
SEME7302530 2.5 4 4 30 70 2.40 SEME7304040 4.0 6 6 40 80 3.85
SEME7302535 2.5 4 4 35 70 2.40 SEME7304045 4.0 6 6 45 90 3.85
SEME7302540 2.5 4 4 40 80 2.40 SEME7304050 4.0 6 6 50 100 3.85
SEME7302545 2.5 4 4 45 90 2.40 SEME7304060 4.0 6 6 60 100 3.85
SEME7302550 2.5 4 4 50 100 2.40 SEME7305016 5.0 6 8 16 60 4.85
SEME7303006 3.0 6 4.5 6 50 2.85 SEME7305020 5.0 6 8 20 60 4.85
SEME7303008 3.0 6 4.5 8 50 2.85 SEME7305026 5.0 6 8 26 65 4.85
SEME7303010 3.0 6 4.5 10 50 2.85 SEME7305030 5.0 6 8 30 70 4.85
SEME7303012 3.0 6 4.5 12 50 2.85 SEME7305035 5.0 6 8 35 75 4.85
SEME7303014 3.0 6 4.5 14 60 2.85 SEME7305040 5.0 6 8 40 80 4.85
SEME7303016 3.0 6 4.5 16 60 2.85 SEME7305050 5.0 6 8 50 90 4.85
SEME7303018 3.0 6 4.5 18 60 2.85 SEME7305060 5.0 6 8 60 100 4.85
SEME7303020 3.0 6 4.5 20 60 2.85 SEME7306015 6.0 6 9 15 60 5.85
SEME7303022 3.0 6 4.5 22 65 2.85 SEME7306020 6.0 6 9 20 60 5.85
SEME7303026 3.0 6 4.5 26 65 2.85 SEME7306030 6.0 6 9 30 70 5.85
SEME7303030 3.0 6 4.5 30 70 2.85 SEME7306032 6.0 6 9 32 90 5.85
SEME7303035 3.0 6 4.5 35 70 2.85 SEME7308025 8.0 8 12 25 70 7.70
SEME7303040 3.0 6 4.5 40 80 2.85 SEME7308030 8.0 8 12 30 80 7.70
SEME7303045 3.0 6 4.5 45 90 2.85 SEME7308042 8.0 8 12 42 100 7.70
SEME7303050 3.0 6 4.5 50 100 2.85 SEME7310030 10.0 10 15 30 75 9.70
SEME7303060 3.0 6 4.5 60 100 2.85 SEME7310035 10.0 10 15 35 80 9.70
SEME7304008 4.0 6 6 8 50 3.85 SEME7310045 10.0 10 15 45 100 9.70
SEME7304010 4.0 6 6 10 50 3.85 SEME7312035 12.0 12 20 35 80 11.70
SEME7304012 4.0 6 6 12 50 3.85 SEME7312040 12.0 12 20 40 90 11.70
SEME7304014 4.0 6 6 14 60 3.85 SEME7312050 12.0 12 20 50 110 11.70
SEME7304016 4.0 6 6 16 60 3.85 Mill Dia. Shank Dia.
SEME7304018 4.0 6 6 18 60 3.85 Tolerance(mm) Tolerance
SEME7304020 4.0 6 6 20 60 3.85
SEME7304022 4.0 6 6 22 65 3.85 0~-0.03 h6
▶ NEXT PAGE
◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
Steels
Iron
~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎ ◎ ◎ ○ ○ ○ ◎ ◎ ◎ ◎ ○ ○ ○
